DTC P1217: Engine Over Temperature: Wiring Diagram

For system wiring diagrams, see SYSTEM WIRING DIAGRAMS .

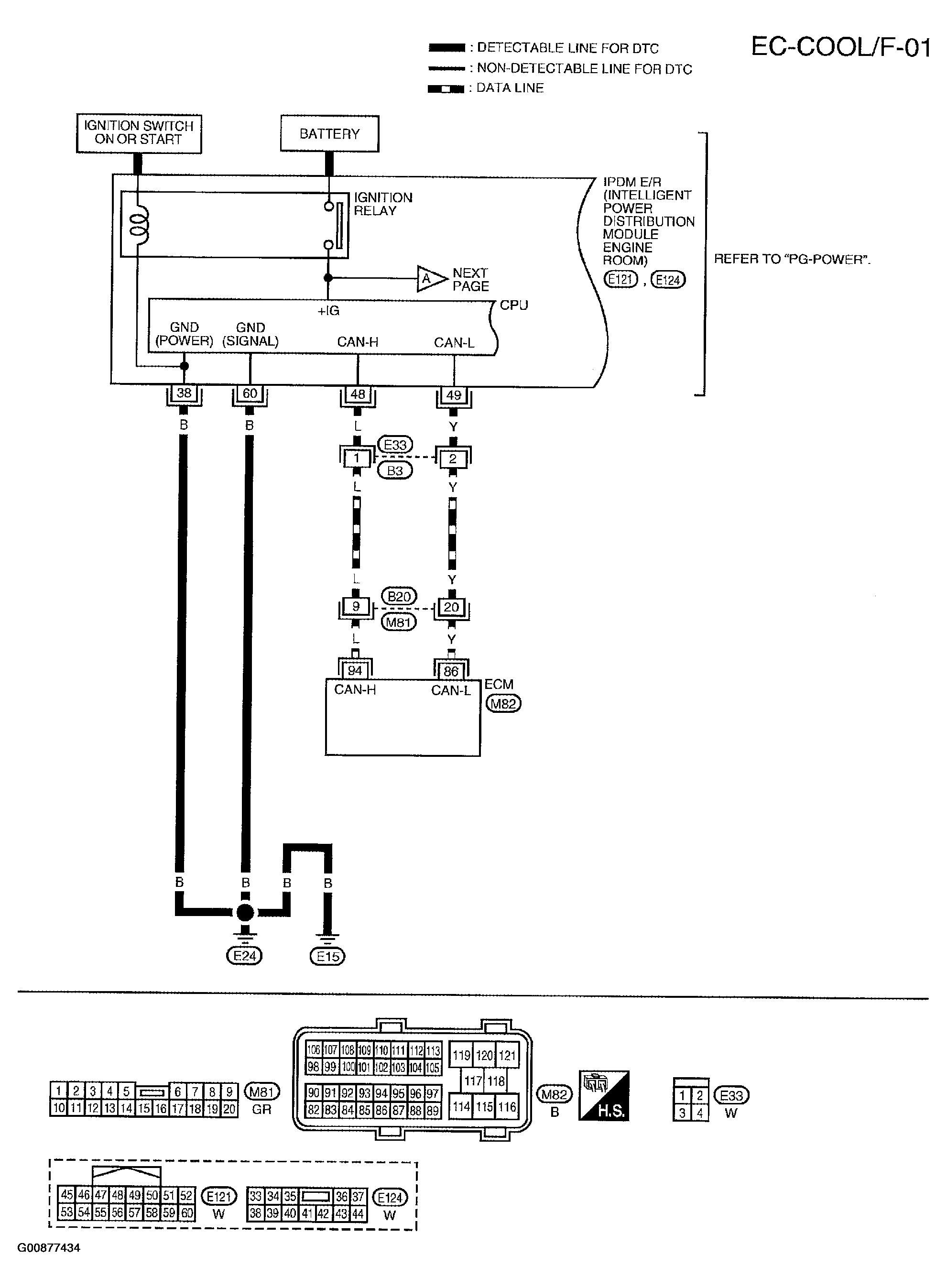

Fig 1: Wiring Diagram (1 Of 2) - EC-COOL/F-01

Courtesy of NISSAN MOTOR CO., U.S.A.

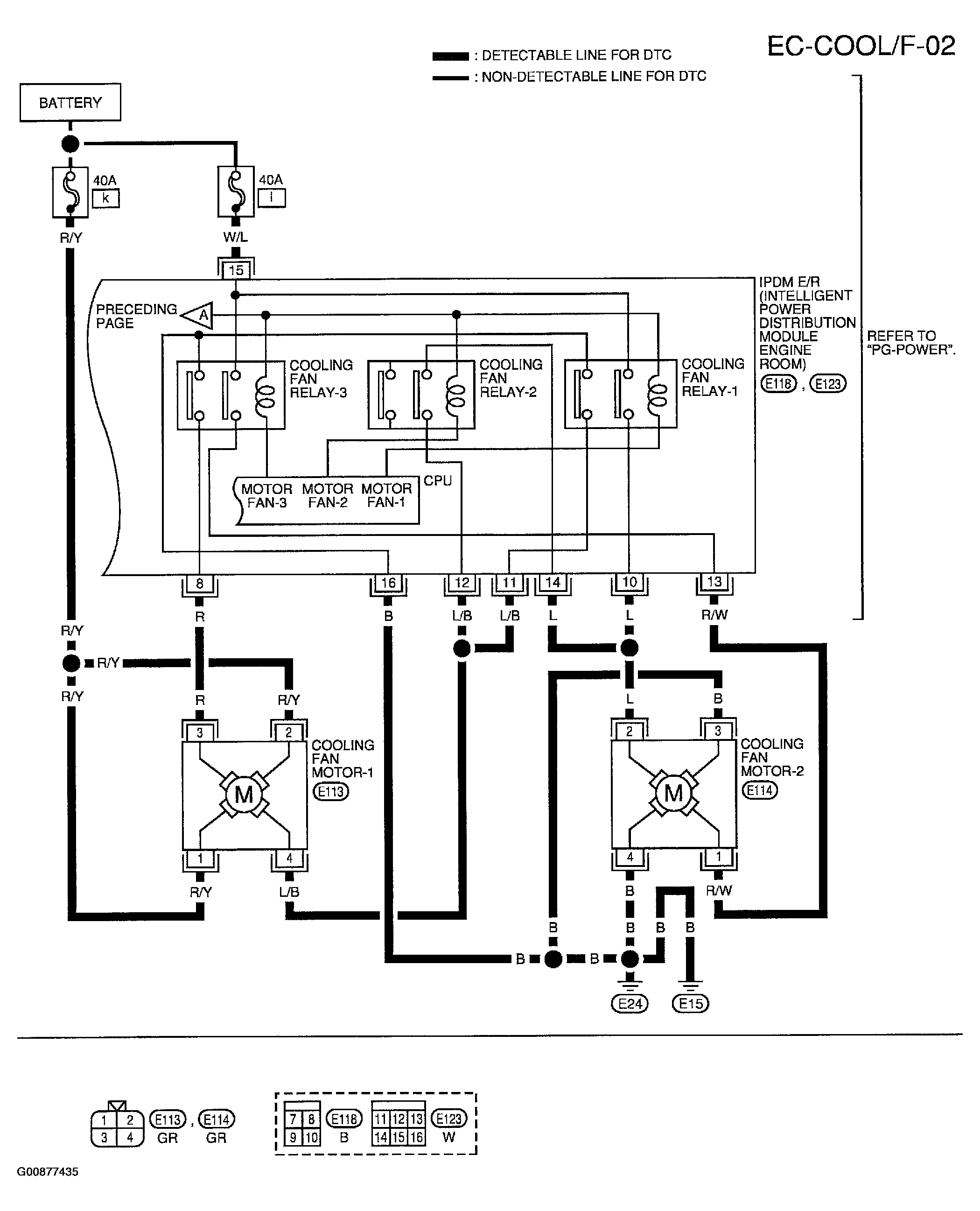

Fig 2: Wiring Diagram (2 Of 2) - EC-COOL/F-02

Courtesy of NISSAN MOTOR CO., U.S.A.
