3. Check ASCD Clutch Switch Circuit

1. Turn ignition switch OFF.
2. Disconnect ASCD brake switch harness connector.
3. Turn ignition switch ON.

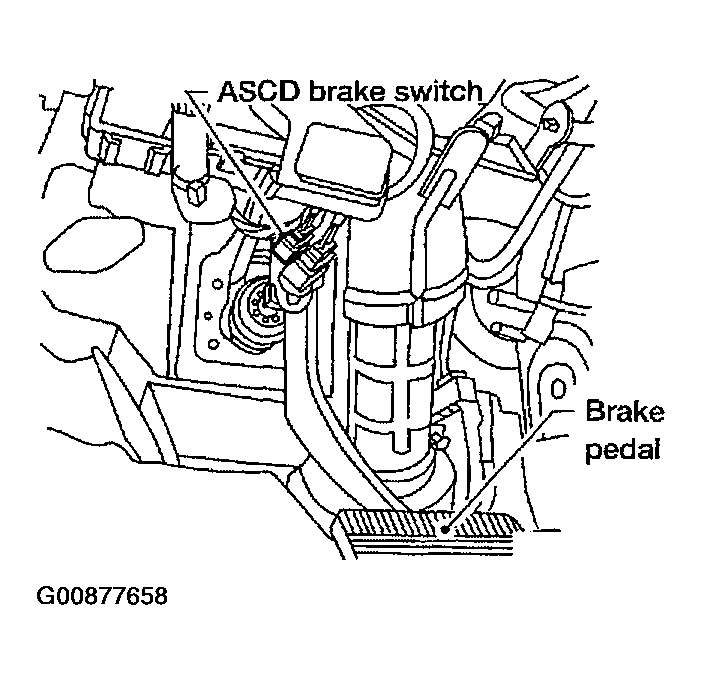

   Fig 1: Locating Brake Pedal Switches

   Courtesy of NISSAN MOTOR CO., U.S.A.
4. Check voltage between ASCD brake switch terminal 1 and ground under the following conditions with CONSULT-II or tester.

Fig 2: Test Parameters

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 3: Check Voltage

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 10 .
2. NG: GO TO 4.
