Nissan-Datsun
>>
2004
>>
Pathfinder LE, RWD
>>
Repair and Diagnosis
>>
Brakes
>>
Traction Control
>>
Brake Control System - Abs
>>
On Board Diagnostic System Description
>>
CONSULT-II Inspection Procedure
>>
Data Monitor Mode
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Data Monitor Mode

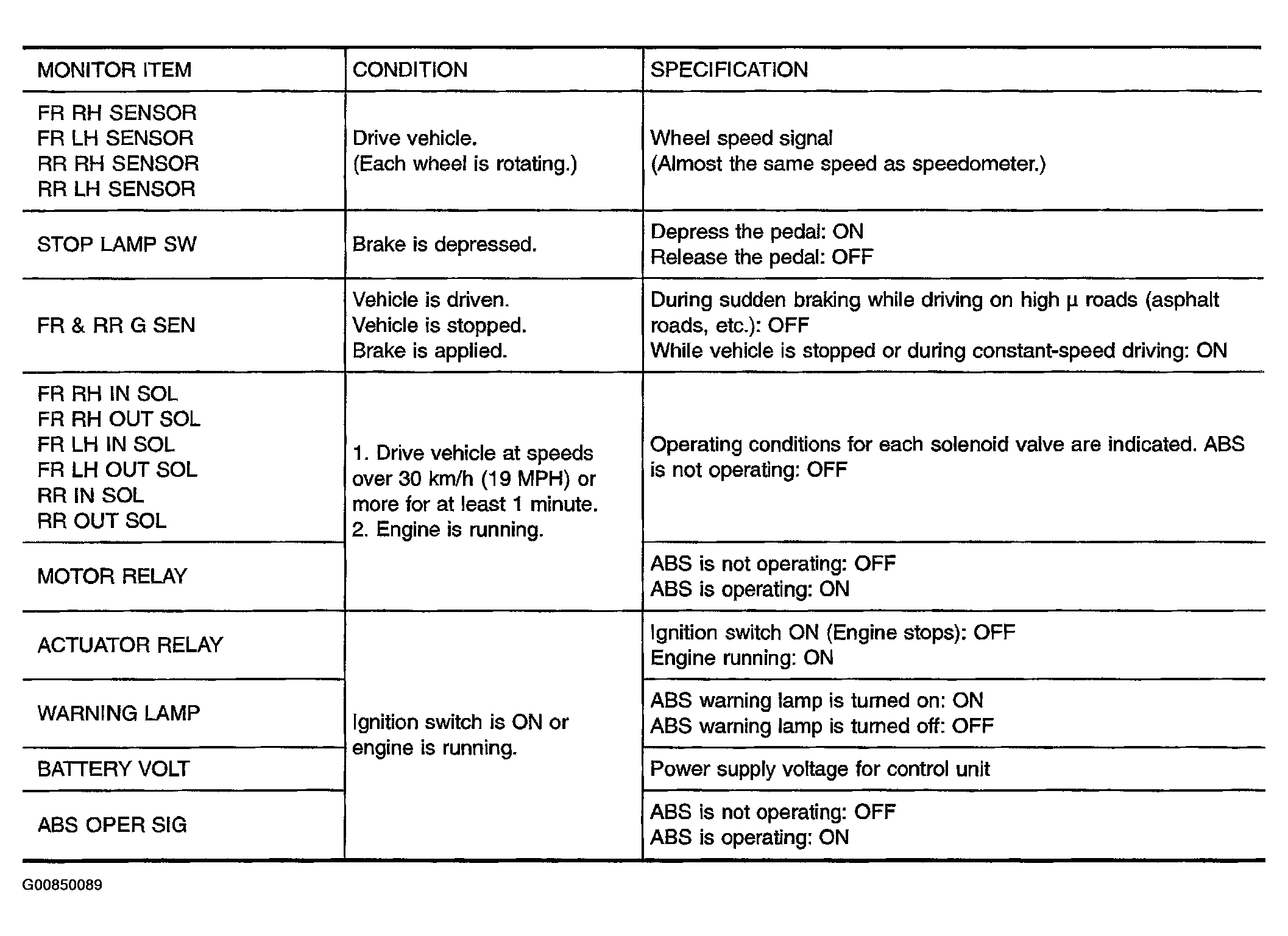

Fig 1: Data Monitor Mode Chart
Courtesy of NISSAN MOTOR CO., U.S.A.
