On Board Diagnosis Logic

Engine coolant temperature has not risen enough to open the thermostat even though the engine has run long enough.

This is due to a leak in the seal or the thermostat open stuck.

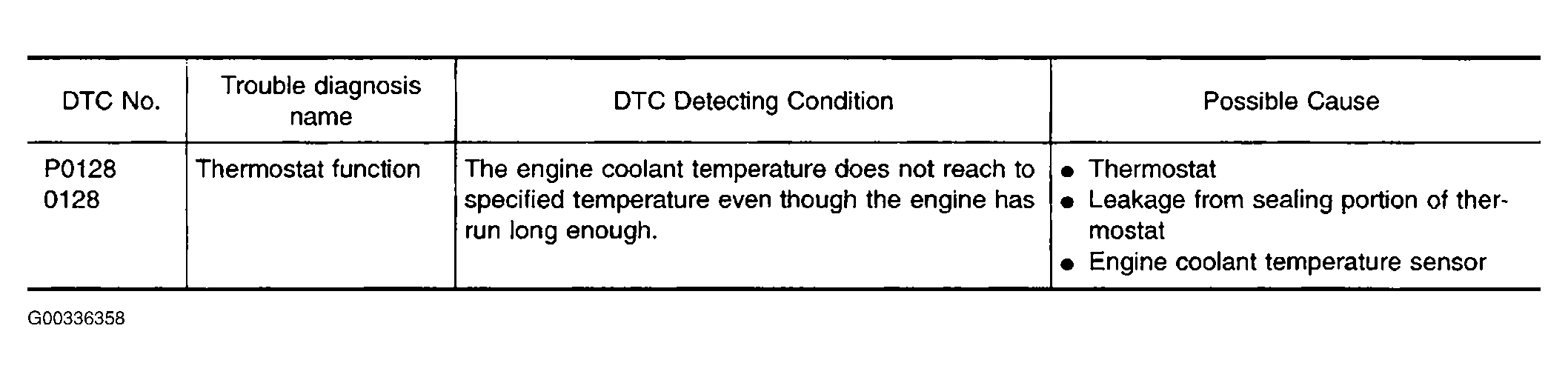

Fig 1: DTC P0128 Diagnostic Chart
G00336358Courtesy of NISSAN MOTOR CO., U.S.A.
