DTC P1124, P1126: Throttle Control Motor Relay: Wiring Diagram

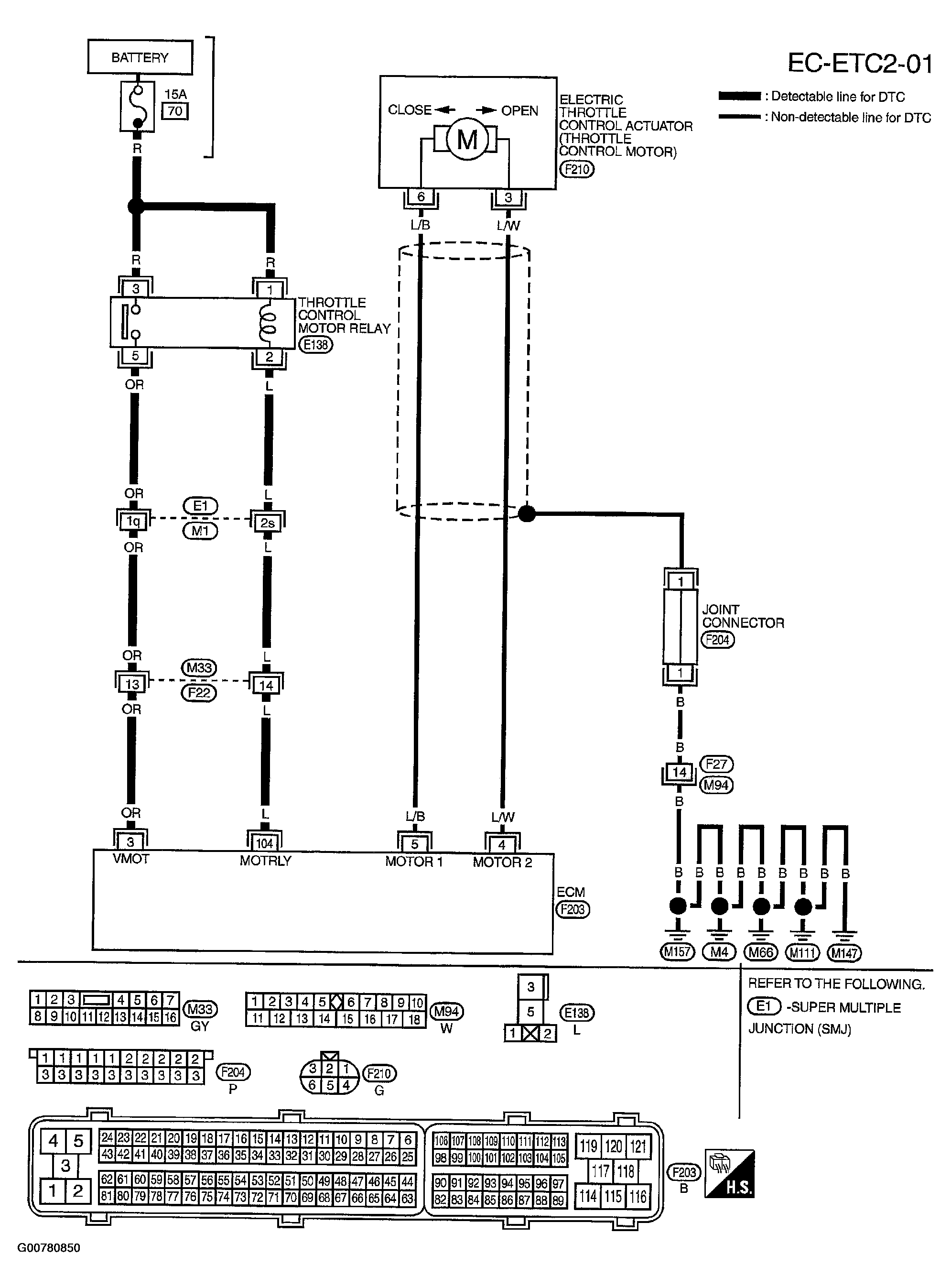

Fig 1: Wiring Diagram
G00780850Courtesy of NISSAN MOTOR CO., U.S.A.
