Procedure C

  1. INSPECTION START

    Do you have CONSULT-II?

    Yes or No

    1. Yes GO TO 2.
    2. No GO TO  3 .
  2. CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE CIRCUIT

    With CONSULT-II

    1. Turn ignition switch "OFF".
    2. Select "SWIRL CONT SOL VALVE" in "ACTIVE TEST" mode with CONSULT-II.
    3. Touch "ON" and "OFF" on CONSULT-II screen.
      Fig 1: SWIRL CONT SOL VALVE Active Test Display
      G00780888Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Make sure that clicking sound is heard from the swirl control valve control solenoid valve.

    OK or NG

    1. OK: GO TO  6 .
    2. NG: GO TO 3.
  3. CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE POWER SUPPLY CIRCUIT
    1. Turn ignition switch "OFF".
    2. Disconnect swirl control valve control solenoid valve harness connector.

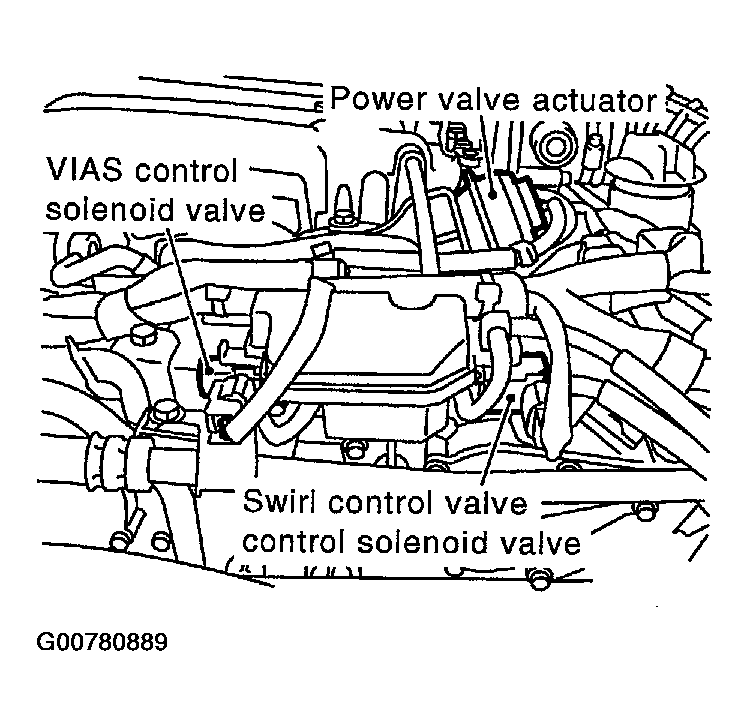

      Fig 2: Identifying Swirl Control Valve Control Solenoid Valve Power Supply Circuit
      G00780889Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Turn ignition switch "ON".
    4. Check voltage between swirl control valve control solenoid valve terminal 1 and ground with CONSULT-II or tester.
      Fig 3: Checking Voltage Between Swirl Control Valve Control Solenoid Valve Terminal 1 And Ground
      G00780890Courtesy of NISSAN MOTOR CO., U.S.A.

      Voltage: Battery voltage

    OK or NG

    1. OK: GO TO  5 .
    2. NG: GO TO 4.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E1, M1
    • Harness connectors M33, F22
    • Harness for open or short between swirl control valve control solenoid valve and ECM relay
    1. Repair open circuit or short to ground or short to power in harness connectors.
  5. CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE OUTPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch "OFF".
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 27 and swirl control valve control solenoid valve terminal 2. Refer to WIRING DIAGRAM  .

      Continuity should exist.

    4. Also, check harness for short to ground and short to power.

    OK or NG

    1. OK: GO TO 6.
    2. NG: Repair open circuit or short to ground or short to power in harness connectors.
  6. CHECK HOSES

    Check hoses and tubes between air cleaner and swirl control valve vacuum check switch for clogging or improper connection.

    Fig 4: Checking Hoses And Tubes
    G00780891Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 7.
    2. NG: Repair hoses or tubes.
  7. CHECK SWIRL CONTROL VALVE CONTROL SOLENOID VALVE

    With CONSULT-II

    1. Reconnect the disconnected harness connectors.
    2. Start engine and let it idle.
    3. Remove vacuum hose connected to swirl control valve actuator.
    4. Select "SWIRL CONT SOL/V" in "ACTIVE TEST" mode with CONSULT-II.
    5. Touch "ON" and "OFF" on CONSULT-II screen.
    6. Check vacuum existence and operation delay time under the following conditions.

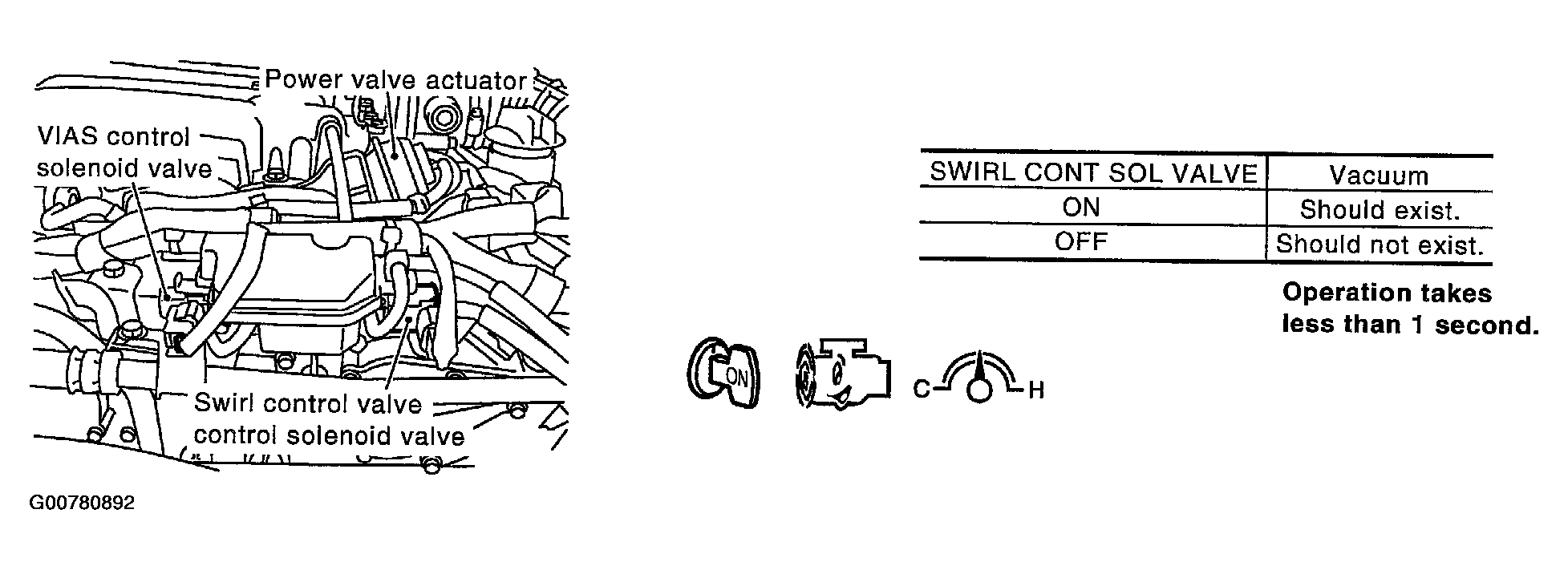

      Fig 5: Identifying Swirl Control Valve Control Solenoid Valve
      G00780892Courtesy of NISSAN MOTOR CO., U.S.A.

      Operation takes less than 1 second.

    Without CONSULT-II

    1. Reconnect ECM harness connector.
    2. Remove vacuum hose connected to swirl control valve actuator.
    3. Start engine and let it idle.
    4. Apply 12V of direct current between swirl control valve control solenoid valve terminals 1 and 2.
    5. Check vacuum existence and operation delay time under the following conditions.

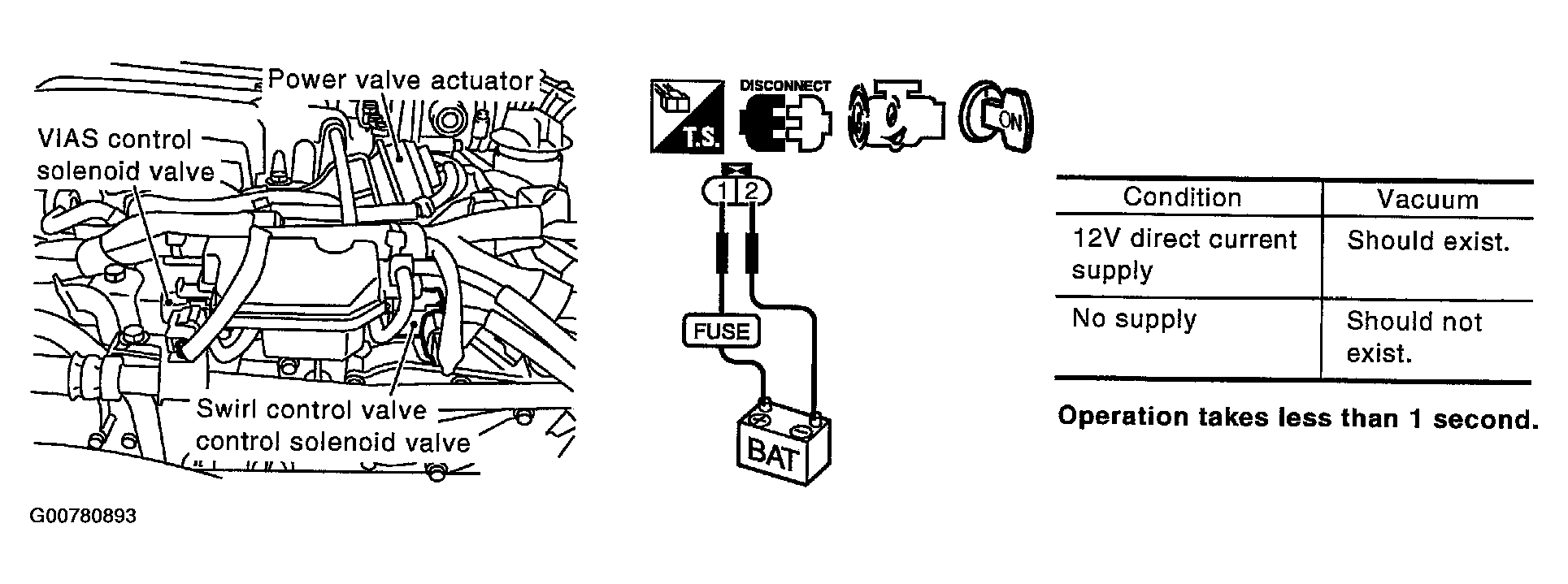

      Fig 6: Applying 12V Of Direct Current Between Swirl Control Valve Control Solenoid Valve Terminals 1 And 2
      G00780893Courtesy of NISSAN MOTOR CO., U.S.A.

      Operation takes less than 1 second.

    OK or NG

    1. OK: GO TO 8.
    2. NG: Replace intake manifold collector assembly.
  8. CHECK SWIRL CONTROL VALVE CONTROL VACUUM CHECK SWITCH
    1. Turn ignition switch "OFF".
    2. Disconnect vacuum hose connected to swirl control valve control vacuum check switch.
    3. Attach vacuum pump to swirl control valve control vacuum check switch.
    4. Turn ignition switch "ON".
    5. Check voltage between ECM terminal 59 and ground under the following conditions.

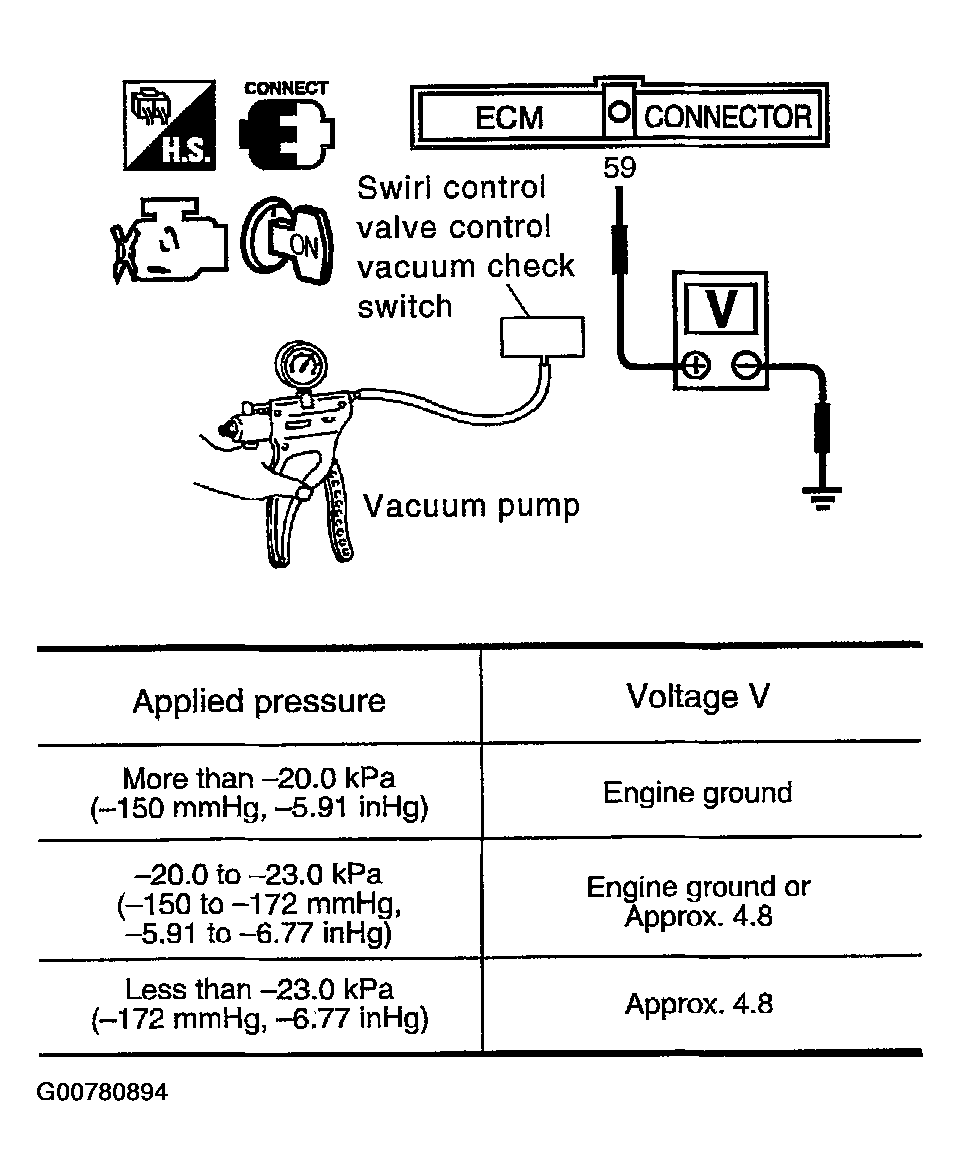

      Fig 7: Checking Voltage Between ECM Terminal 59 And Ground
      G00780894Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    1. OK: GO TO 9.
    2. NG: Replace swirl control valve control vacuum check switch.
  9. CHECK CAMSHAFT POSITION SENSOR (PHASE)

    Refer to "COMPONENT INSPECTION  ".

    OK or NG

    1. OK: GO TO 10.
    2. NG: Replace camshaft position sensor (PHASE).
  10. CHECK THROTTLE POSITION SENSOR

    Refer to "COMPONENT INSPECTION  ".

    OK or NG

    1. OK: GO TO 11.
    2. NG: Replace electric throttle control actuator.
  11. CHECK ACCELERATOR PEDAL POSITION SENSOR

    Refer to "COMPONENT INSPECTION  ".

    OK or NG

    1. OK: GO TO 12.
    2. NG: Replace accelerator pedal assembly.
  12. CHECK INTERMITTENT INCIDENT

    Perform "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT  " .

    1. INSPECTION END
