With GST

  1. Disconnect hose from water separator.
  2. Disconnect EVAP canister vent control valve harness connector.
  3. Verify the following.
    Fig 1: Air Passage Continuity Specification Chart
    G00781105Courtesy of NISSAN MOTOR CO., U.S.A.

    If the result is NG, go to "DIAGNOSTIC PROCEDURE  " .

    If the result is OK, go to "DIAGNOSTIC PROCEDURE  " for DTC P0442 .

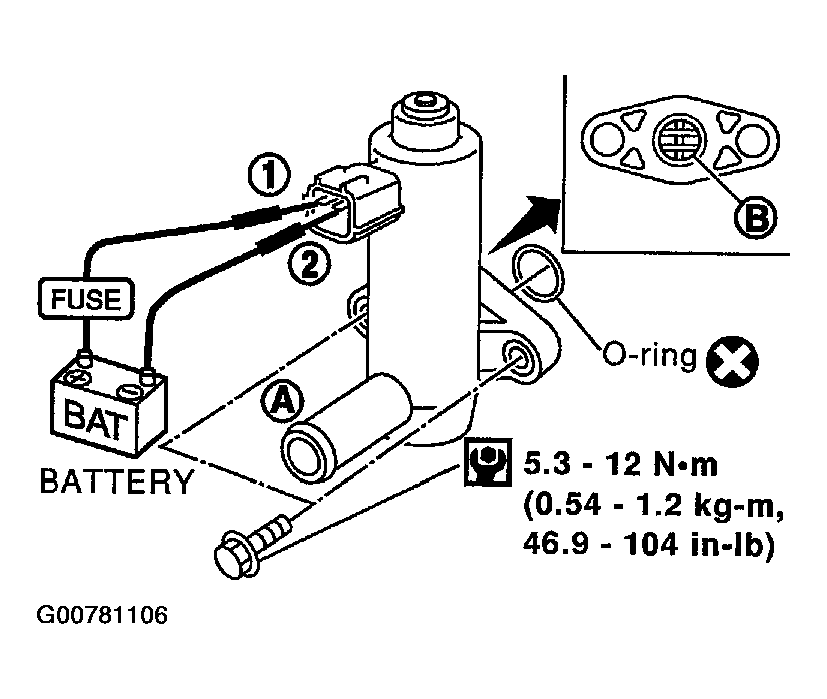

    Fig 2: Checking Overall Function Of EVAP Canister Vent Control Valve Circuit
    G00781106Courtesy of NISSAN MOTOR CO., U.S.A.
