DTC P0405, P0406: EGRT Sensor: Wiring Diagram

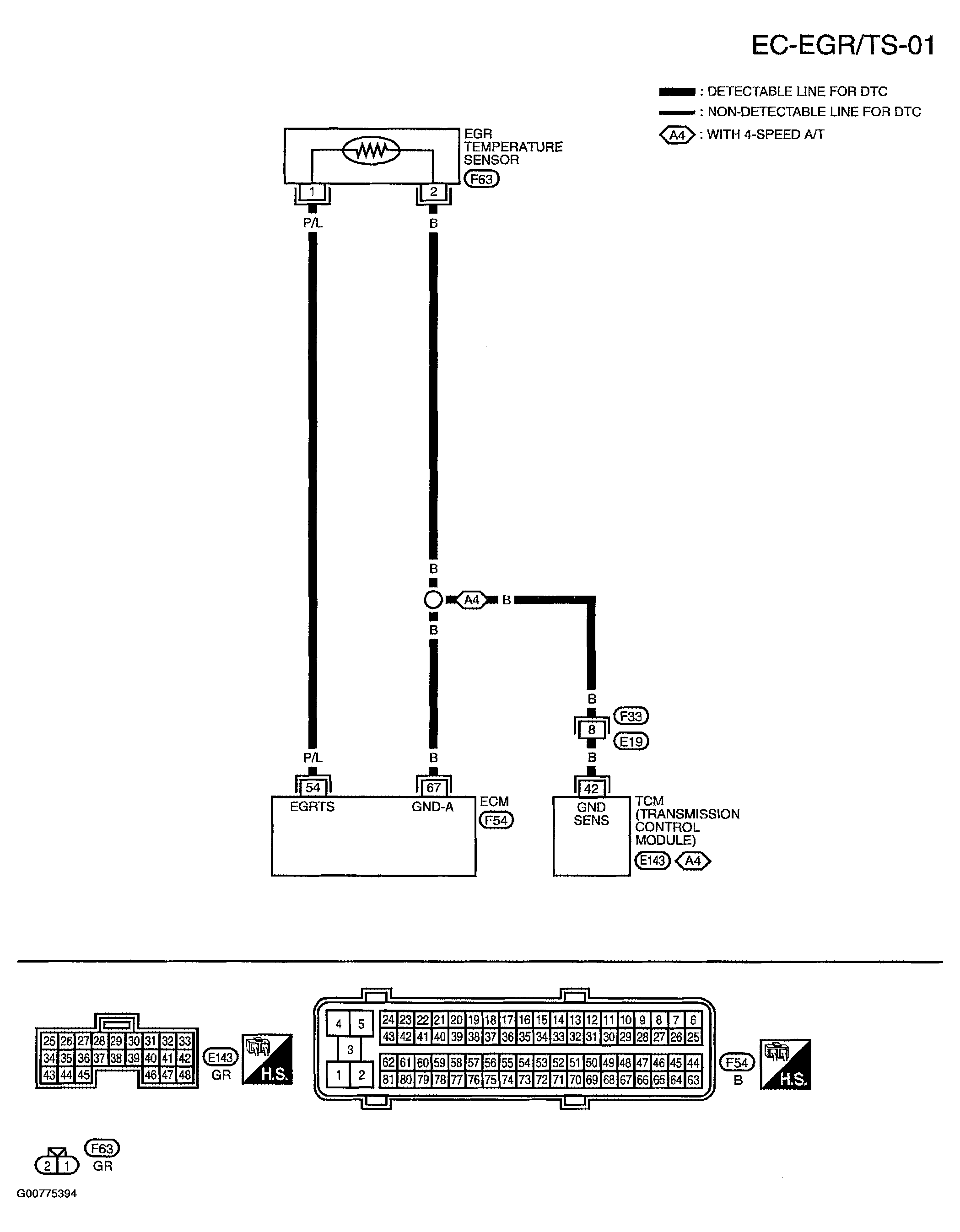

Fig 1: Displaying EC-EGR/TS-01 Wiring Diagram
Courtesy of NISSAN MOTOR CO., U.S.A.
Courtesy of NISSAN MOTOR CO., U.S.A.
