SULEV Models

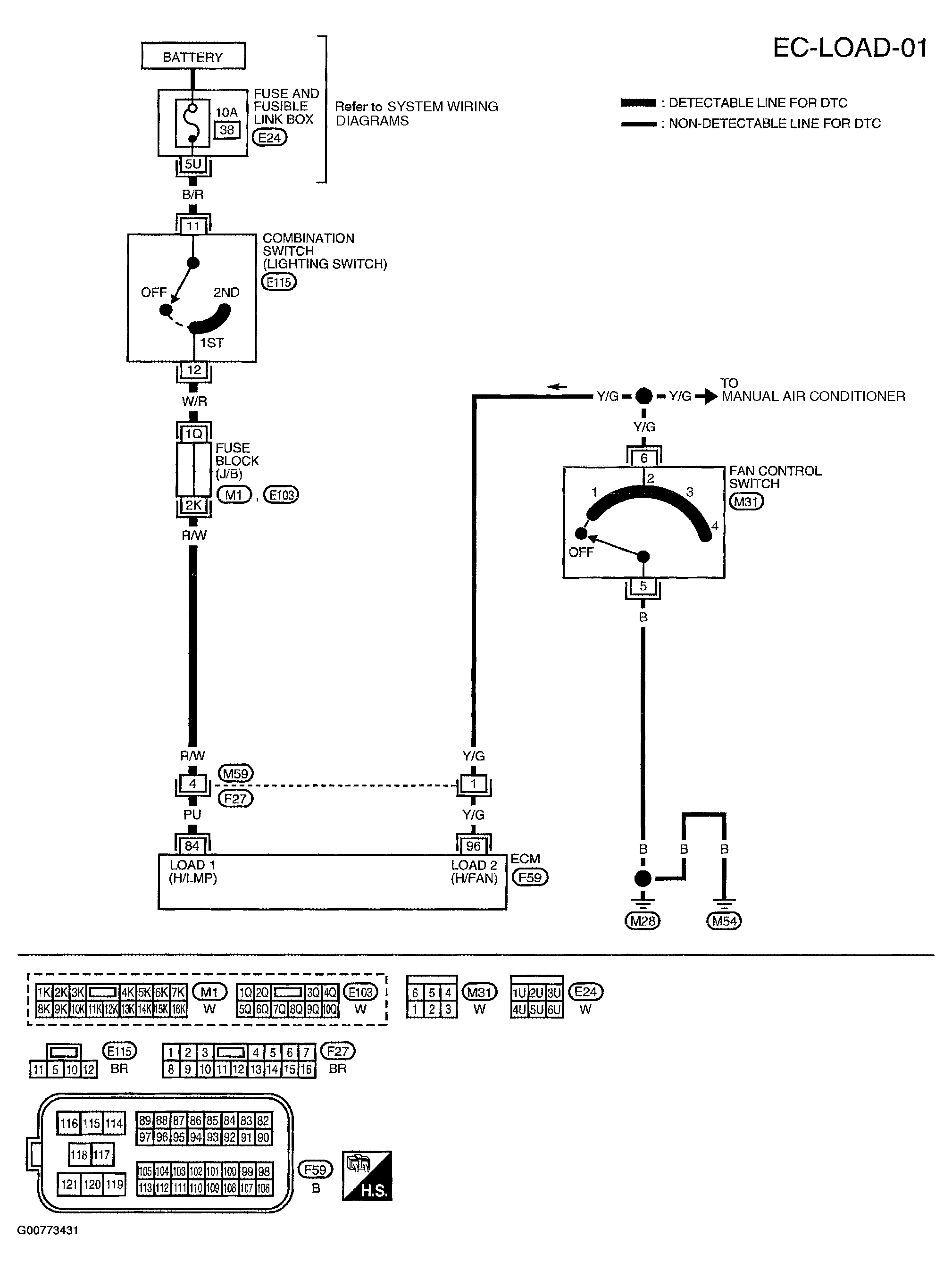

Fig 1: Wiring Diagram - Electrical Load Signal (SULEV Models)
G00773431Courtesy of NISSAN MOTOR CO., U.S.A.

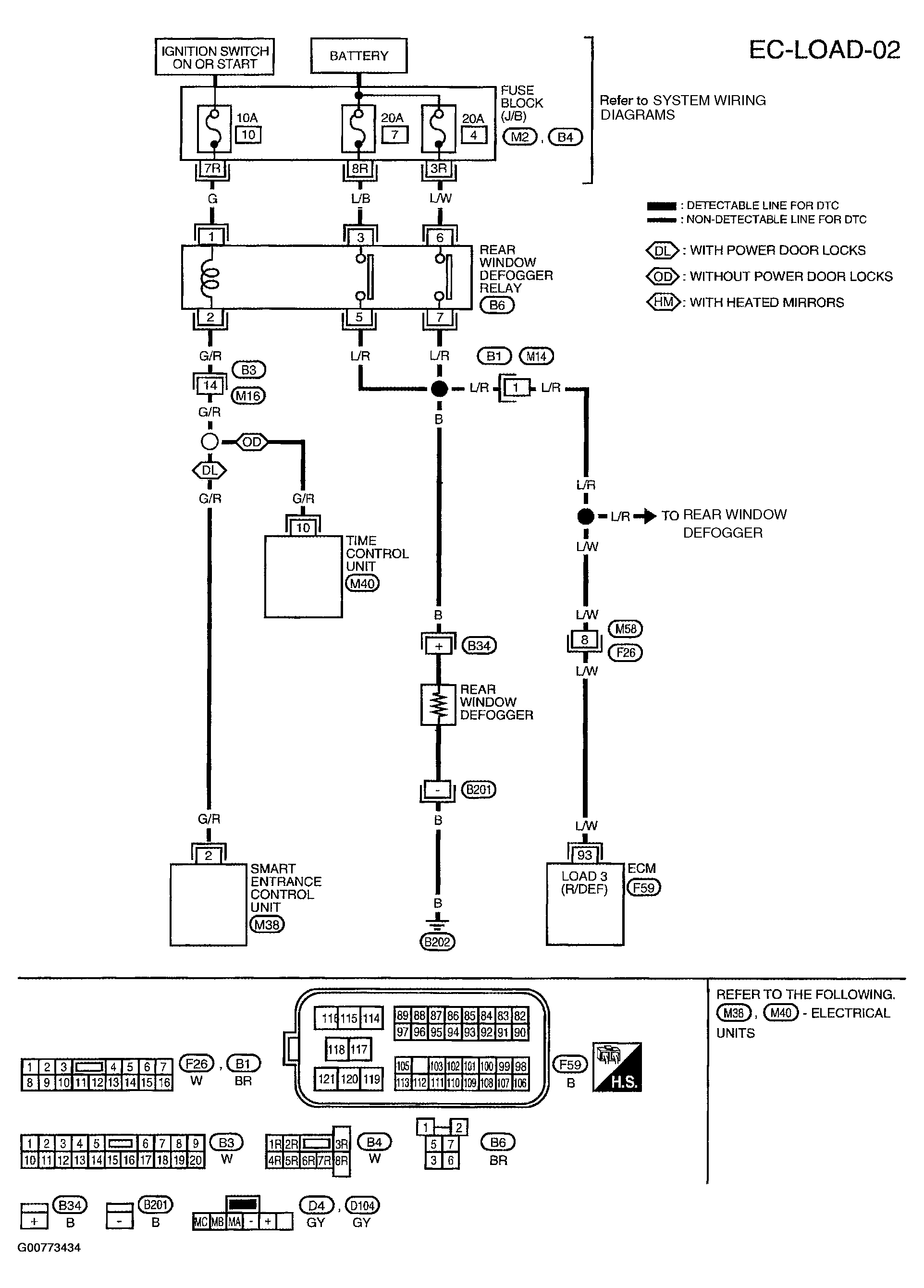

Fig 1: Wiring Diagram - Electrical Load Signal (SULEV Models)
G00773434Courtesy of NISSAN MOTOR CO., U.S.A.
