Ignition Coil With Power Transistor

  1. Turn ignition switch OFF.
  2. Disconnect ignition coil harness connector.
  3. Check resistance between ignition coil terminals as follows.

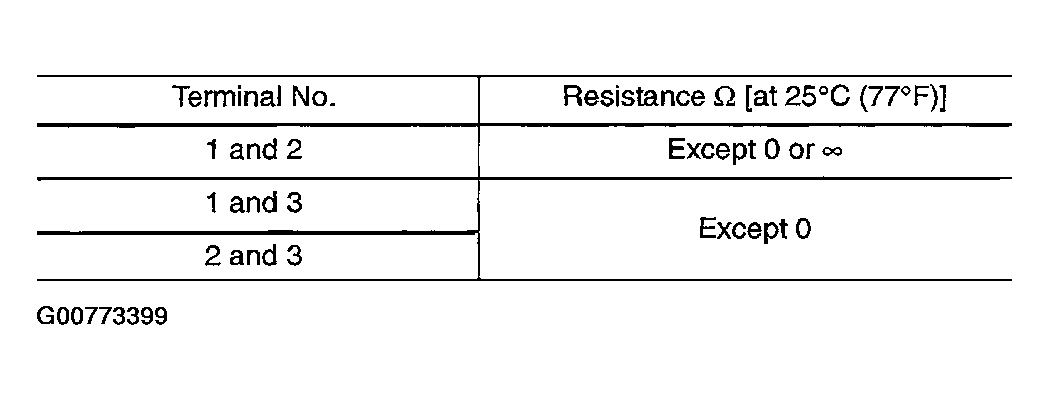

    Fig 1: Ignition Coil Terminals Resistance Specifications
    G00773399Courtesy of NISSAN MOTOR CO., U.S.A.

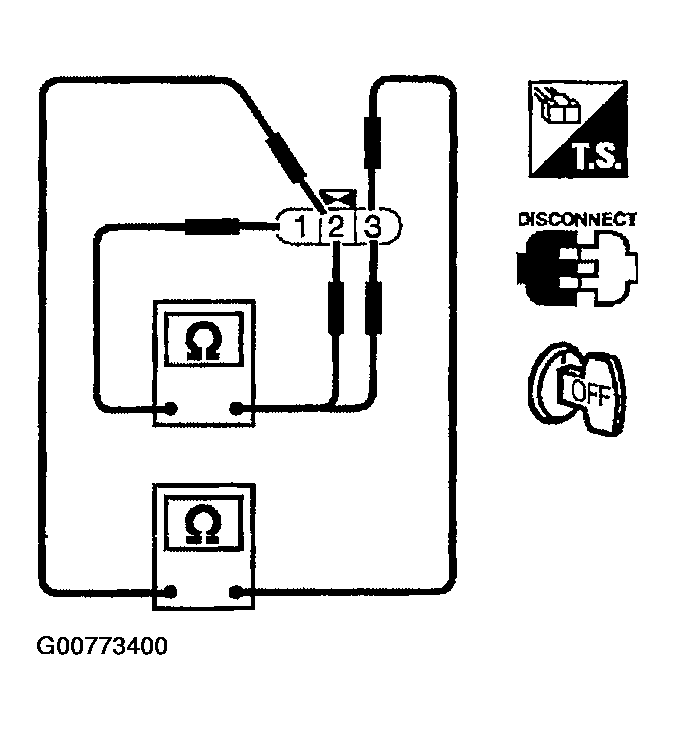

    Fig 2: Checking Resistance Between Ignition Coil Terminals
    G00773400Courtesy of NISSAN MOTOR CO., U.S.A.
