Case Components: Disassembly

WARNING: This page is about a different car, the 2003 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

Remove check ball plug, check spring and check ball. Then remove interlock stopper.
- If interlock assembly is removed as a unit, the check ball can fall into transmission case.
- Be careful not to lose check ball.

  Fig 1: Removing Interlock Stopper
  Courtesy of NISSAN MOTOR CO., U.S.A.

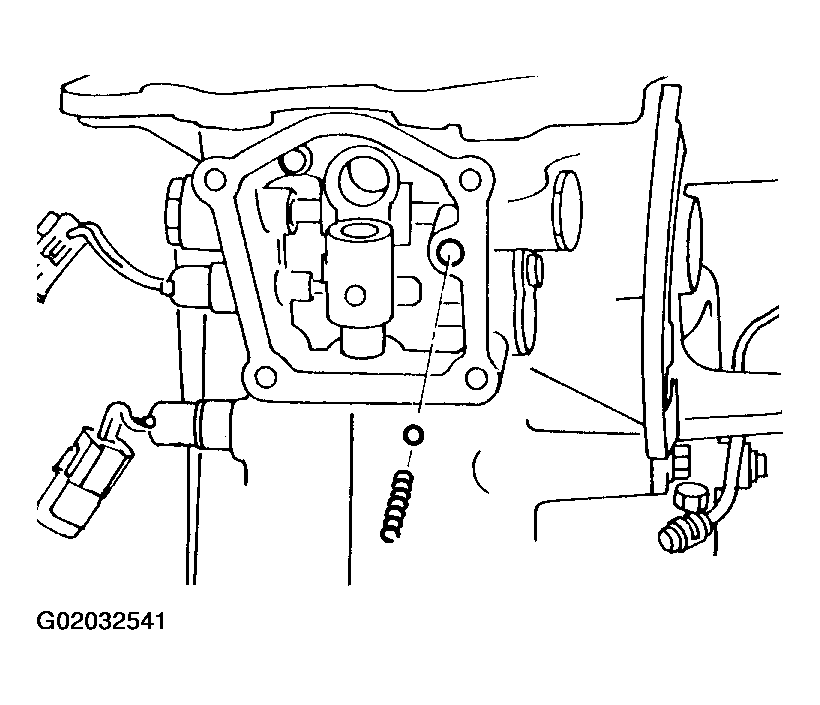

Remove control housing, return spring and check ball.
- Be careful not to lose check ball.

  Fig 2: Removing Control Housing, Return Spring And Check Ball
  Courtesy of NISSAN MOTOR CO., U.S.A.

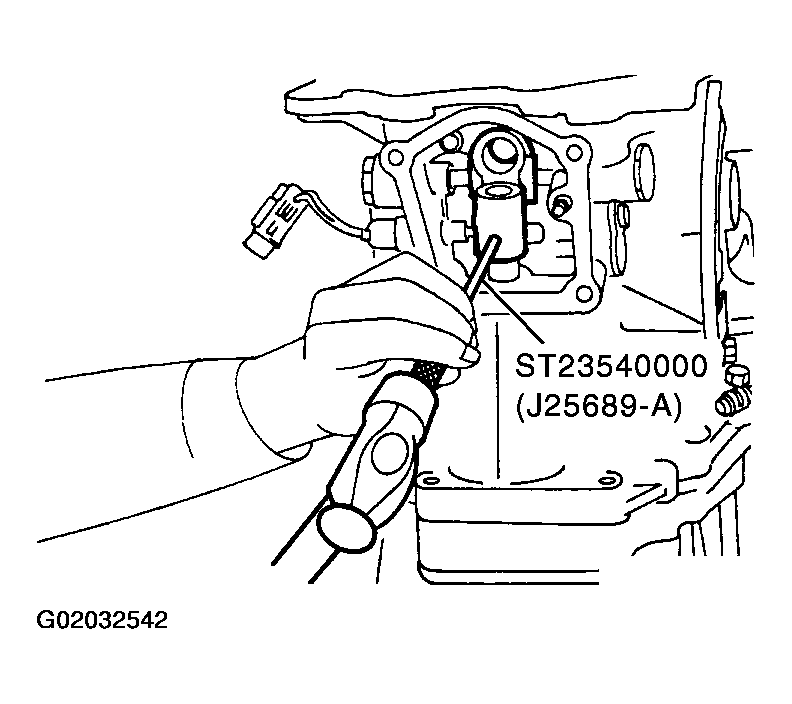

Drive out retaining pin from striking arm.

Fig 3: Driving Out Retaining Pin From Striking Arm
Courtesy of NISSAN MOTOR CO., U.S.A.

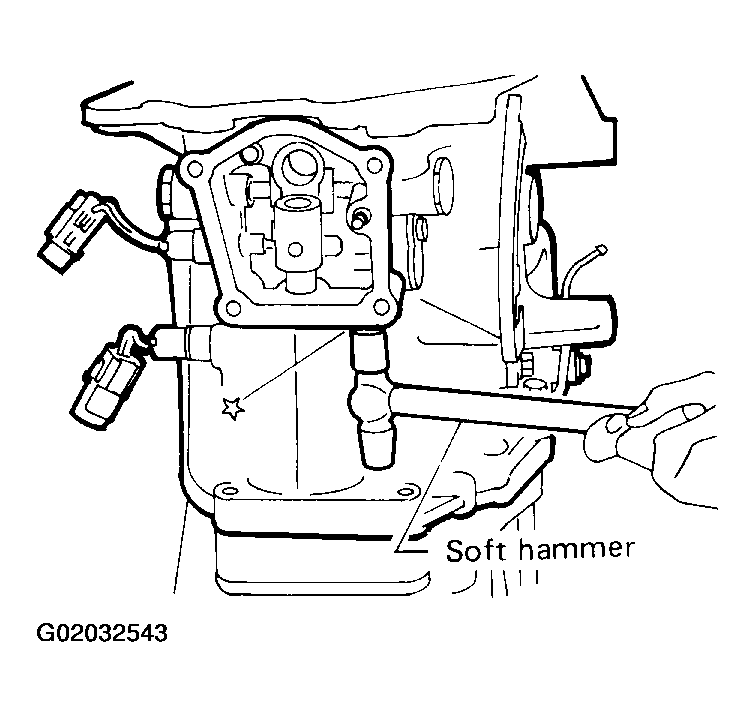

Remove OD gear case together with striking arm by tapping lightly.

Fig 4: Removing OD Gear Case Together With Striking Arm
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove front cover and gasket.

Fig 5: Removing Front Cover And Gasket
Courtesy of NISSAN MOTOR CO., U.S.A.

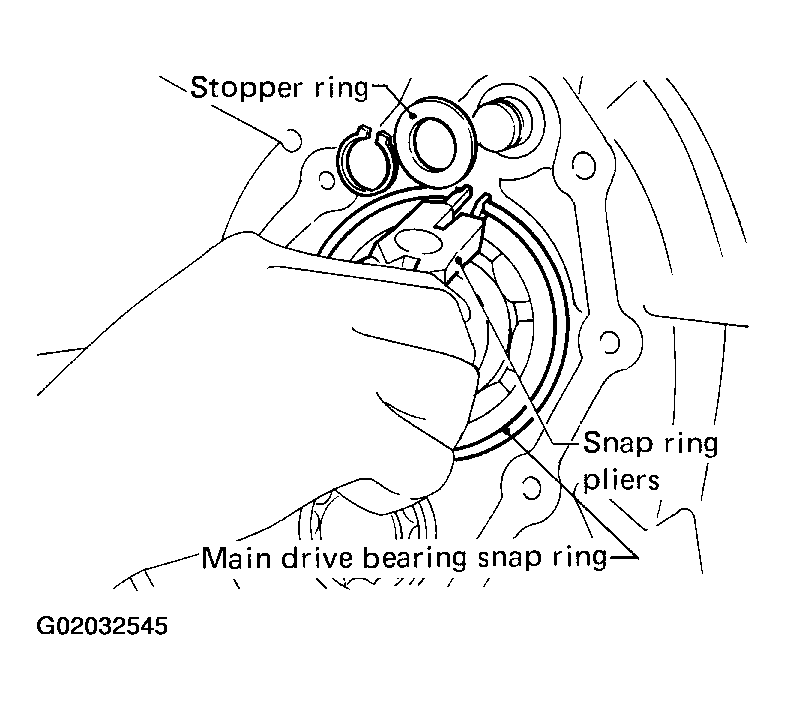

Remove stopper ring and main drive bearing snap ring.

Fig 6: Removing Stopper Ring And Main Drive Bearing Snap Ring
Courtesy of NISSAN MOTOR CO., U.S.A.

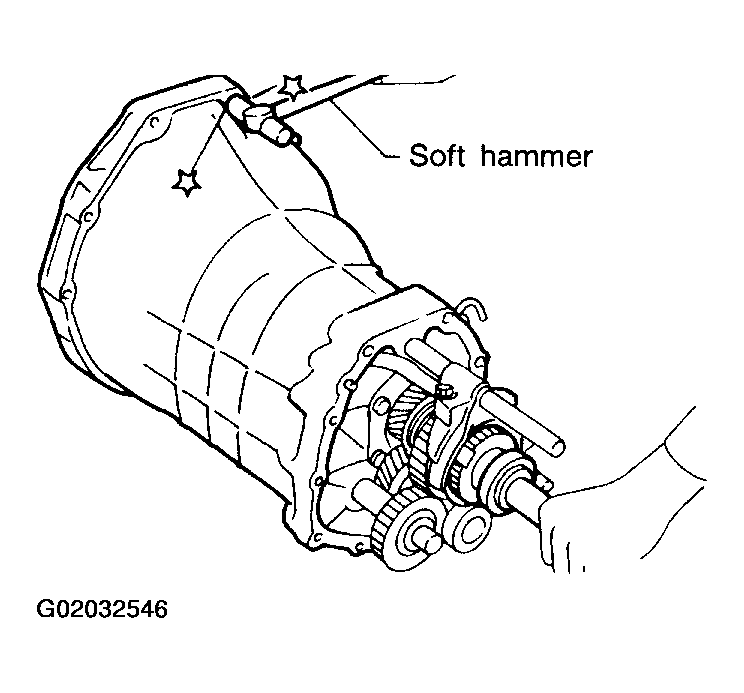

Remove transmission case by tapping lightly.

Fig 7: Removing Transmission Case
Courtesy of NISSAN MOTOR CO., U.S.A.
Remove front cover oil seal.

Fig 8: Removing Front Cover Oil Seal
Courtesy of NISSAN MOTOR CO., U.S.A.
