Cross-sectional View Of Manual Transaxle: Notes

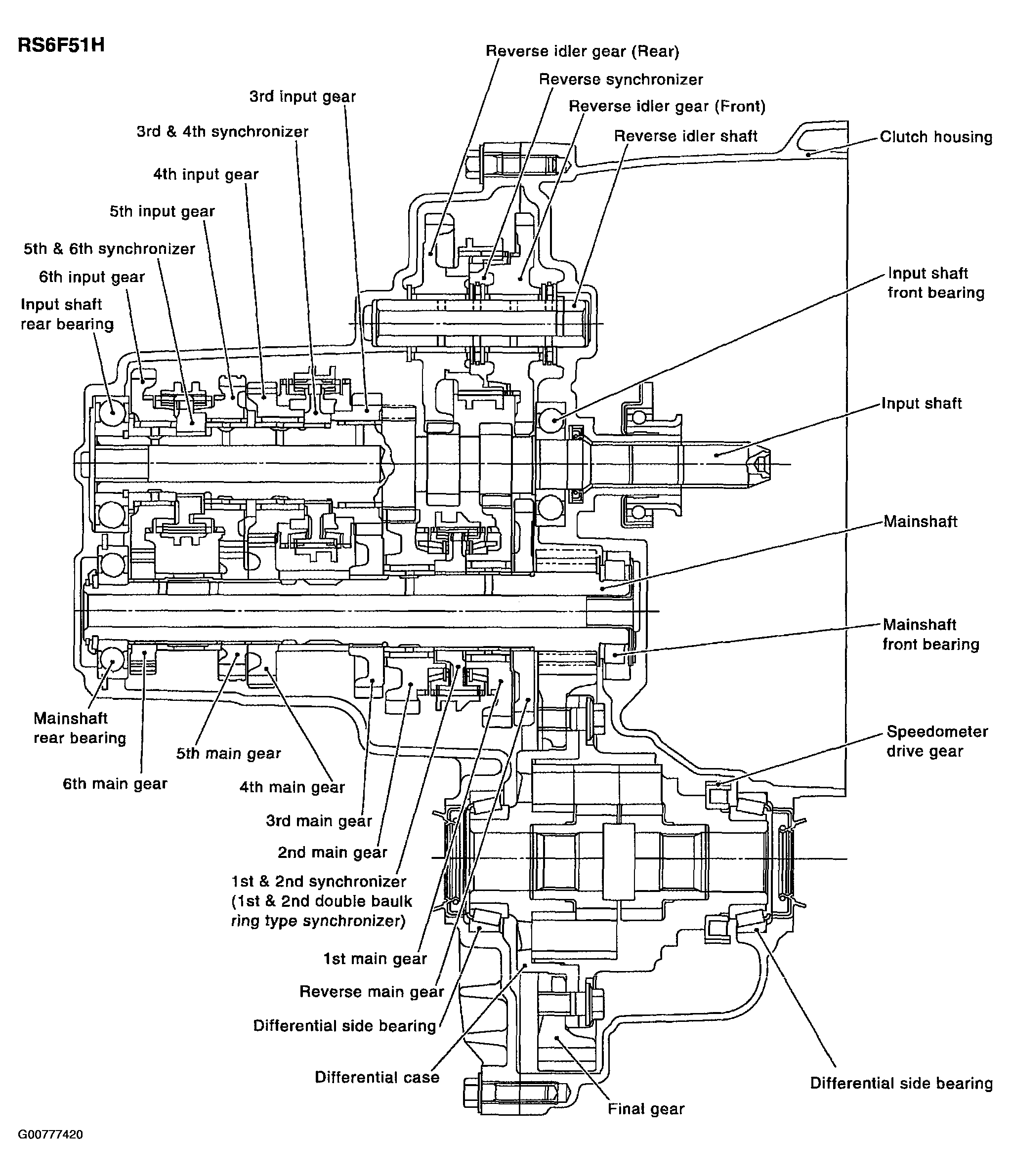

Fig 1: Cross-Sectional View Of Manual Transaxle (RS6F51H)
G00777420Courtesy of NISSAN MOTOR CO., U.S.A.
