Diagnostic Procedure 2, Check "B" Terminal Circuit

NOTE: For trouble diagnoses with Battery/Starting/Charging system tester, see TROUBLE DIAGNOSES WITH BATTERY/STARTING/CHARGING SYSTEM TESTER .
NOTE: For connector symbol explanation, see HOW TO READ CONNECTOR SYMBOLS .

For diagnostic procedure 2, check "B" terminal circuit, see Fig 1.

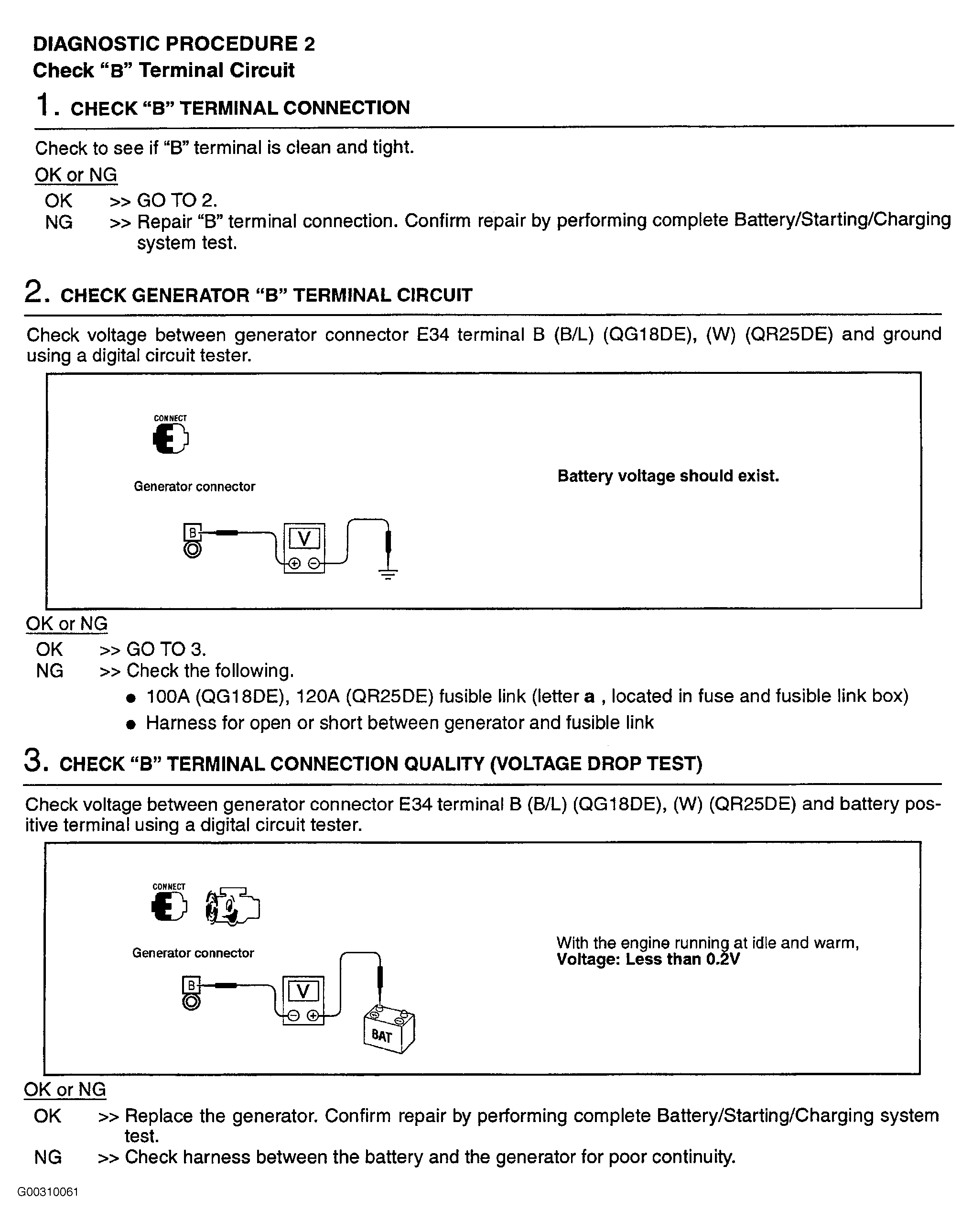

Fig 1: Identifying Diagnostic Procedure 2, Check "B" Terminal Circuit
G00310061Courtesy of NISSAN MOTOR CO., U.S.A.
