Guide Sound Is Not Heard

• While driving in the dark pink route, voice guide does not operate. (note)
• Is volume setting not switched ON?
  NOTE: Voice guide is only available at intersections that satisfy certain conditions (indicated by "CIRCLE FIELD" on the map). Therefore, guidance may not be given even when the route on the map changes direction.

YES or NO

1. YES: GO TO 2.
2. NO: Switch the setting ON and turn the volume up.

1. Turn the ignition switch OFF.
2. Disconnect NAVI control unit connector and audio unit connector.
3. Check continuity between NAVI control unit and audio unit
   TERMINAL



   Terminals				Continuity
   NAVI control unit (+)		Audio unit (-)
   Connector	Terminal (wire color)	Connector	Terminal (wire color)
   M57	12 (L/W)	M39	32 (L/W)	Yes
   	13 (W/B)		30 (W/B)
   M58	37 (R/B)		24 (R/B)

4. Check continuity between NAVI control unit and ground.
   TERMINAL



   Terminals			Continuity
   NAVI control unit(+)		(-)
   Connector	Terminal (wire color)
   M57	12 (L/W)	Ground	No
   	13 (W/B)
   M58	37 (R/B)

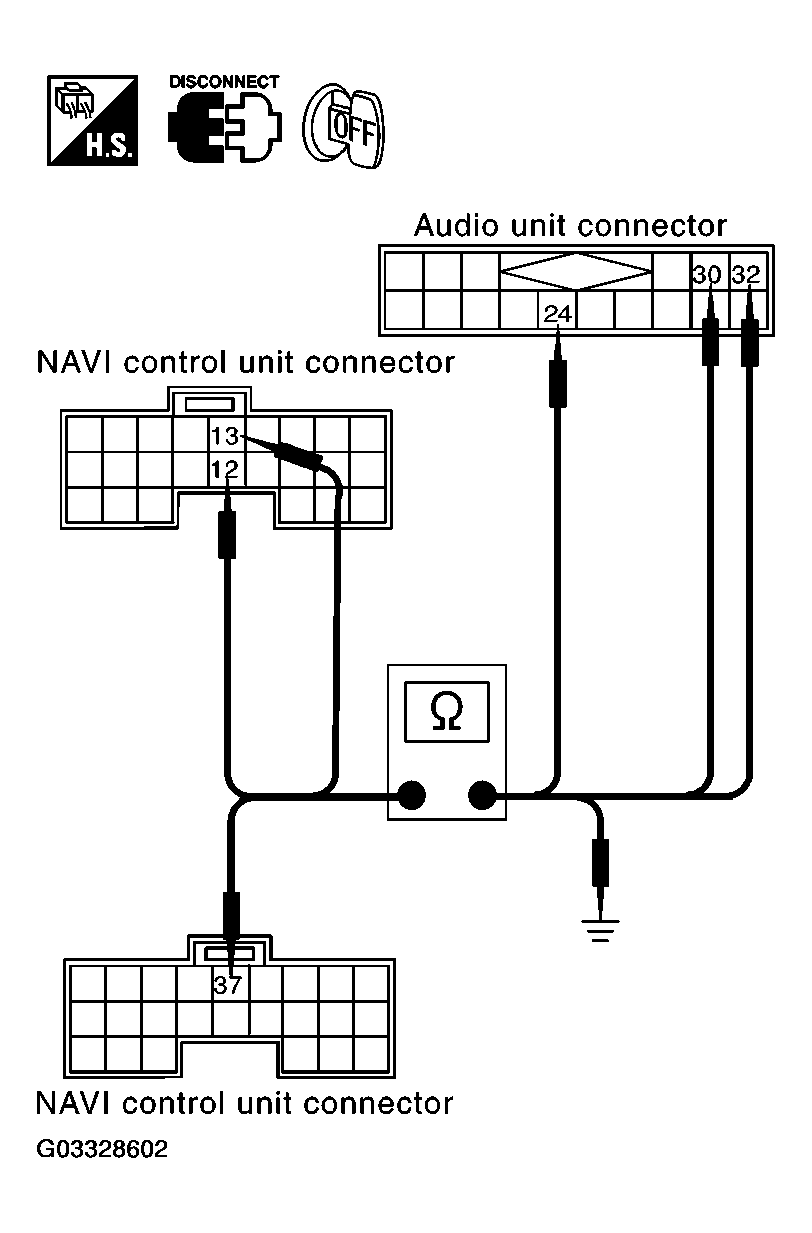

   Fig 1: Checking Continuity Between NAVI Control Unit And Audio Unit And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 3.
2. NG: Go to next step.
   • Check harness for open or short between NAVI control unit and audio unit
   • Check connector housings for disconnected or loose terminals.

1. Connect NAVI control unit connector and audio unit connector.
2. Turn ignition switch ON.
3. Push "VOICE" switch.
4. Check the signal between NAVI control unit harness connector M58 terminal 37 (R/B) and ground with CONSULT-II or oscilloscope.

   37(R/B)-Ground: Refer to TERMINALS AND REFERENCE VALUE FOR NAVI CONTROL UNIT .

   Fig 2: Checking Signal Between NAVI Control Unit Harness Connector M58 Terminal 37 (R/B) And Ground With CONSULT-II Or Oscilloscope

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: GO TO 4.
2. NG: Replace NAVI control unit.

1. Push the "VOICE" switch.
2. Check the signal between NAVI control unit and ground with CONSULT-II or oscilloscope.
   TERMINAL



   Terminals			Reference Signal
   (+)		(-)
   Connector	Terminal (wire color)
   M57	12 (L/W)	Ground	Refer to TERMINALS AND REFERENCE VALUE FOR NAVI CONTROL UNIT .
   	13 (W/B)

   Fig 3: Checking Signal Between NAVI Control Unit And Ground With CONSULT-II Or Oscilloscope

   Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

1. OK: Replace audio unit.
2. NG: Replace NAVI control unit
