Display with Pushed "INFO" Switch

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

NAVI control unit is communicating combination meter.

Push "INFO" switch to display vehicle information display.
NOTE: If a warning signal is received by NAVI at this time, NAVI control unit displays warning message on screen.
Select "Trip Computer", "Fuel Economy" or "Maintenance".

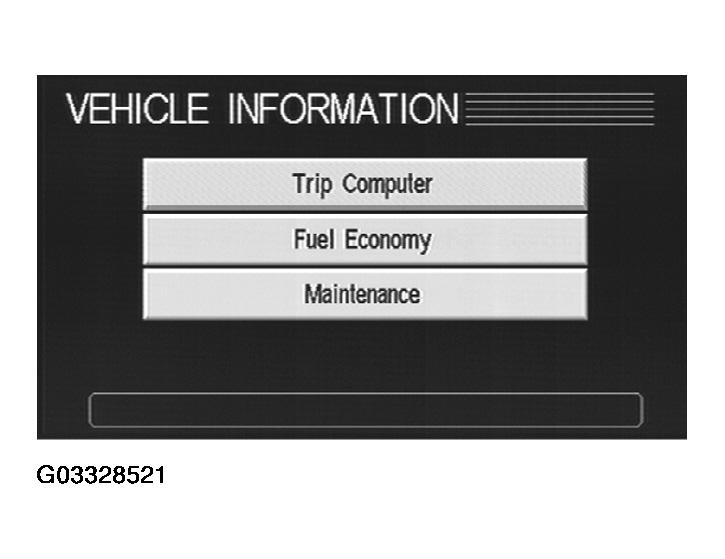

Fig 1: Displaying "Trip Computer", "Fuel Economy" Or "Maintenance"
Courtesy of NISSAN MOTOR CO., U.S.A.

DISPLAY ITEM CHART

Display items

Display/Setting contents

Reference

Trip Computer

Elapsed Time

Displays driving time with a range of 0000:00:00 to 9999:59:59.

TRIP COMPUTER INFORMATION

Driving Distance

Displays driving distance with a range of 00000.0 to 99999.9.

Average speed

Displays average speed with a range of 000.0 to 999.9.

Fuel Economy

Average Fuel Economy (MPG)

Displays fuel economy with ignition switch ON, average fuel economy each 30 minutes.

FUEL ECONOMY INFORMATION

Distance to Empty (Miles)

Displays possible driving distance with remaining fuel.

Fuel Economy (MPG)

Displays fuel economy each approx. 100ms.

Fuel Economy Record

Displays Average Fuel Consumption History.

Maintenance (with Maintenance information)⁽¹⁾

Engine Oil

Maintenance intervals of engine oil and setting of oil change cycle.

MAINTENANCE INFORMATION

Oil Filter

Maintenance intervals of oil filter and setting of filter replacement cycle.

⁽¹⁾	Maintenance information displays the change cycle of engine oil, oil filter and tire on LCD monitor depending on the driving distance specified by a driver or a technician.
