Terminals and Reference Value for NAVI Switch
WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

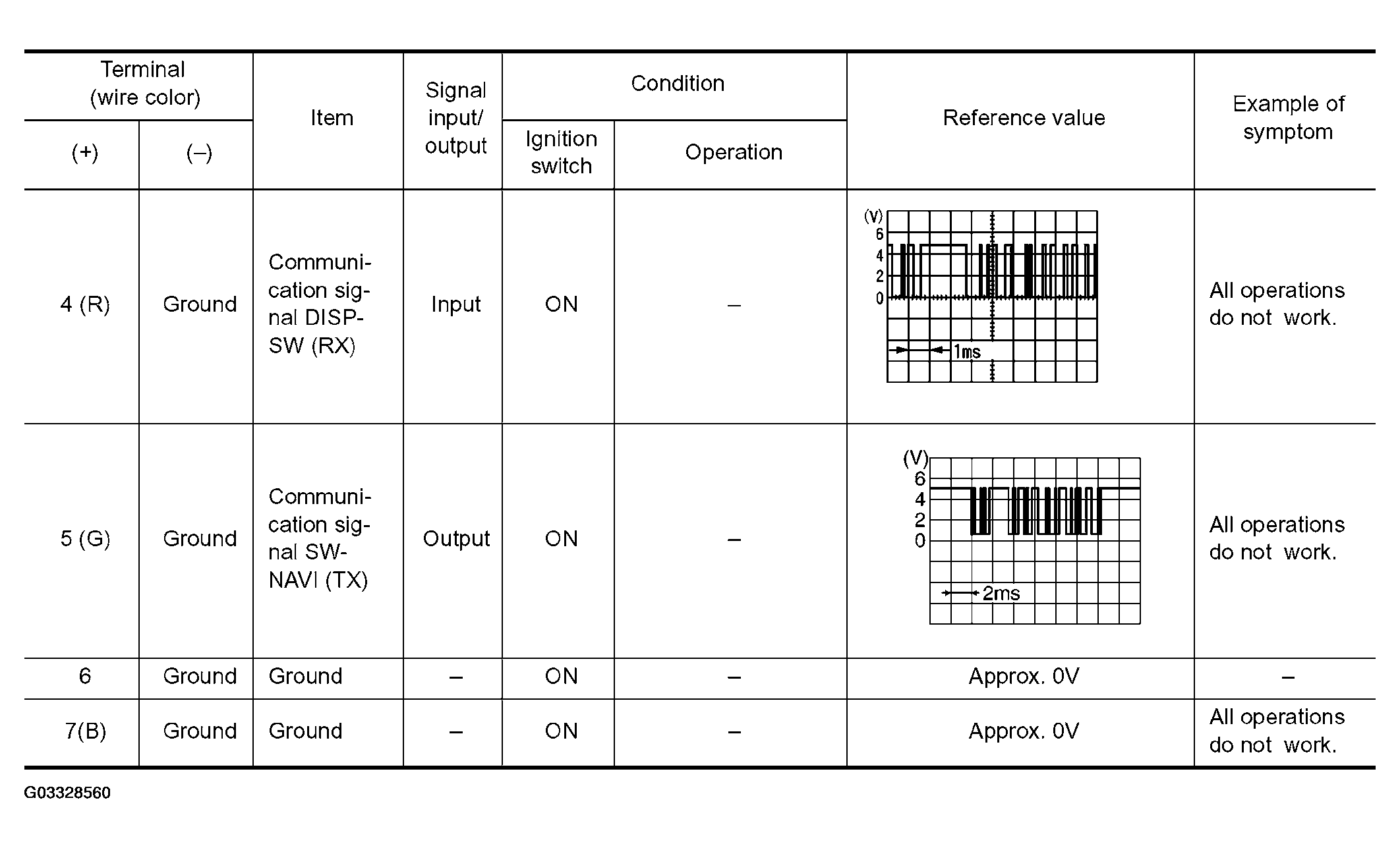

TERMINAL
| Terminal (wire color) | Item | Signal input/output | Condition | Reference value | Example of symptom | ||
|---|---|---|---|---|---|---|---|
| (+) | (-) | Ignition switch | Operation | ||||
| 1 (LG) | Ground | ACC power | Input | ACC | - | Battery voltage | All operations do not work. |
| 2 (R/L) | Ground | Illumination signal | Input | OFF | Lighting switch position 1st or 2nd | Approx.12V | Night illumination for switches does not illuminate. |
| Lighting switch position OFF | Approx. 0V | ||||||
| 3(R/Y) | Ground | Illumination Ground | - | ON | - | Approx. 0V | All operations do not work. |
