2-pole Lift

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: When lifting the vehicle, open the lift arms as wide as possible and ensure that the front and rear 01 the vehicle are well balanced.
When setting the lift arm, do not allow the arm to contact the brake tubes, brake cable, fuel lines and sill spoiler.

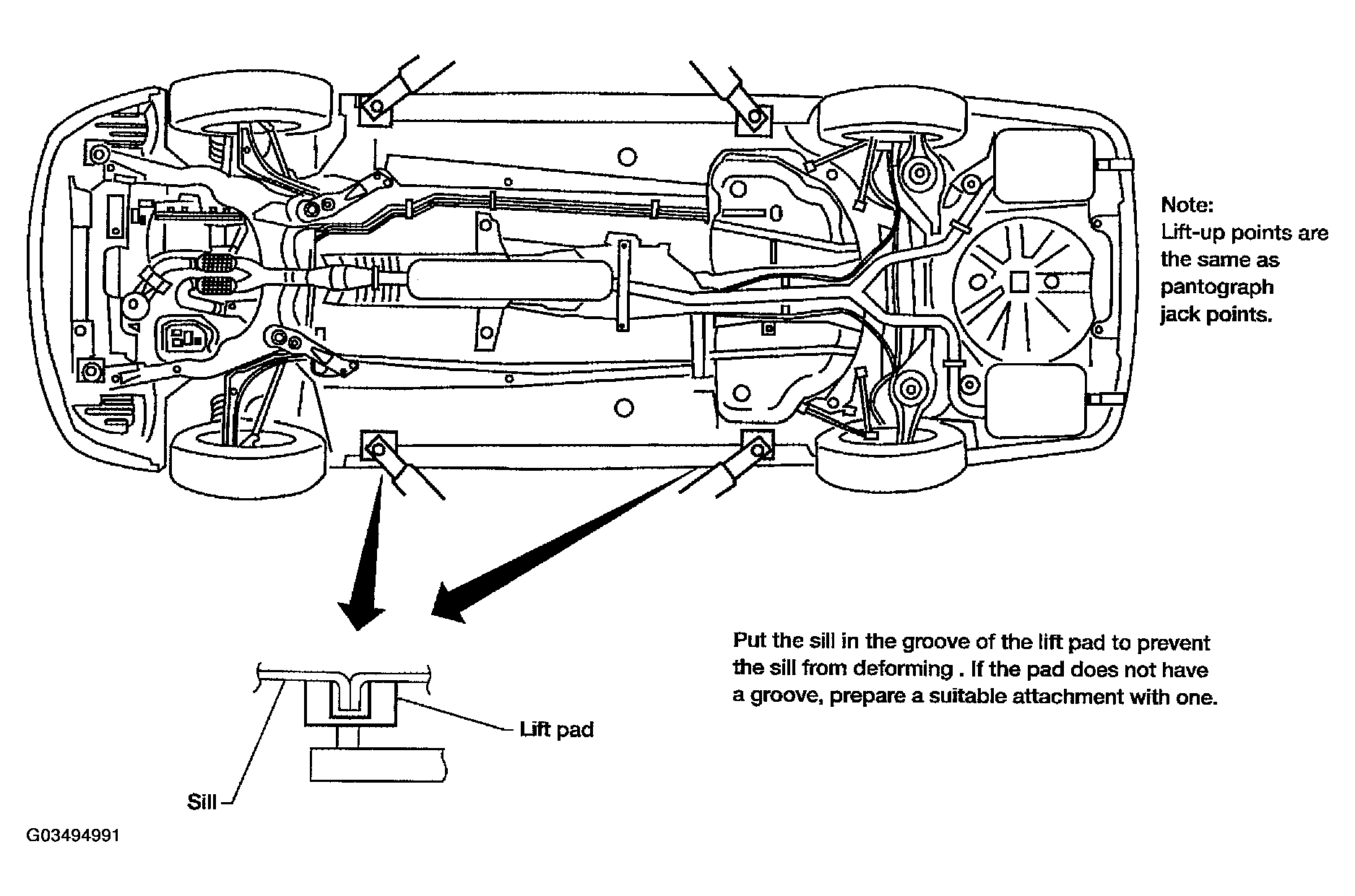

Fig 1: Opening Lift Arms For Lifting Vehicle
G03494991Courtesy of NISSAN MOTOR CO., U.S.A.
