Pressure Relief Valve

WARNING: This page is about a different car, the 2005 Infiniti FX45 and 2005 Infiniti FX35. However, it is still accessible from the selected car via links, so may be relevant.

The refrigerant system is also protected by a pressure relief valve, located in the rear head of the compressor.

When the pressure of refrigerant in the system increases to an unusual level [more than 3,727 kPa (38 kg/cm2 , 540 psi)], the release port on the pressure relief valve automatically opens and releases refrigerant into the atmosphere.

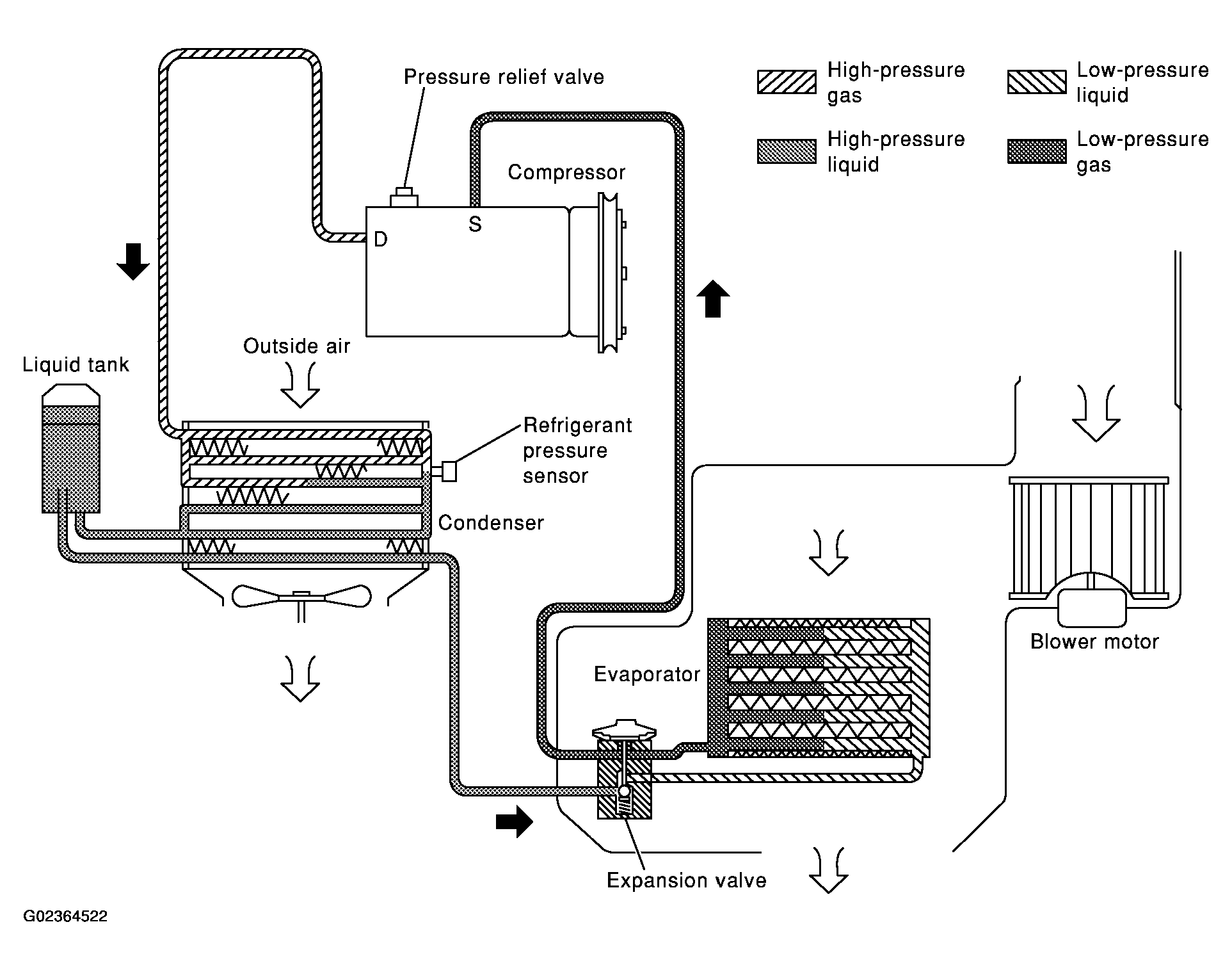

Fig 1: Refrigerant Line Pressure Diagram
G02364522Courtesy of NISSAN MOTOR CO., U.S.A.
