Recirculating-to-Discharge Air Temperature Table

WARNING: This page is about a different car, the 2002 Nissan Sentra. However, it is still accessible from the selected car via links, so may be relevant.

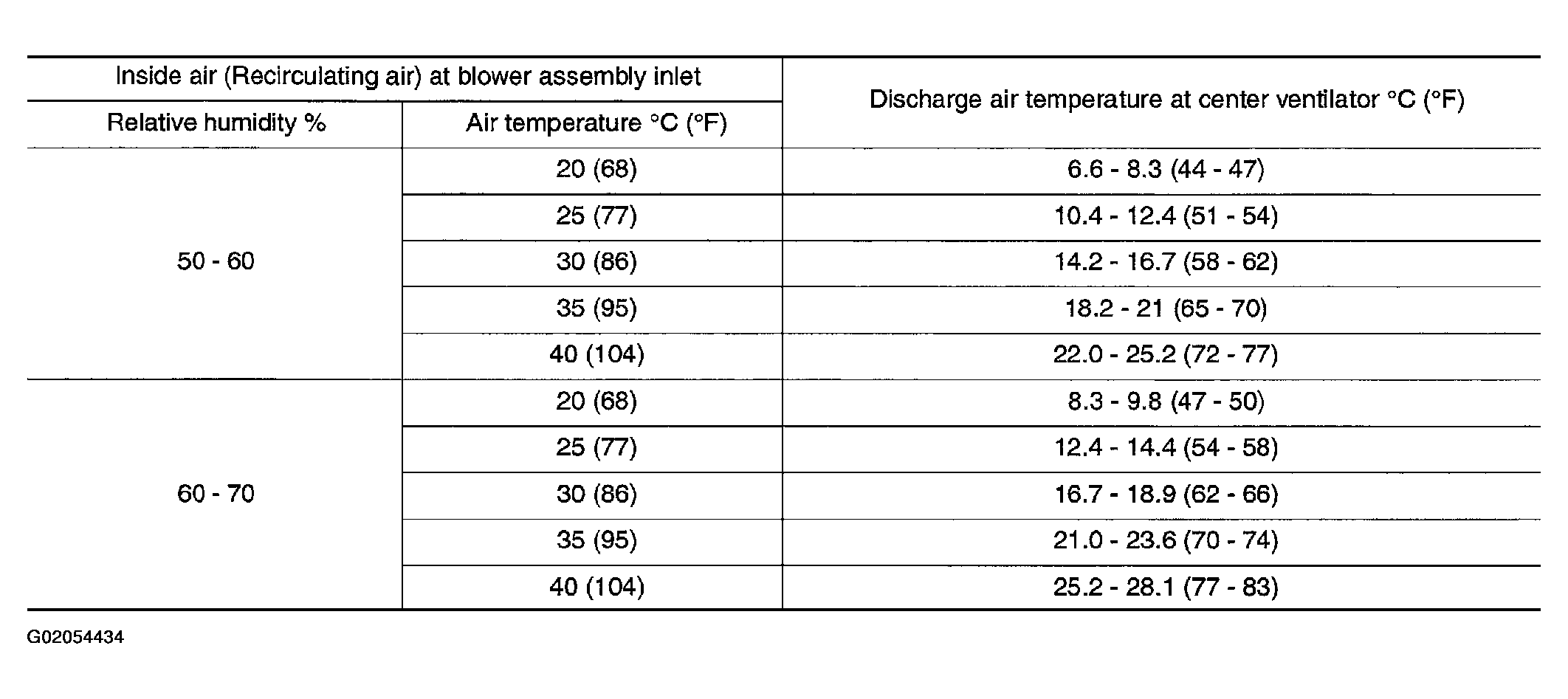

Fig 1: Recirculating-To-Discharge Air Temperature Table
G02054434Courtesy of NISSAN MOTOR CO., U.S.A.
