Basic Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.
  1. Turn ignition switch "OFF".
  2. Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.

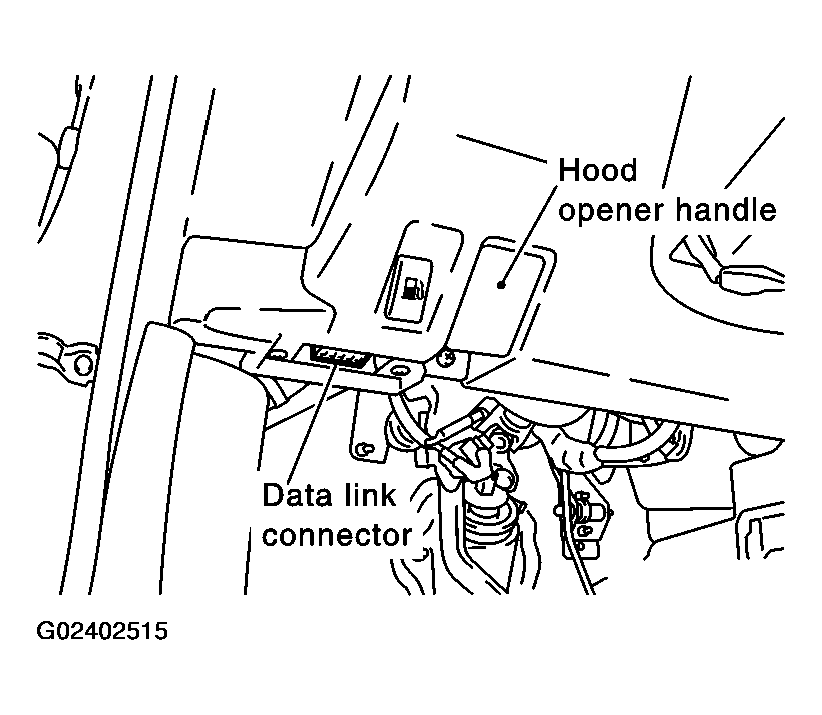

    Fig 1: Data Link Connector & Hood Opener Handle
    G02402515Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Turn ignition switch "ON".
  4. Touch "START(NISSAN BASED VHCL)".

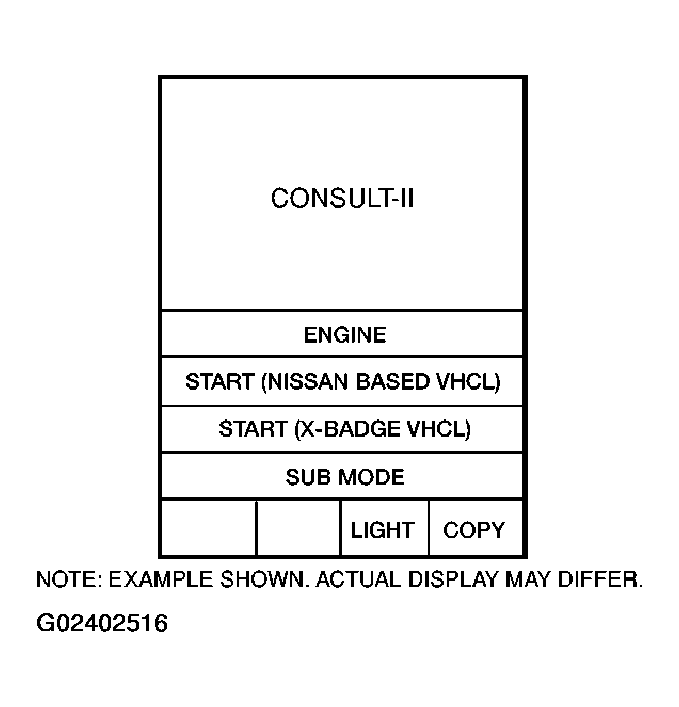

    Fig 2: Scan Tool Display "Consult II"
    G02402516Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "IPDM".

    If "IPDM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

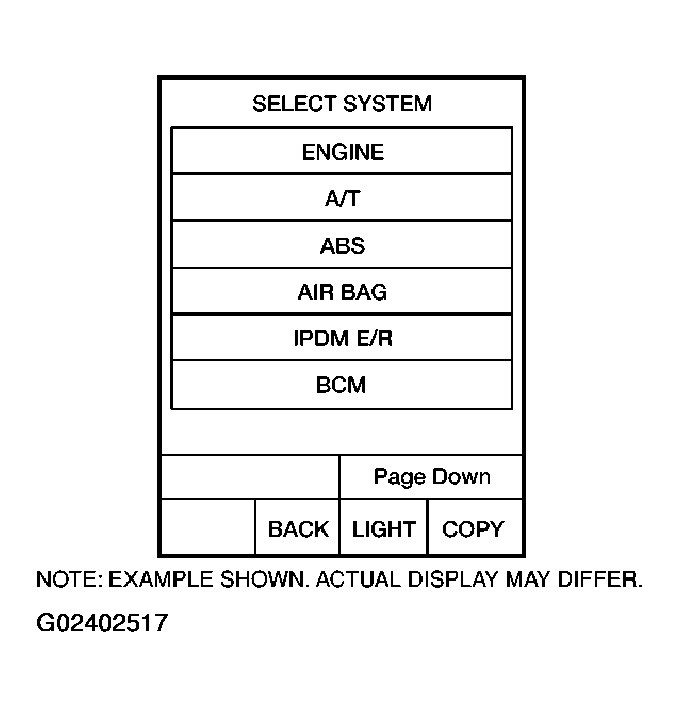

    Fig 3: Scan Tool Display "Select System"
    G02402517Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Select diagnosis mode.

    "DATE MONITOR" and "ACTIVE TEST" are available.

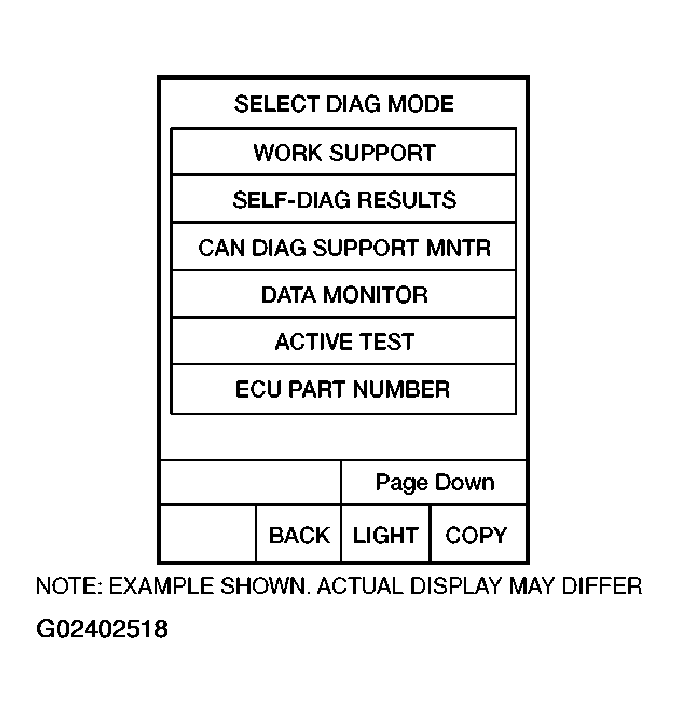

    Fig 4: Scan Tool Display "Select DIAG Mode"
    G02402518Courtesy of NISSAN MOTOR CO., U.S.A.
