Terminal and Reference Value for Power Window Sub-Switch

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

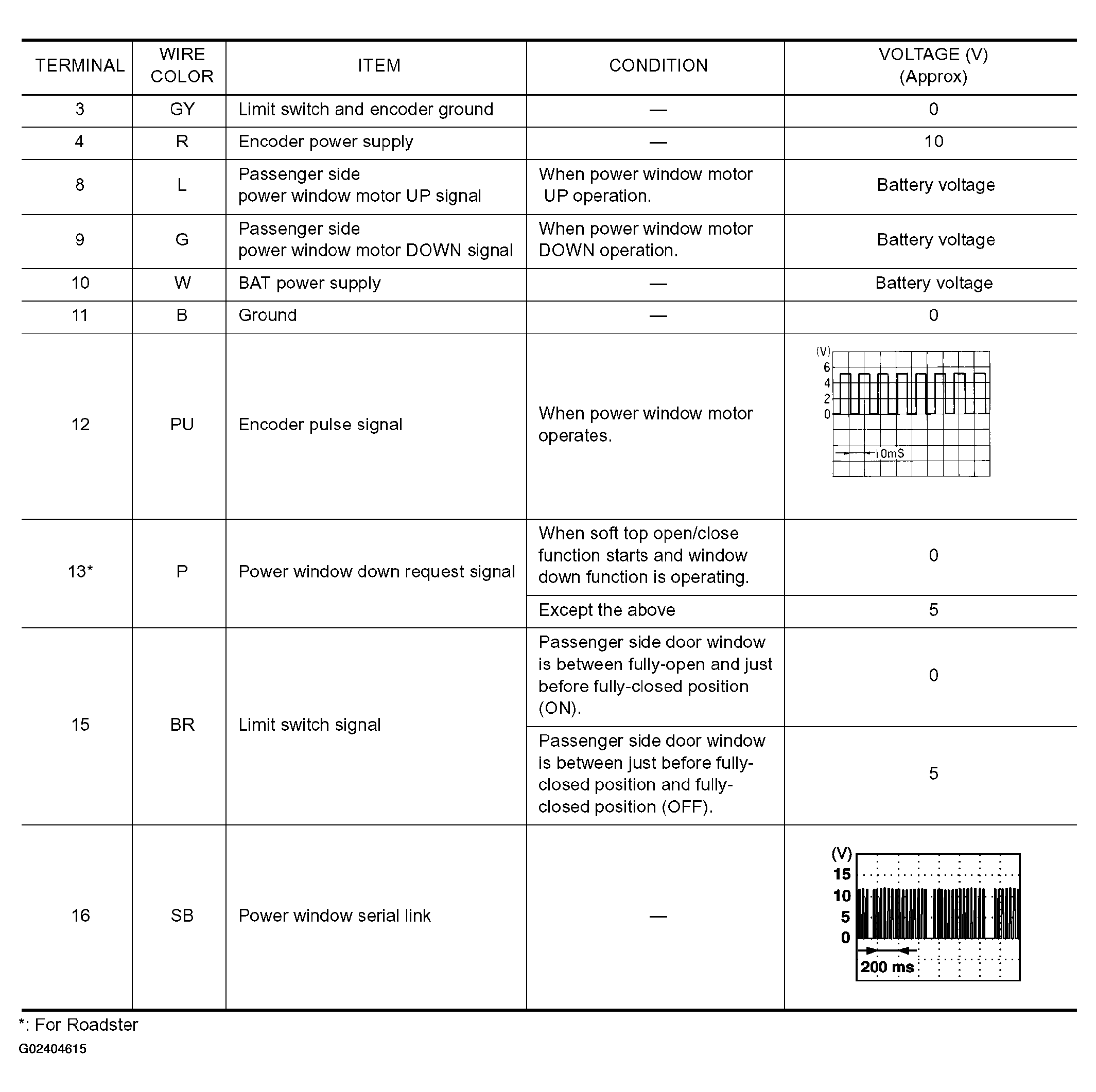

Fig 1: Terminal & Reference Value For Power Window Sub-Switch

Courtesy of NISSAN MOTOR CO., U.S.A.
