Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Turn ignition switch ON.
Touch "START (NISSAN BASED VHCL)".

Fig 2: CONSULT-II Screen Display - START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM".
If "BCM" is not indicated, go to , "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT "

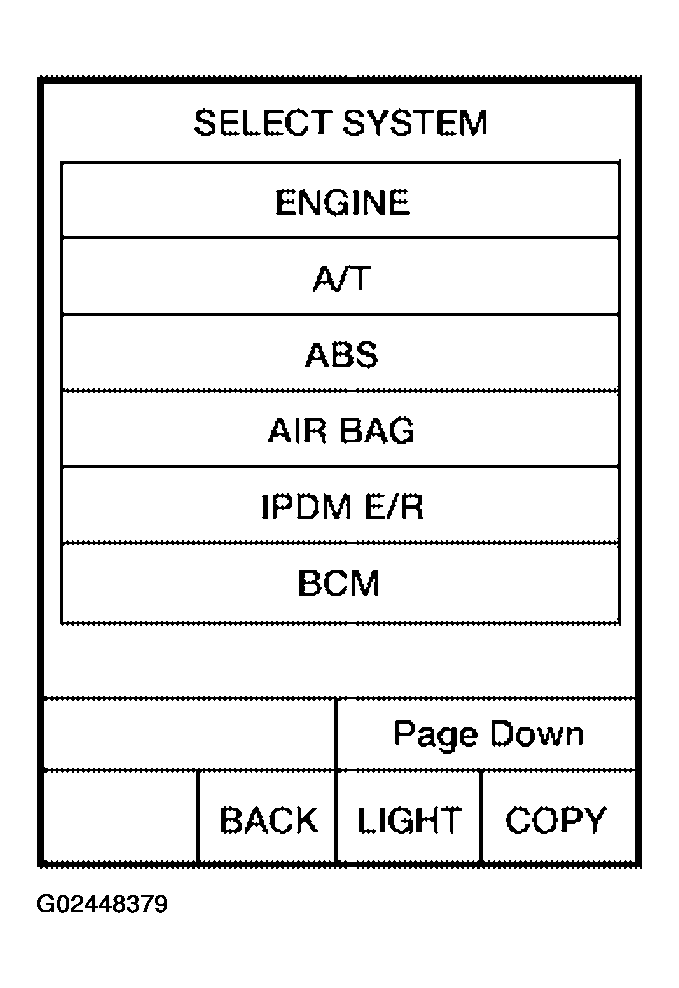

Fig 3: CONSULT-II Screen Display - SELECT SYSTEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "REAR DEFOGGER".

Fig 4: CONSULT-II Screen Display - SELECT TEST ITEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Select diagnosis mode, "DATA MONITOR" and "ACTIVE TEST".

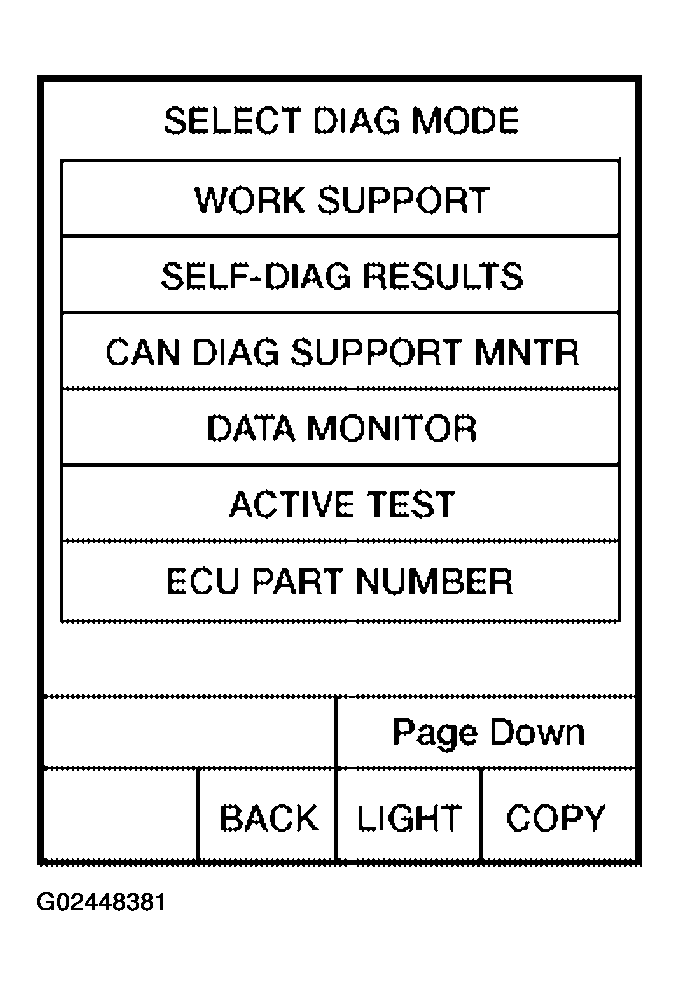

Fig 5: CONSULT-II Screen Display - SELECT DIAG MODE
Courtesy of NISSAN MOTOR CO., U.S.A.
