Operation Procedure

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

Perform "CONSULT-II SETTING PROCEDURE". Refer to "CONSULT-II SETTING PROCEDURE ".
Touch "DTC WORK SUPPORT".

Fig 1: CONSULT-II Self Diag Mode Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch select item menu.

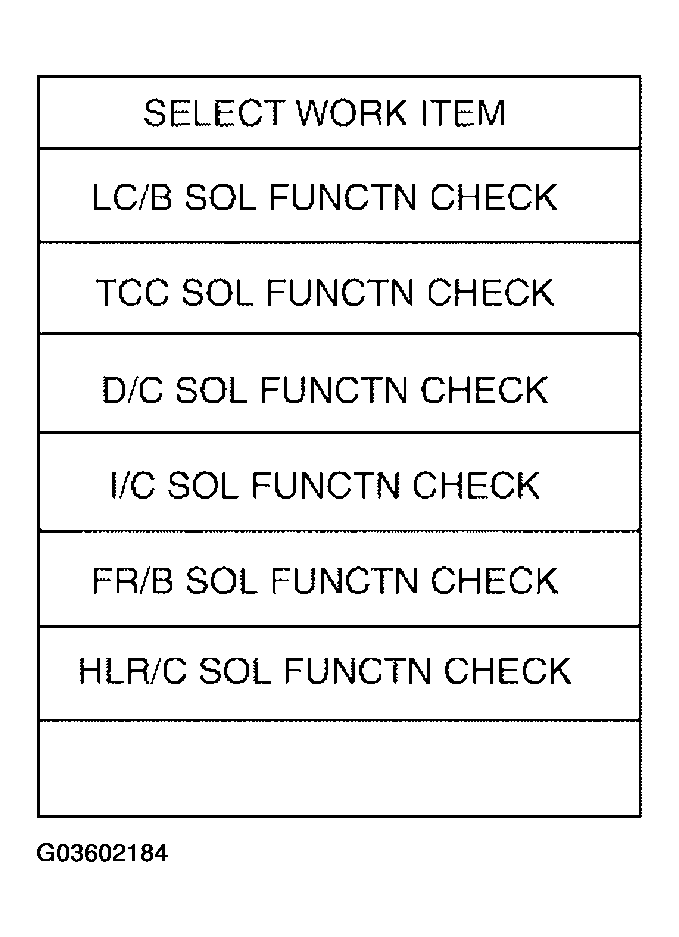

Fig 2: CONSULT-II Select Work Item Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START".

Fig 3: CONSULT-II TCC SOL Function Check Screen (1 Of 7)
Courtesy of NISSAN MOTOR CO., U.S.A.
Perform driving test according to "DTC CONFIRMATION PROCEDURE" in "TROUBLE DIAGNOSIS FOR DTC".

Fig 4: CONSULT-II TCC SOL Function Check Screen (2 Of 7)
Courtesy of NISSAN MOTOR CO., U.S.A.
- When testing conditions are satisfied, CONSULT-II screen changes from "OUT OF CONDITION" to "TESTING" .

  Fig 5: CONSULT-II TCC SOL Function Check Screen (3 Of 7)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Stop vehicle.

Fig 6: CONSULT-II TCC SOL Function Check Screen (4 Of 7)
Courtesy of NISSAN MOTOR CO., U.S.A.
- If "NG" appears on the screen, malfunction may exist. Go to "Diagnostic Procedure" .

  Fig 7: CONSULT-II TCC SOL Function Check Screen (5 Of 7)
  Courtesy of NISSAN MOTOR CO., U.S.A.
Perform test drive to check gear shift feeling in accordance with instructions displayed.
Touch "YES" or "NO".
CONSULT-II procedure is ended.

Fig 8: CONSULT-II TCC SOL Function Check Screen (6 Of 7)
Courtesy of NISSAN MOTOR CO., U.S.A.
- If "NG" appears on the screen, malfunction may exist. Go to "Diagnostic Procedure" .

  Fig 9: CONSULT-II TCC SOL Function Check Screen (7 Of 7)
  Courtesy of NISSAN MOTOR CO., U.S.A.
