Mirror Sensor RH Circuit Check

WARNING: This page is about a different car, the 2005 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

CHECK DOOR MIRROR FUNCTION
Check the following items.

Operation malfunction in memory control

NOTE: If a door mirror face position is set to an implausible angle, the set position may not be reproduced.

OK or NG
- OK : GO TO 2.
- NG : Repair the malfunctioning parts, and check the symptom again.

CHECK MIRROR SENSOR

With CONSULT-II

Check that "ON" is displayed on "MIR/SE RH R-L, MIR/SE RH U- D" in the DATA MONITOR.

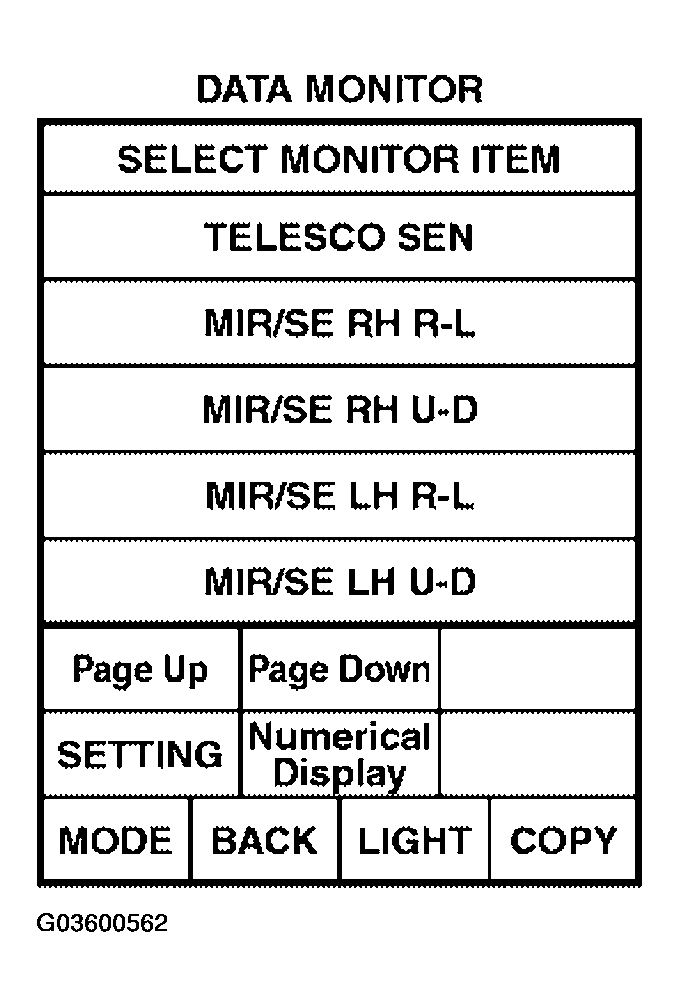

Fig 1: Identifying Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

MIR/SE RH R-L & MIR/SE RH U-D DATA MONITOR

Monitor item [OPERATION or UNIT]		Contents
MIR/SE RH R-L	"V"	Voltage output from door mirror RH sensor (LH/RH) is displayed.
MIR/SE RH U-D	"V"	Voltage output from door mirror RH sensor (UP/DOWN) is displayed.

Without CONSULT-II

Turn ignition switch to ACC.

Check voltage between door mirror RH connector and ground.

Fig 2: Checking Voltage Between Door Mirror RH Connector And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

VOLTAGE BETWEEN DOOR MIRROR RH CONNECTOR AND GROUND REFERENCE

Connector	Terminals (Wire color)		Condition	Voltage (V) (Approx.)
Connector	(+)	(-)	Condition	Voltage (V) (Approx.)
D107	7 (R/B)	Ground	Mirror motor is operated UP or DOWN	Changes between 3.4 (close to peak) - 0.6 (close to valley)
D107	8 (L/W)	Ground	Mirror motor is operated LEFT or RIGHT	Changes between 3.4 (close to left edge) - 0.6 (close to right edge)

OK or NG

OK : Mirror sensor RH is OK.
NG : GO TO 3.

CHECK HARNESS CONTINUITY 1
1. Turn ignition switch OFF.
2. Disconnect automatic drive positioner control unit and door mirror RH.
3. Check continuity between automatic drive positioner control unit connector M34 terminals 33, 41 and door mirror RH connector D107 terminals 5, 6.
  33 (W/L) - 5 (W/L) : Continuity should exist .

  41 (W/G) - 6 (W/G) : Continuity should exist .
4. Check continuity between automatic drive positioner control unit connector M34 terminals 33, 41 and ground.
  33 (W/L) - Ground : Continuity should not exist .

  41 (W/G) - Ground : Continuity should not exist .

  Fig 3: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M34 Terminals 33, 41 And Door Mirror RH Connector D107 Terminals 5 And Ground
  Courtesy of NISSAN MOTOR CO., U.S.A.
OK or NG
- OK : GO TO 4.
- NG : Repair or replace harness.
CHECK HARNESS CONTINUITY 2
1. Check continuity between automatic drive positioner control unit connector M33 terminals 5, 21 and door mirror RH connector D107 terminals 7, 8.
  5 (R/B) - 7 (R/B) : Continuity should exist .

  21 (L/W) - 8 (L/W) : Continuity should exist .
2. Check continuity between automatic drive positioner control unit connector M33 terminals 5, 21 and ground.
  5 (R/B) - Ground : Continuity should not exist .

  21 (L/W) - Ground : Continuity should not exist .

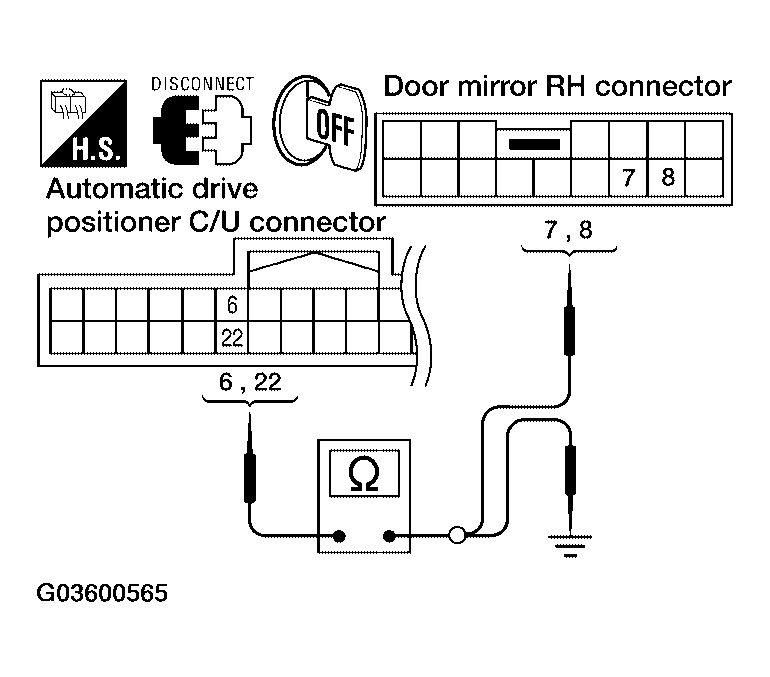

Fig 4: Checking Continuity Between Automatic Drive Positioner Control Unit Connector M33 Terminals 5, 21 And Door Mirror RH Connector D107 Terminals 7 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
- OK : Replace door mirror RH. Refer to "DOOR MIRROR ASSEMBLY ".
- NG : Repair or replace harness.
