Sliding Switch Circuit Inspection

With CONSULT-II

With "SLIDE SW-FR, SLIDE SW-RR" on the DATA MONITOR, operate the sliding switch to check ON/OFF operation.

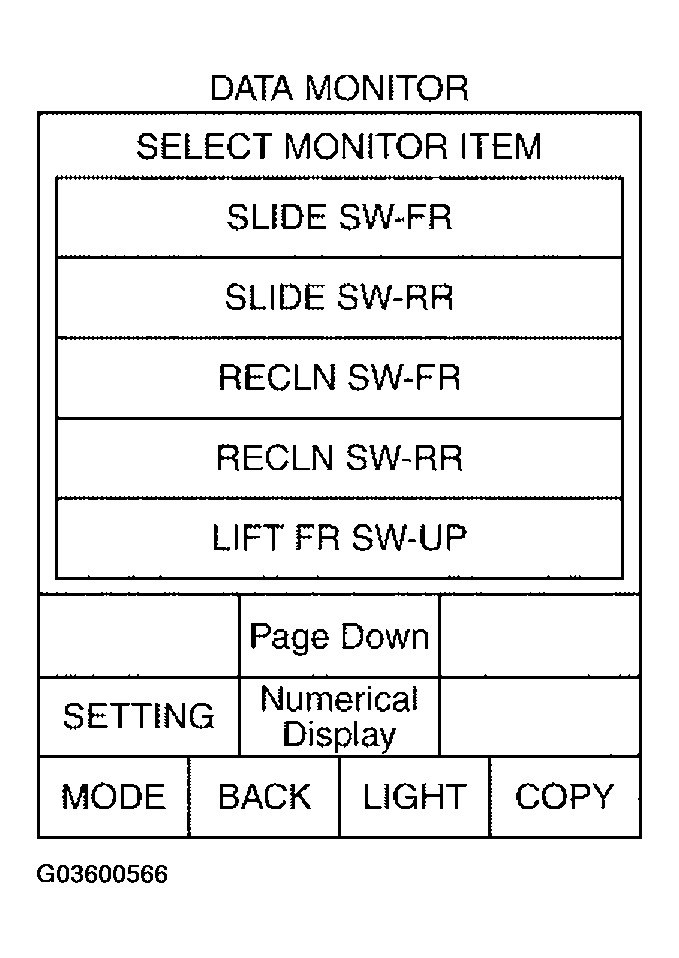

Fig 1: Identifying Display - Data Monitor

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

1. Turn ignition switch OFF.
2. Check voltage between driver seat control unit connector and ground.
   Fig 2: Checking Voltage Between Driver Seat Control Unit Connector And Ground

   Courtesy of NISSAN MOTOR CO., U.S.A.
   VOLTAGE BETWEEN DRIVER SEAT CONTROL UNIT CONNECTOR AND GROUND REFERENCE



   Connector	Terminal (Wire color)		Condition	Voltage (V) (Approx.)
   	(+)	(-)
   P2	11 (R/B)	Ground	Sliding switch ON (BACKWARD operation)	0
   			Other than above	Battery voltage
   	26 (P/B)		Sliding switch ON (FORWARD operation)	0
   			Other than above	Battery voltage

OK or NG

• OK : Sliding switch circuit is OK.
• NG : GO TO 2.

1. Disconnect driver seat control unit connector and power seat switch LH connector.
2. Check continuity between driver seat control unit connector P2 terminals 11, 26 and power seat switch LH connector P8 terminals 1, 7.

   11 (R/B) - 7 (R/B) : Continuity should exist  .

   26 (P/B) - 1 (P/B) : Continuity should exist  .

3. Check continuity between driver seat control unit connector P2 terminals 11, 26 and ground.

   11 (R/B) - Ground : Continuity should not exist  .

   26 (P/B) - Ground : Continuity should not exist. LIIA1125E

Fig 3: Checking Continuity Between Driver Seat Control Unit Connector P2 Terminals 11, 26 And Power Seat Switch LH Connector P8 Terminals 1 And Ground

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK : GO TO 3.
• NG : Repair or replace harness.

Check continuity between power seat switch LH as follows.

Fig 4: Checking Continuity Between Power Seat Switch LH

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

• OK : Check the condition of the harness and connector.
• NG : Replace power seat switch LH. Refer to "REMOVAL AND INSTALLATION ".
