Body Sealing: Description

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of sealant and not to allow other unaffected parts to come into contact with the sealant.

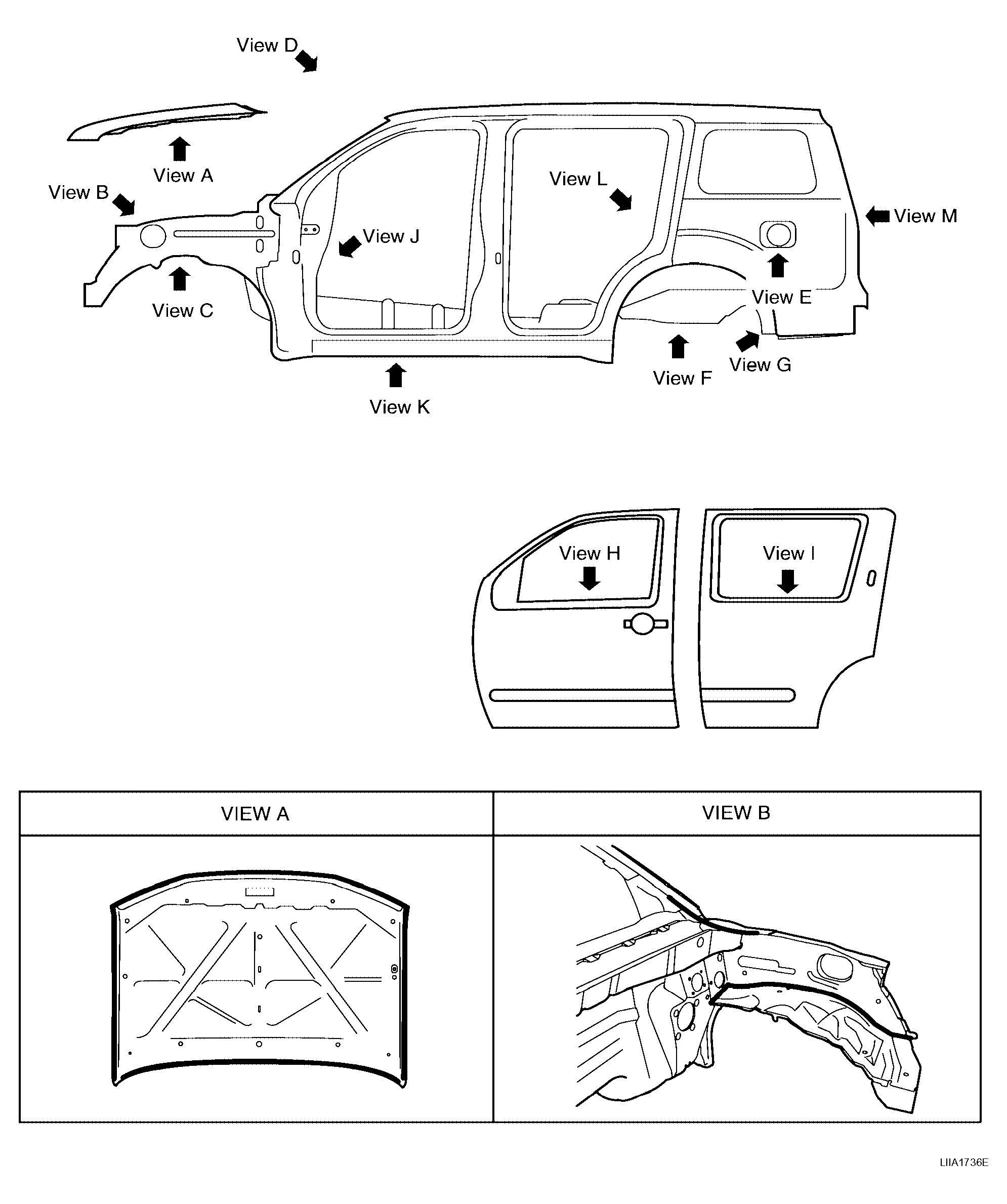

Fig 1: Body Sealing Area Views (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

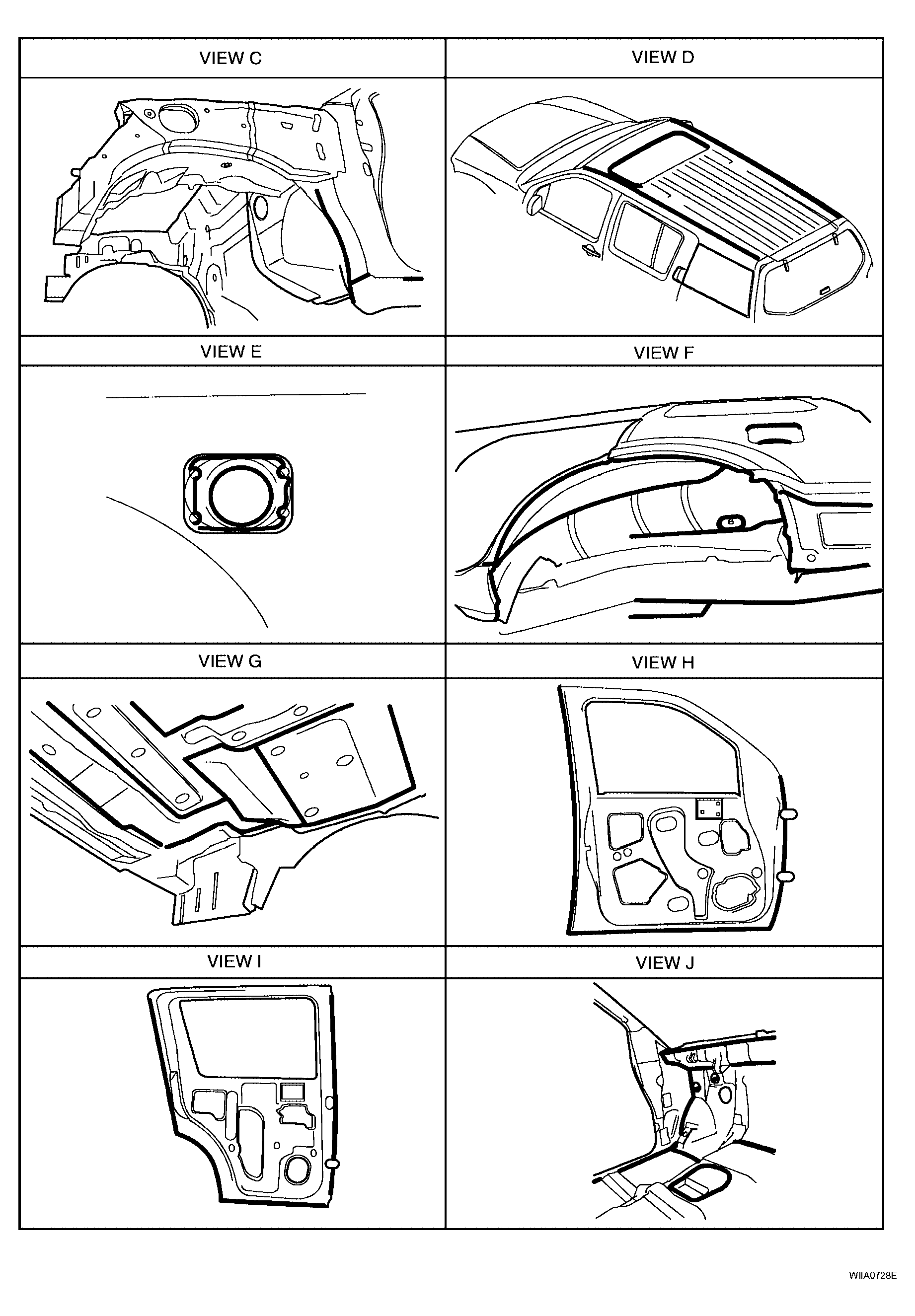

Fig 2: Body Sealing Area Views (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

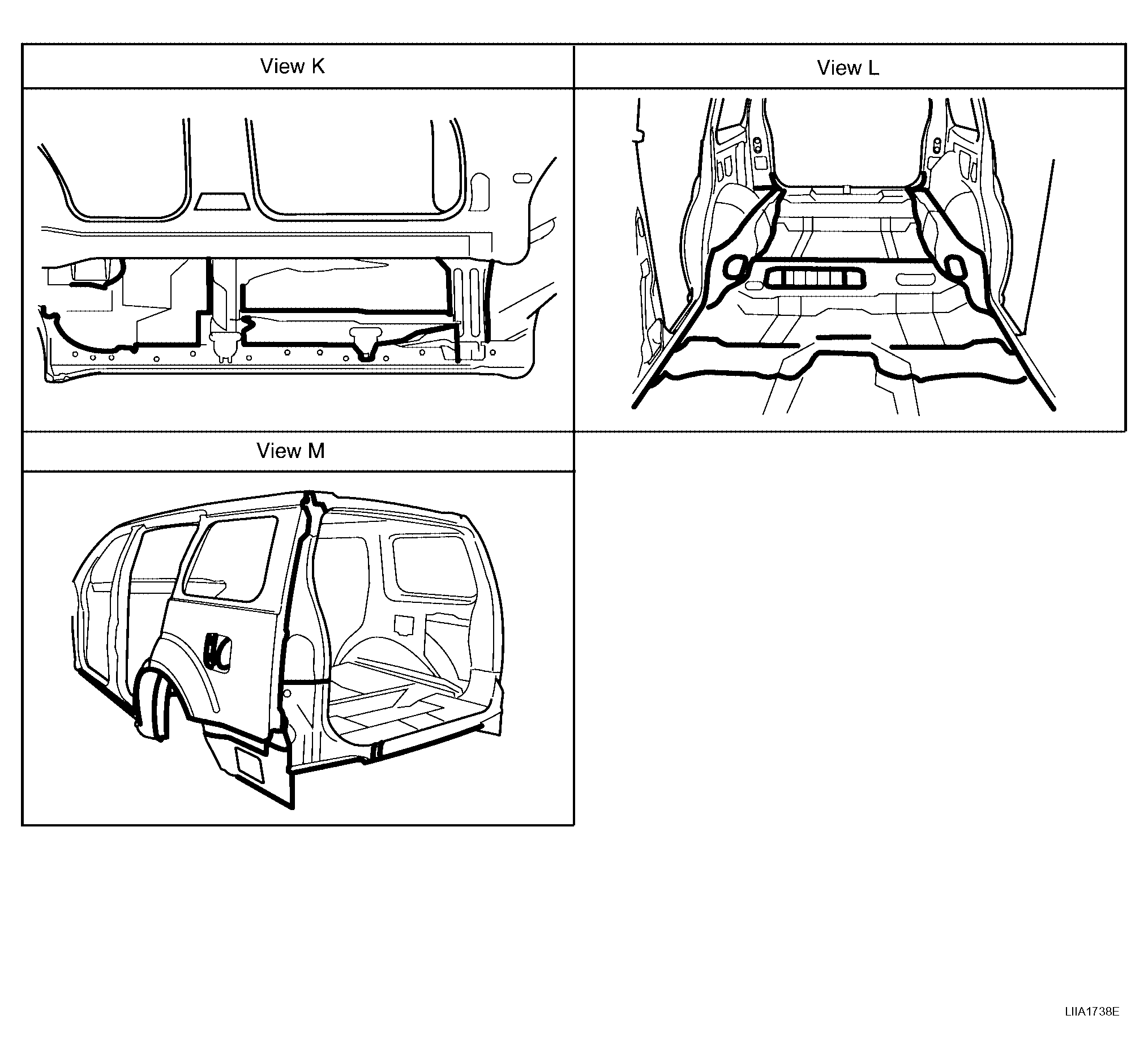

Fig 3: Body Sealing Area Views (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
