Diagnostic Procedure 4

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For diagnostic procedure 4, see Fig 1-Fig 4 .

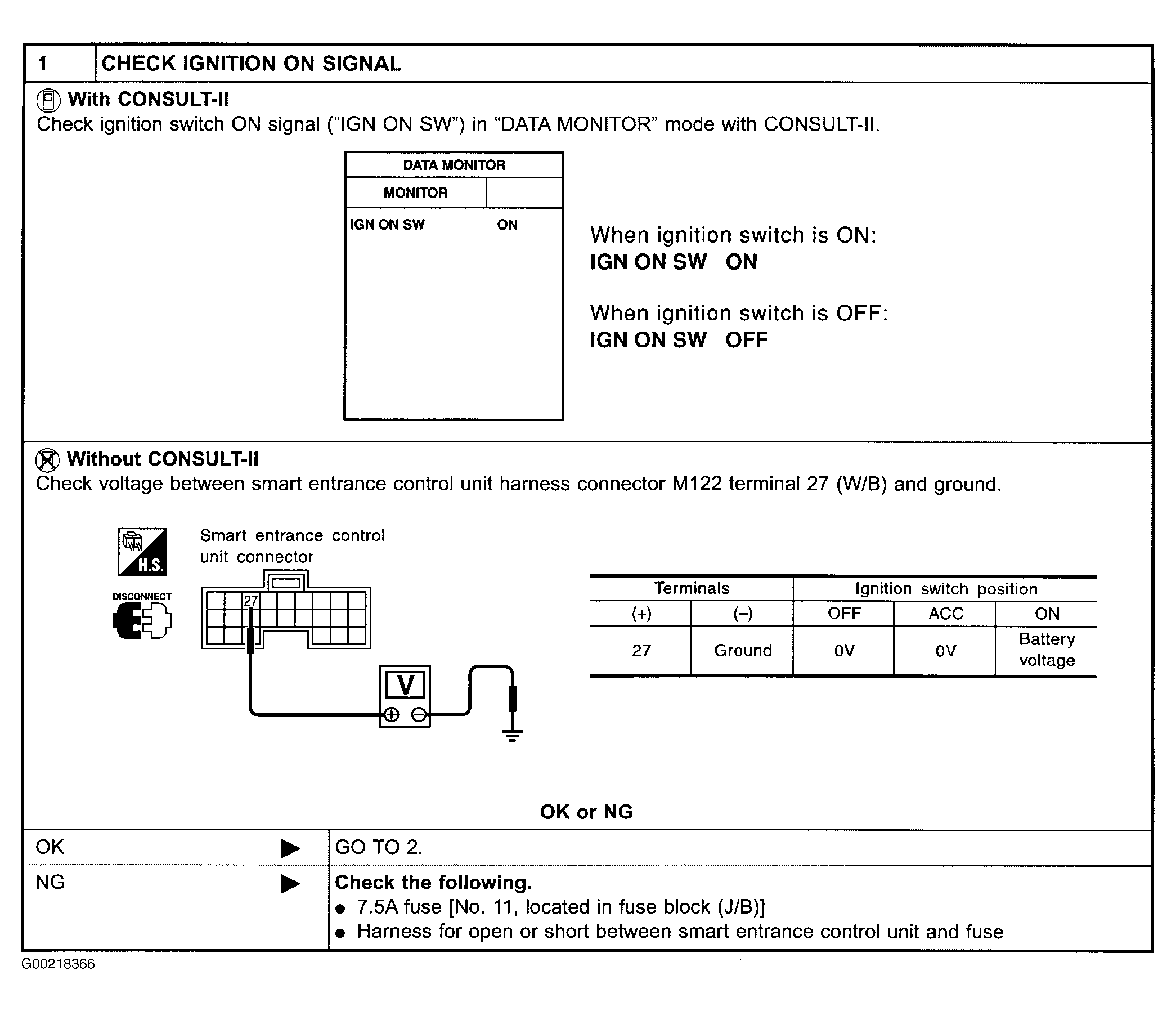

Fig 1: Identifying Diagnostic Procedure 4, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

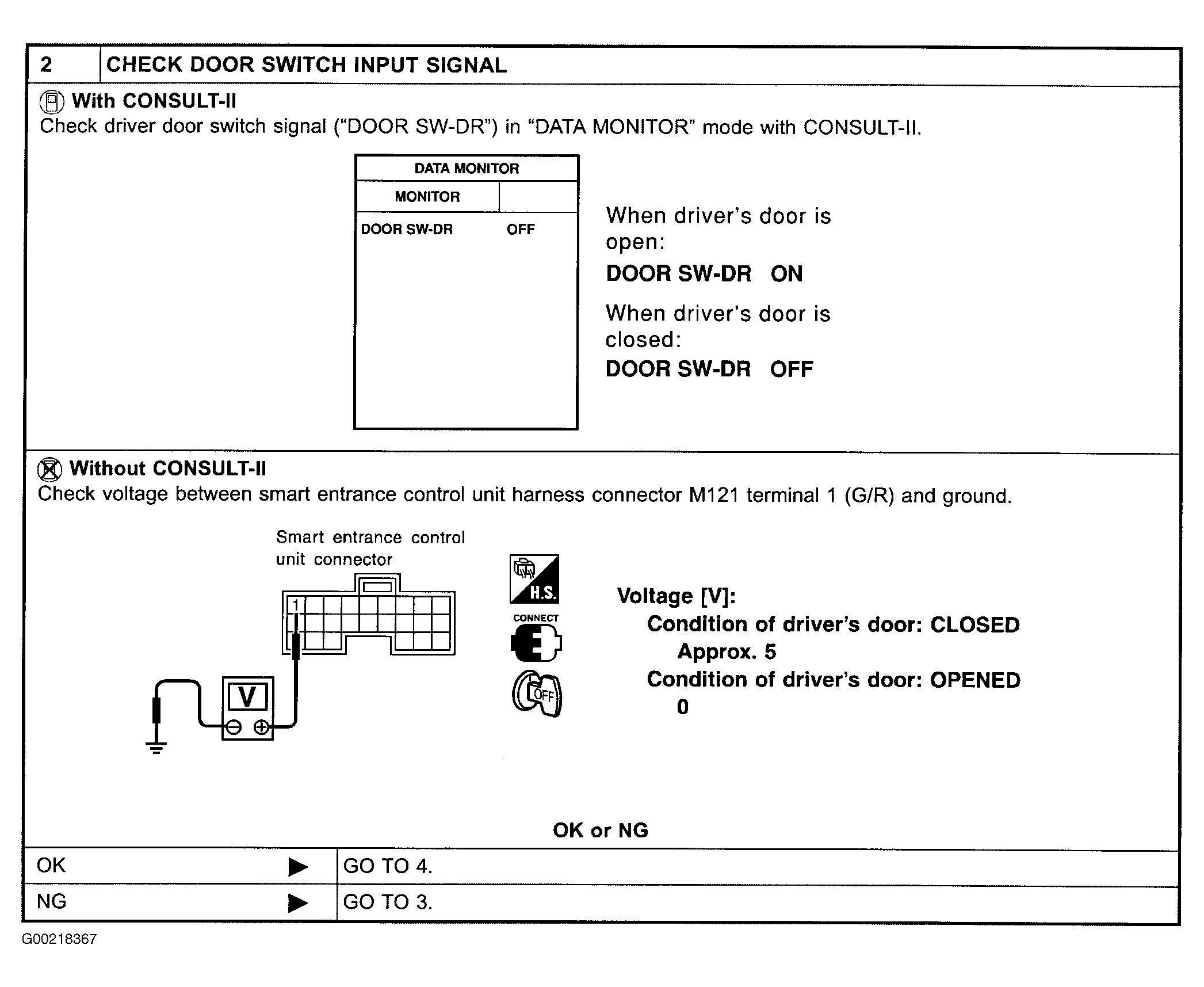

Fig 2: Identifying Diagnostic Procedure 4, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.

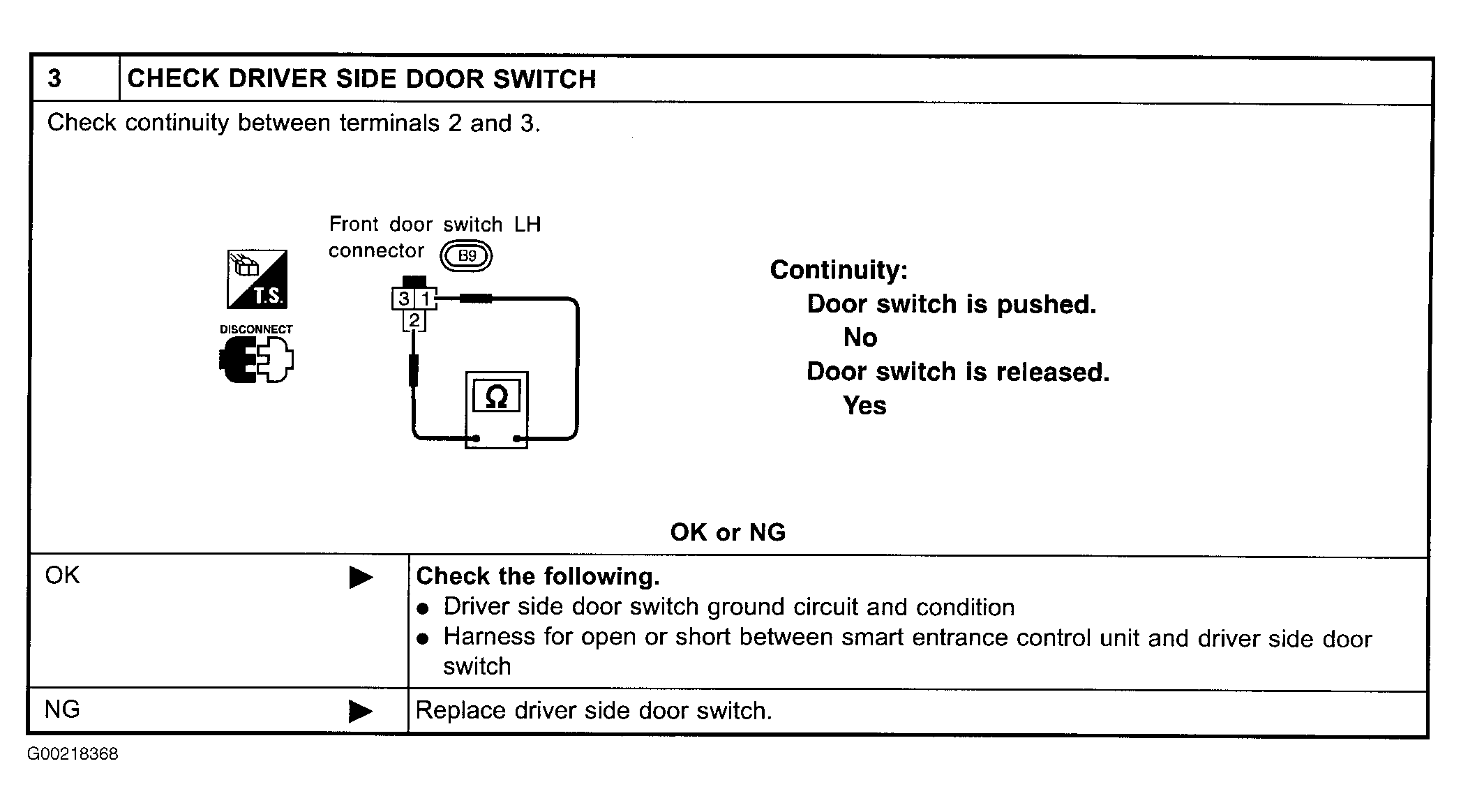

Fig 3: Identifying Diagnostic Procedure 4, Step 3

Courtesy of NISSAN MOTOR CO., U.S.A.

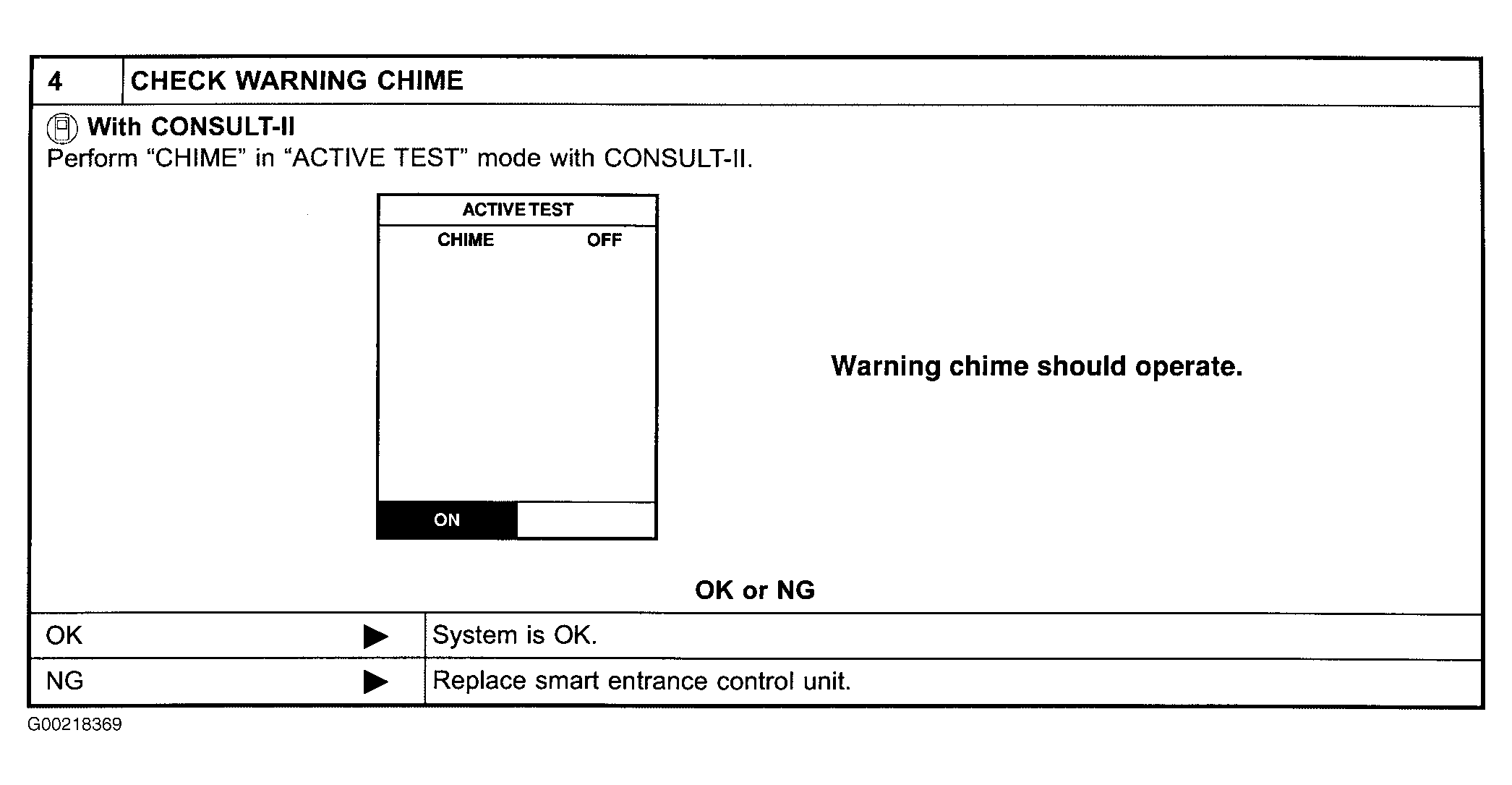

Fig 4: Identifying Diagnostic Procedure 4, Step 4

Courtesy of NISSAN MOTOR CO., U.S.A.
