Consult-II Function Application Table

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Do not use the "function test" for diagnosis. For more information, refer to CONSULT-II OPERATION MANUAL.
When CONSULT-II is connected and communicating, ABS warning lamp, SLIP indicator lamp, and VDC OFF indicator lamp turn on, and when the communication is interrupted, the lamps will turn off after approximately 2 to 3 sec.
When the self-diagnosis, data monitor, or active test functions are being executed, ABS, TCS, and VDC control is not performed.
When using CONSULT-II to perform VDC/TCS/ABS control unit self-diagnosis, active test, work support, etc., first stop engine, connect CONSULT-II, and select "ABS".
When an error is shown by the CONSULT-II SELF-DIAG RESULTS and CONSULT-II is used to perform an active test, an engine system malfunction may be shown, but restarting engine will return the status to normal.
When data monitoring is executed by using CONSULT-II, a malfunction code may be indicated as the result of the real time diagnosis. In such a case, execute data monitoring in manual mode. Refer to CONSULT-II Operation Manual .

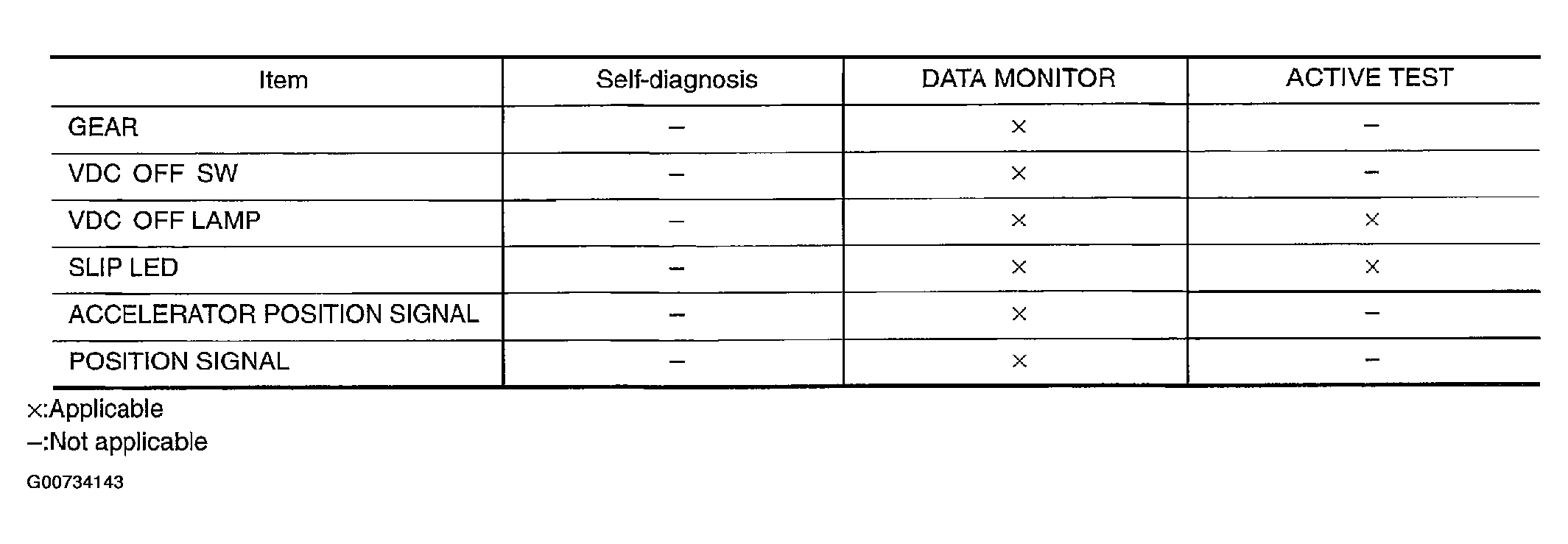

Fig 1: CONSULT-II Function Application Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

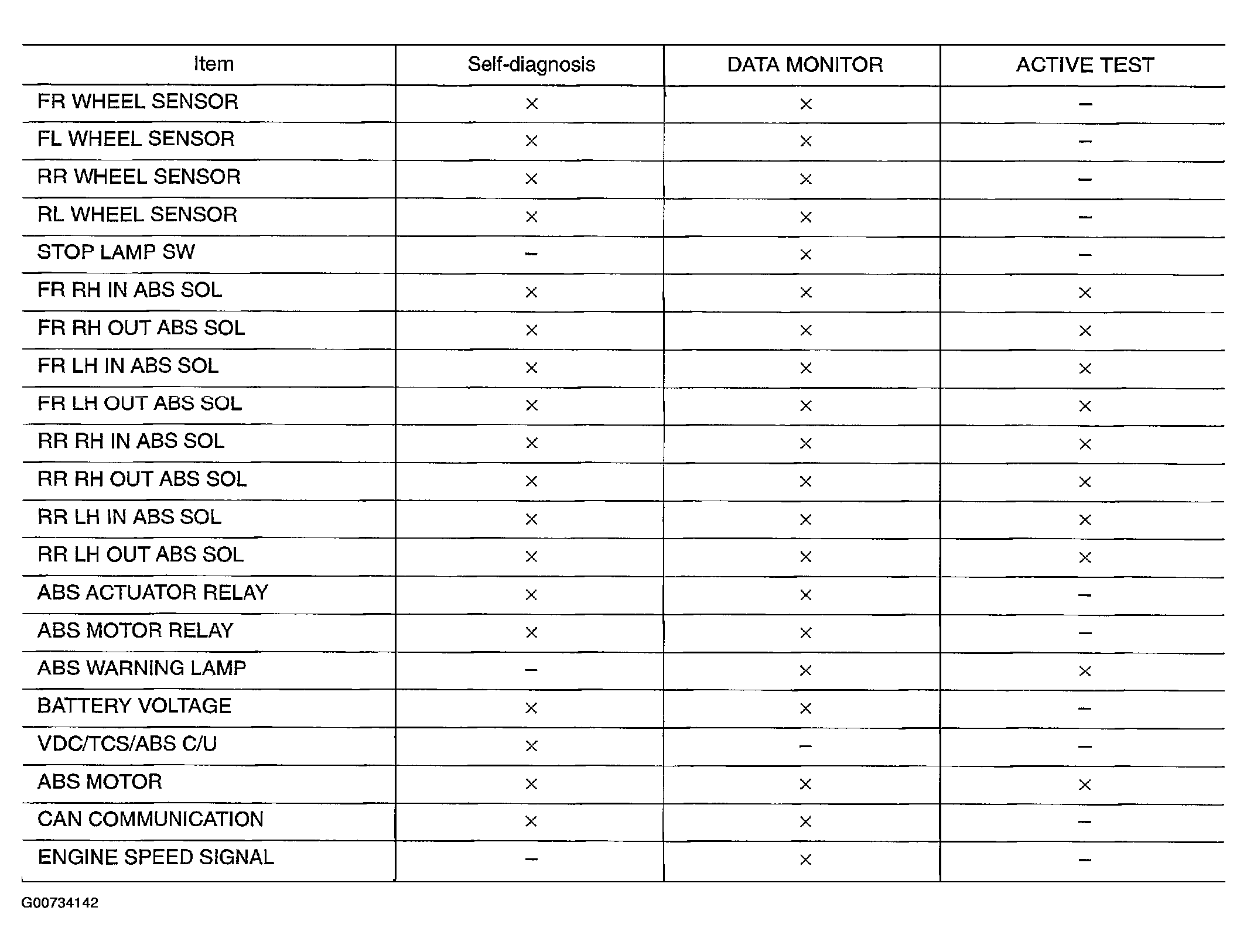

Fig 2: CONSULT-II Function Application Chart (2 Of 2)

Courtesy of NISSAN MOTOR CO., U.S.A.
