Front Lower Ball Joint: Components

WARNING: This page is about a different car, the 2006 Scion tC. However, it is still accessible from the selected car via links, so may be relevant.

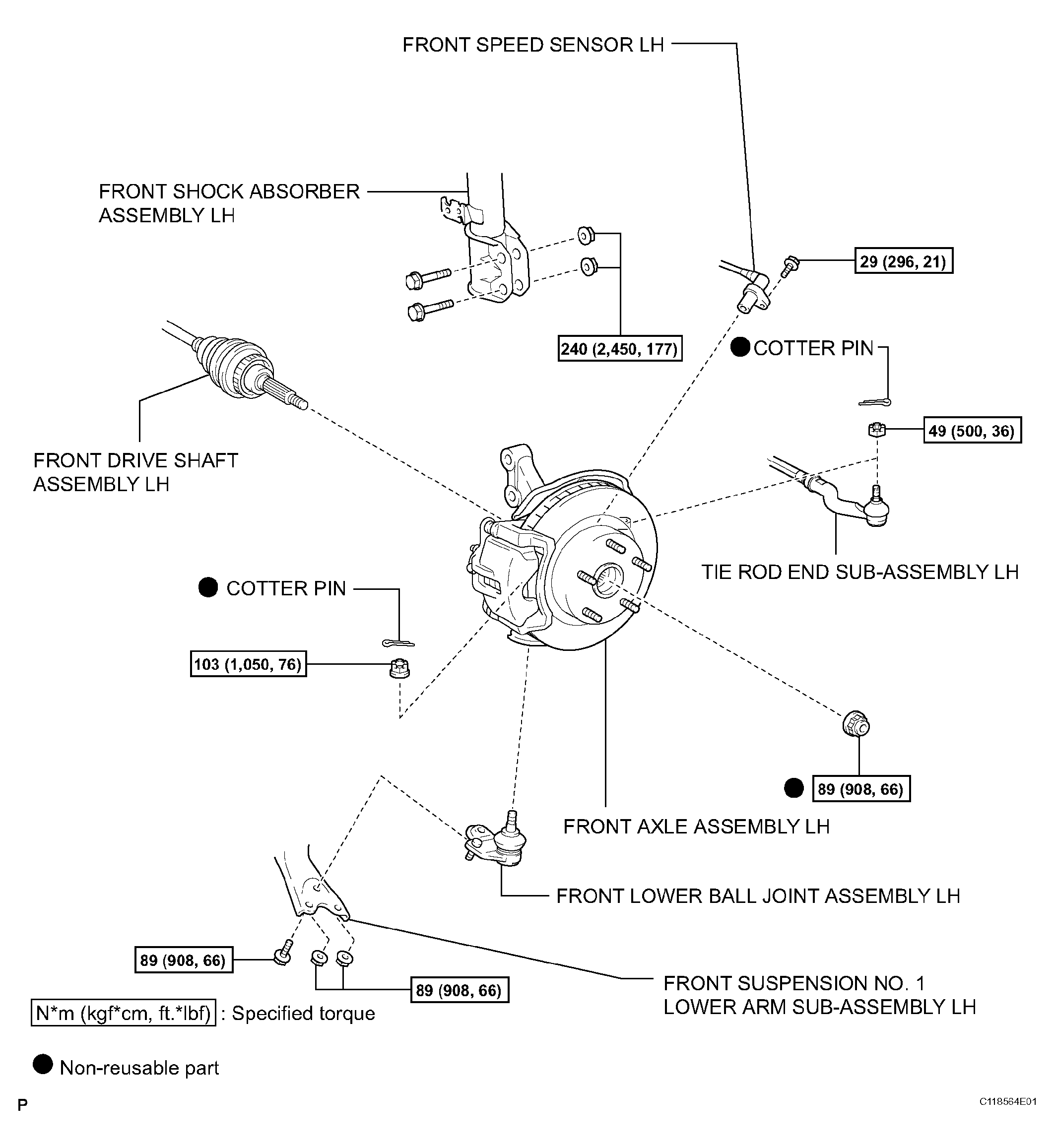

Fig 1: Identifying Front Lower Ball Joint Components
G04222981Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
