Front Seat Assembly: Installation

HINT:

• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.

1. INSTALL FRONT SEAT ASSEMBLY
   1. Place the seat in the cabin.
   2. Connect the connectors under the seat.
   3. Tighten the 5 bolts in the order indicated in the illustration.

   Torque: 40 N*m (408 kgf*cm, 30 ft.*lbf)

   NOTE: Be careful not to damage the vehicle body.
   Fig 1: Tightening Bolts

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. INSPECT AND ADJUST SEAT SLIDE ADJUSTER LOCKS
   1. Check that during sliding operation of the front seat, the left and right adjusters move together smoothly and lock simultaneously.

   If the adjusters do not lock simultaneously, loosen the seat fixation bolts to adjust the adjuster's positions.

3. INSTALL SEAT TRACK BRACKET COVER OUTER LH
   1. Attach the 2 claws to install the bracket cover.

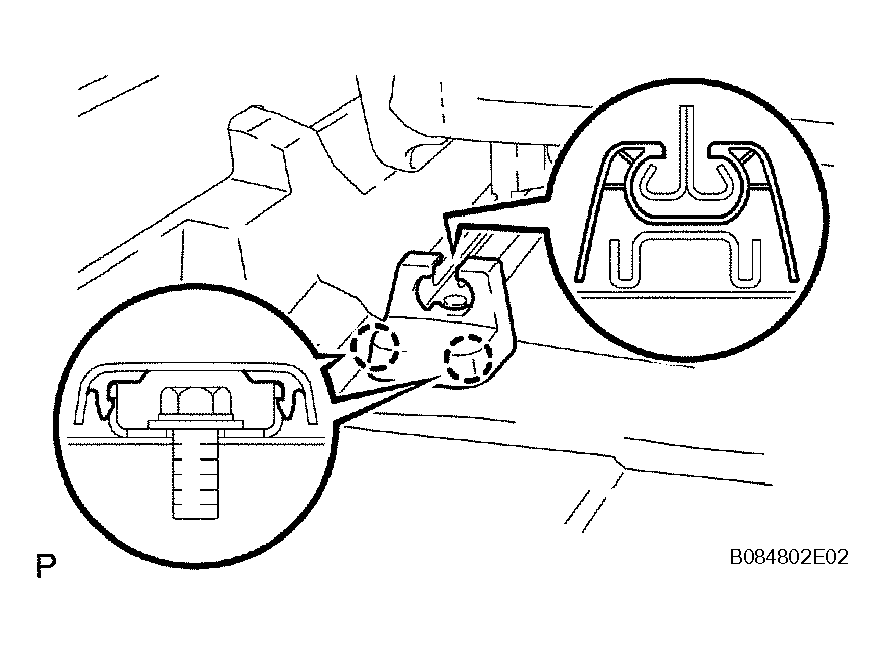

   Fig 2: Attaching Claws

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. INSTALL SEAT TRACK BRACKET COVER INNER LH
   1. Attach the 3 claws to install the bracket cover.
5. CONNECT CABLE TO NEGATIVE BATTERY TERMINAL
6. PERFORM INITIALIZATION
   1. Perform initialization (see INITIALIZATION ).

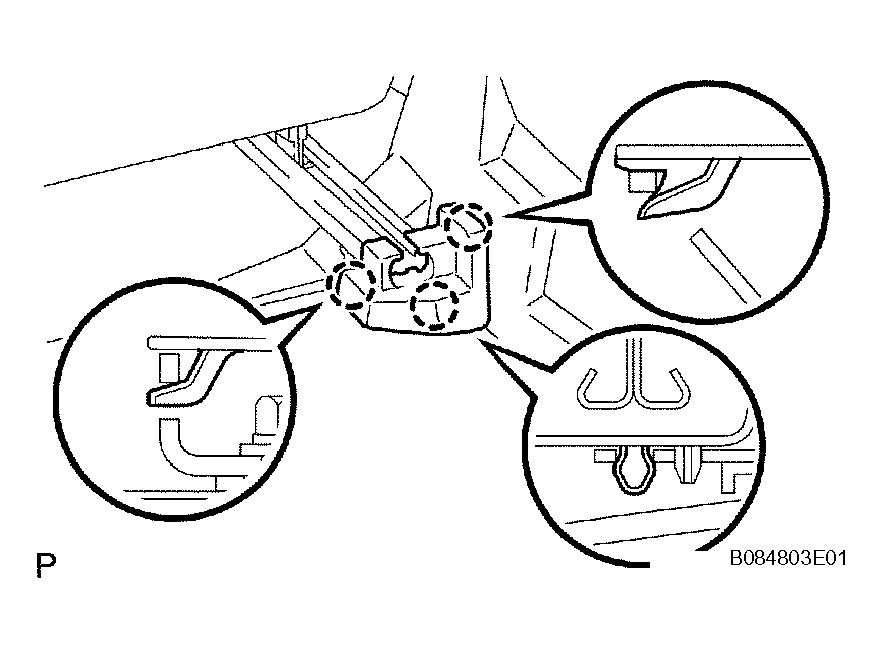

   Fig 3: Installing Bracket Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   NOTE: Certain systems need to be initialized after disconnecting and reconnecting the cable from the negative (-) battery terminal.
7. INSPECT SRS WARNING LIGHT
   1. Check the SRS warning light (see DIAGNOSIS SYSTEM ).
