Inspection Flow

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

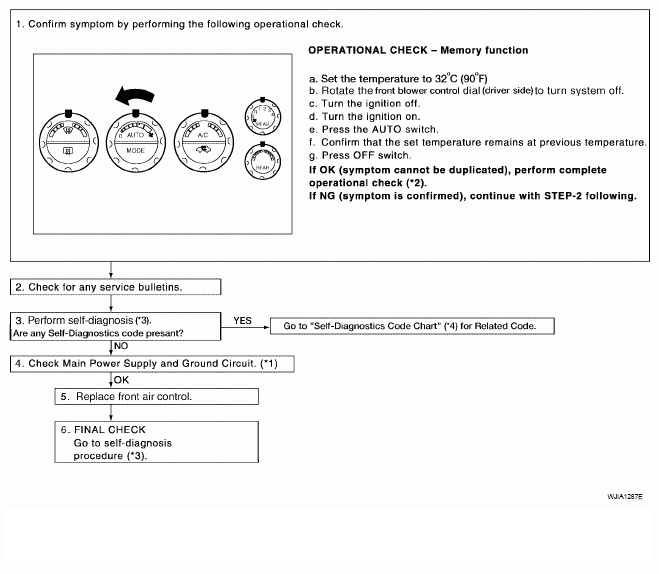

Fig 1: Inspection Flow Chart

G04757996

Courtesy of NISSAN MOTOR CO., U.S.A.

*1Power Supply and Ground Circuit for Front Air Control

*2 Operational Check

*3 A/C System Self-diagnosis Function

*4 SELF-DIAGNOSIS CODE CHART
