Pedal Reserve Distance

WARNING: This page is about a different car, the 2004 Lexus ES 330. However, it is still accessible from the selected car via links, so may be relevant.

Release parking brake. With engine running, depress brake pedal and measure pedal reserve distance. Reserve distance is distance from floor pan to brake pedal when fully depressed. See MINIMUM BRAKE PEDAL RESERVE DISTANCE SPECIFICATIONS table. If reserve distance is incorrect, trouble shoot brake system.

MINIMUM BRAKE PEDAL RESERVE DISTANCE SPECIFICATIONS

Application

⁽¹⁾ In. (mm)

ES 330

2.76 (70)

ES 330 ⁽²⁾

2.48 (63)

⁽¹⁾	With 110 lbs. (50 kg) applied.

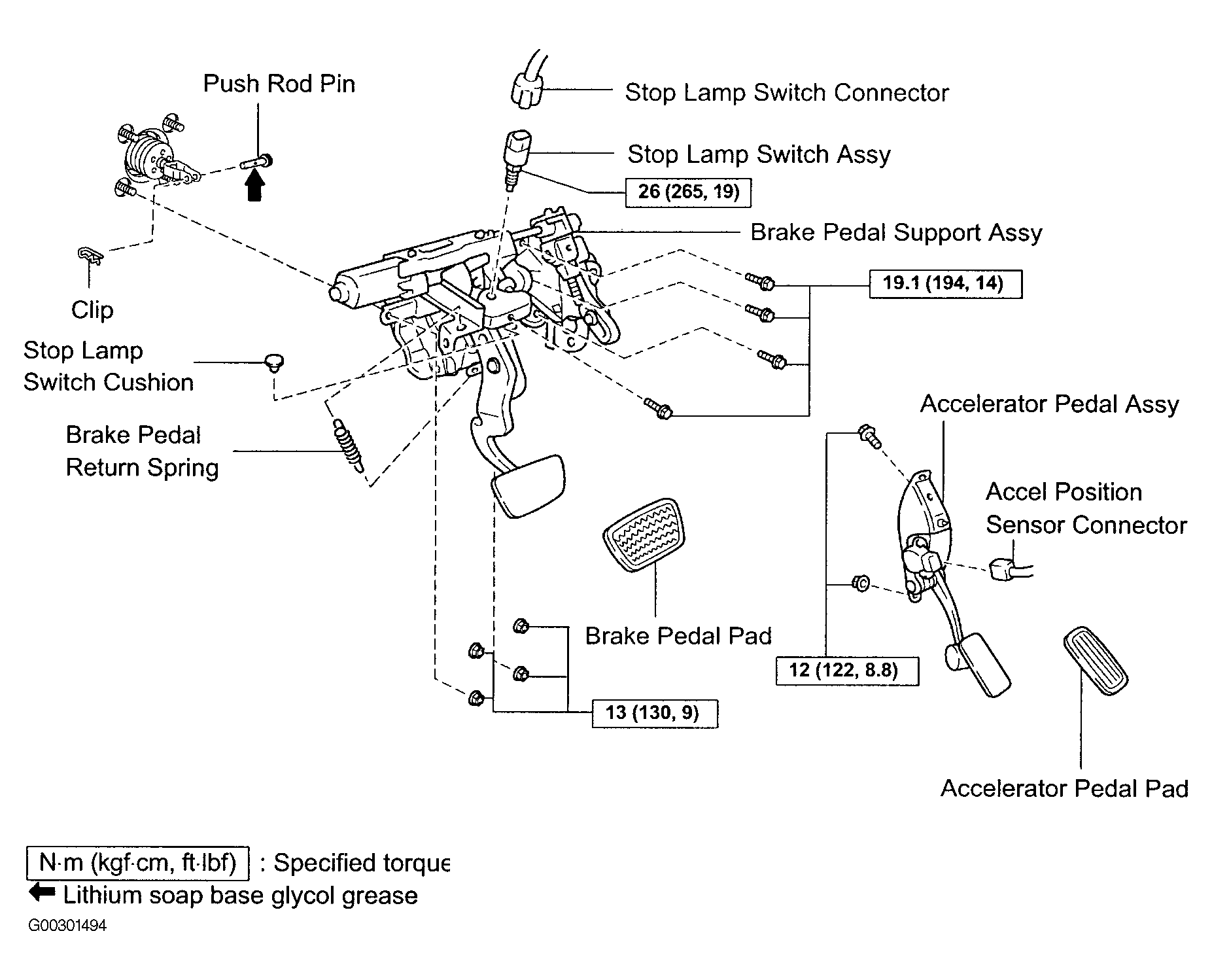

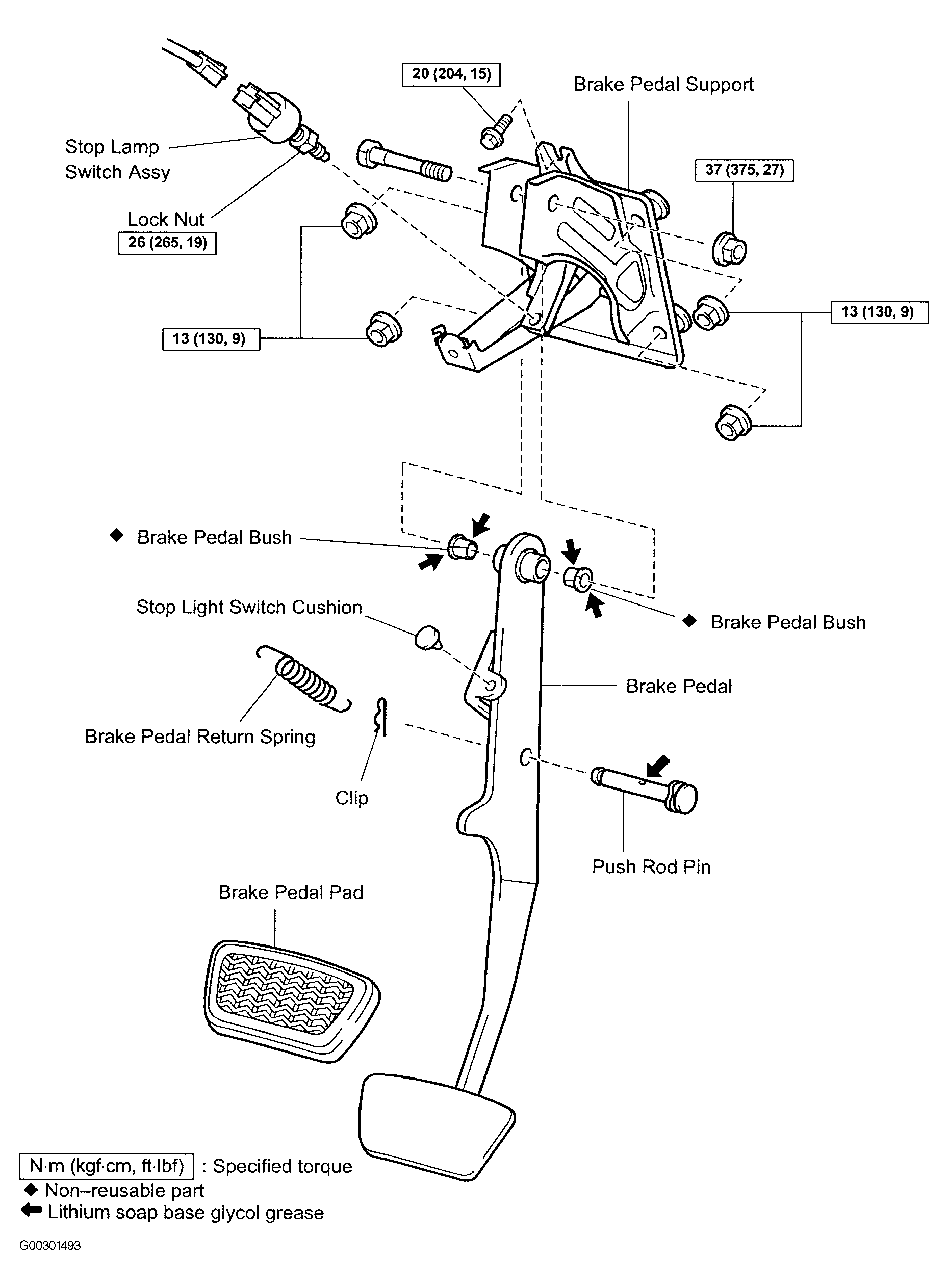

⁽²⁾	With Accelerator & Brake Pedal assembly (production date from August, 2002). See Fig 1- Fig 2 .

Fig 1: Brake Pedal Support Assembly

Fig 2: Accelerator & Brake Pedal Assembly
