Section 286 (Charging System - Generators & Regulators): Overhaul: Generator: 2002

WARNING: This page is about a different car, the 2004 Nissan Pathfinder, 2003 Nissan Pathfinder, and 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

For overhaul, see Fig 1.

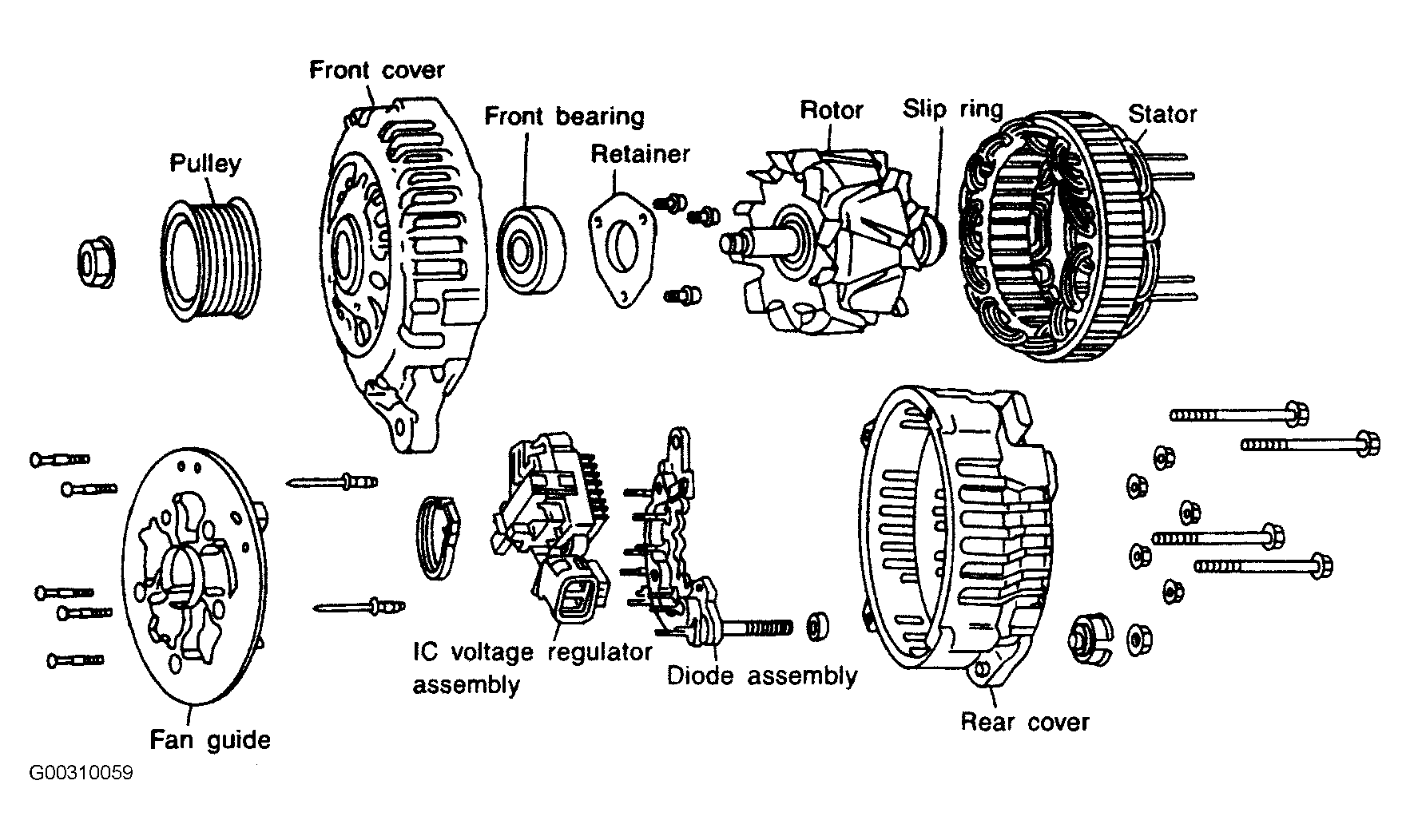

Fig 1: Exploded View Of Generator (2002)

Courtesy of NISSAN MOTOR CO., U.S.A.
