Torque Specifications
WARNING: This page is about a different car, the 2003 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

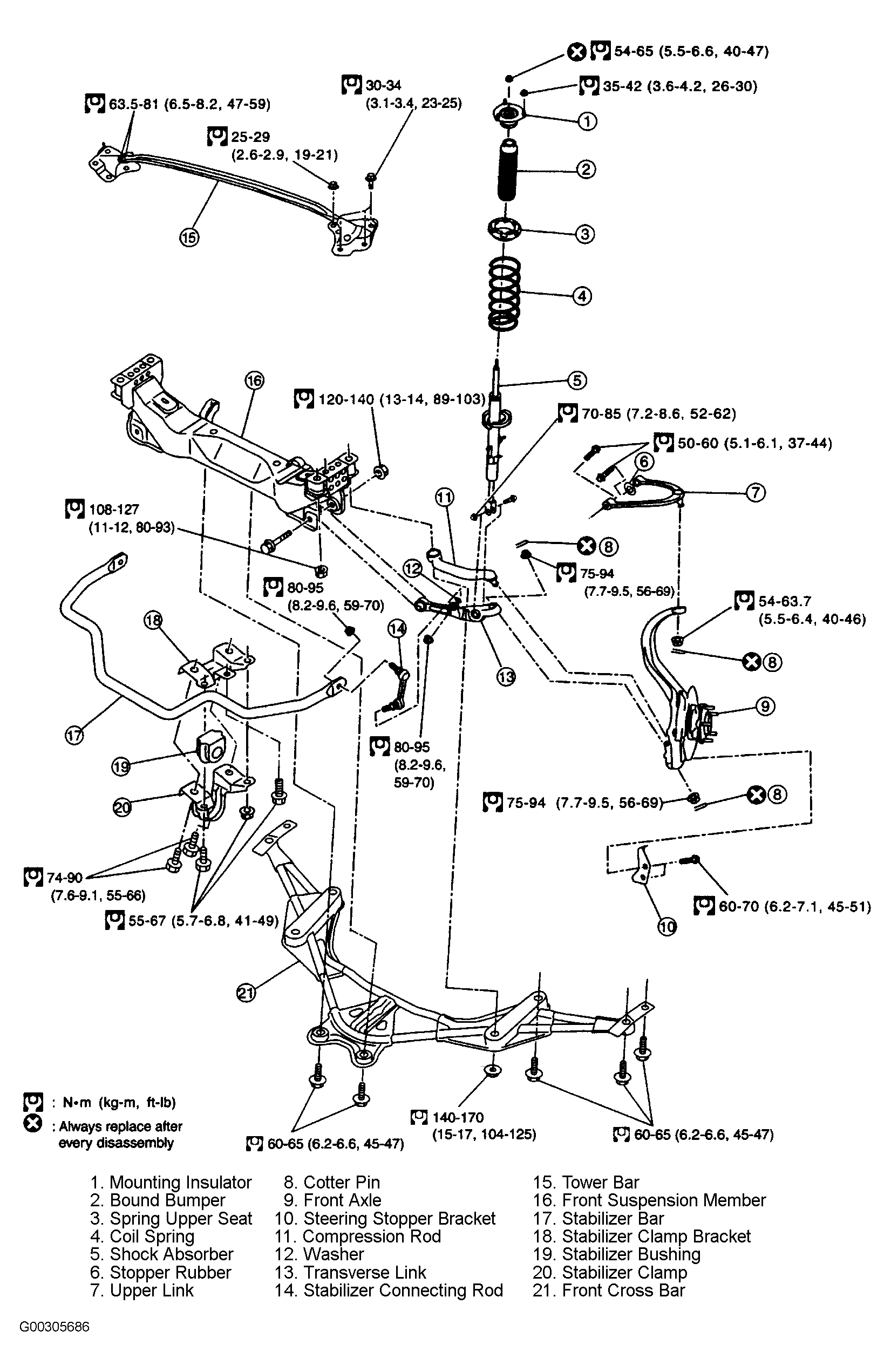

TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | ||
|---|---|---|---|
| Ball Joint Stud Bolt/Nut | 40-46 (54-64) | ||
| Compression Rod (Inner) | 104-125 (140-170) | ||
| Compression Rod (Outer) | 56-69 (75-94) | ||
| Front Cross Bar Bolt/Nut | (1) | ||
| Lower Ball Joint Nut | 56-69 (75-94) | ||
| Stabilizer Bar-To-Connecting Rod Nut | 59-70 (80-95) | ||
| Stabilizer Bar "U" Clamp Bolt | (1) | ||
| Strut Piston Rod Nut | 40-47 (54-65) | ||
| Strut-To-Body Nut | 26-30 (35-42) | ||
| Strut-To-Traverse Link Nut | 52-62 (70-85) | ||
| Suspension Member-To Body Nut | 80-93 (108-127) | ||
| Tie Rod Lock Nut | 59-72 (79-98) | ||
| Tie Rod Stud Nut | 22-28 (30-39) | ||
| Tower Bar Center Bolt | 47-59 (63-81) | ||
| Tower Bar Nut | 19-21 (25-29) | ||
| Tower Bar Bolt | 23-25 (30-34) | ||
| Traverse Link-To-Suspension Member | 89-103 (120-140) | ||
| Upper Link-To-Suspension Member | 37-44 (50-60) | ||
| Upper Link Ball Joint | 40-46 (54-64) | ||
| Wheel Lug Nut | 73-93 (98-127) | ||
|
|||
