Data Monitor

WARNING: This page is about a different car, the 2004 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

For details of data monitor function, refer to "CONSULT-II Instruction Manual".

Operation Procedure

Turn ignition switch OFF.
Connect CONSULT-II and CONSULT-II CONVERTER to data link connector.
Turn ignition switch ON.
Touch "START" on display.
Touch "ABS" on display.
NOTE: Just after starting engine, or turning ignition switch ON, "ABS" may not be displayed on system selection screen even if "START" is touched. In this case, start again from step 1.
Touch "DATA MONITOR".
Return to monitor item selection screen, and touch any of "CONTROL UNIT INPUT ITEM", "MAIN ITEM" or "ITEM MENU SELECTION". Refer to "Display Item List". See Fig 1-Fig 3 .
Touch "START".
Screen of data monitor is displayed.

Display Item List

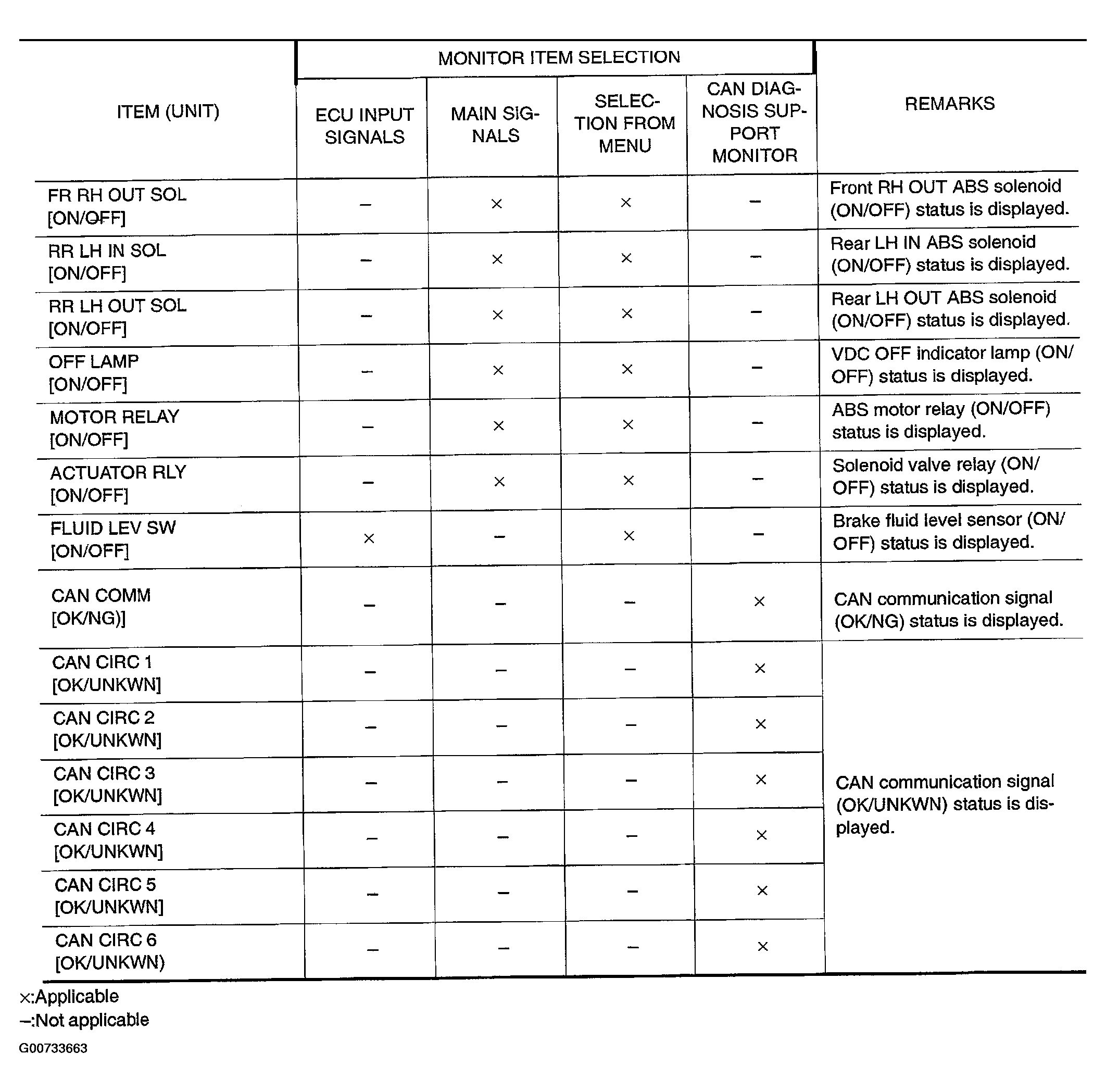

Fig 1: Display Item List (1 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

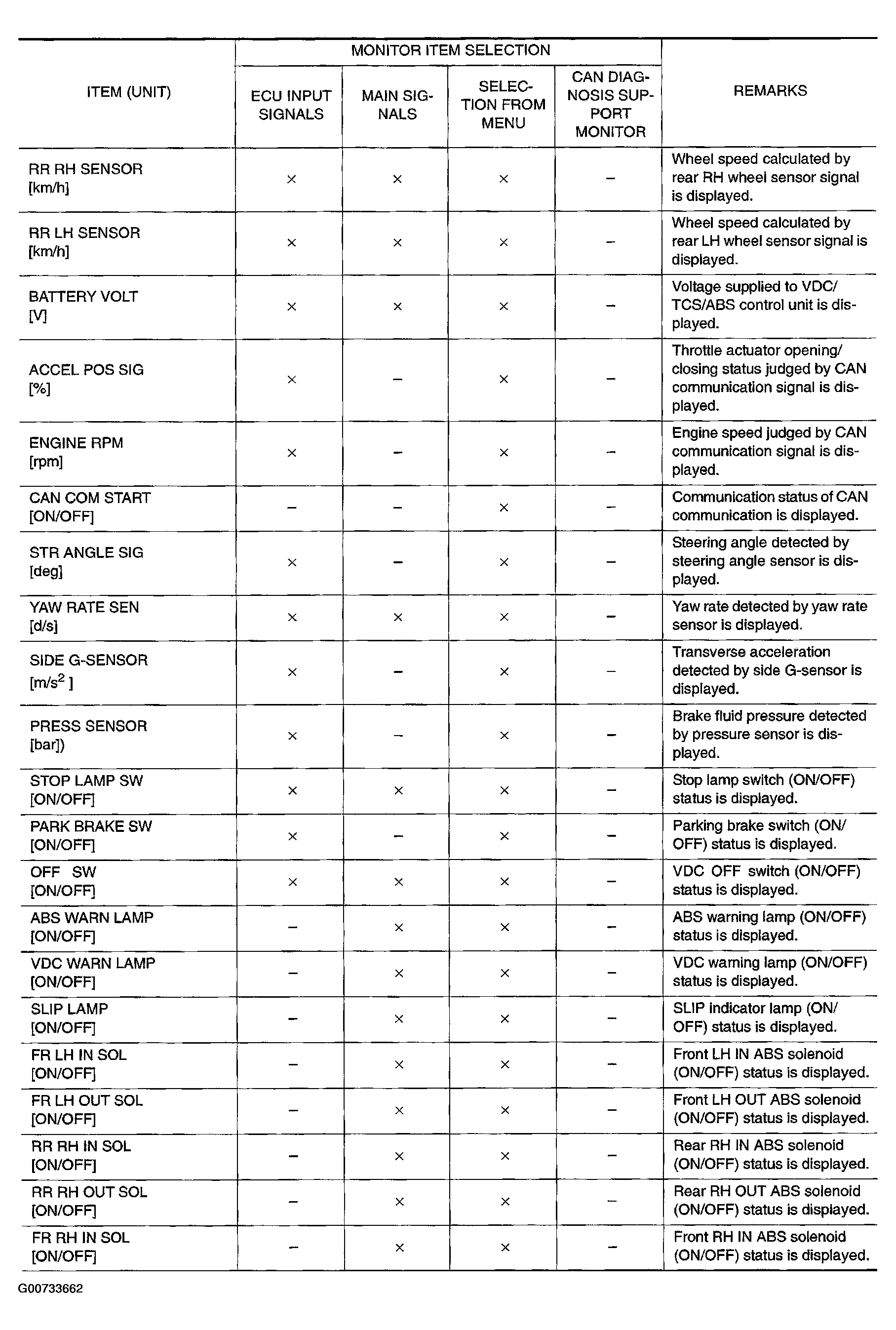

Fig 2: Display Item List (2 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.

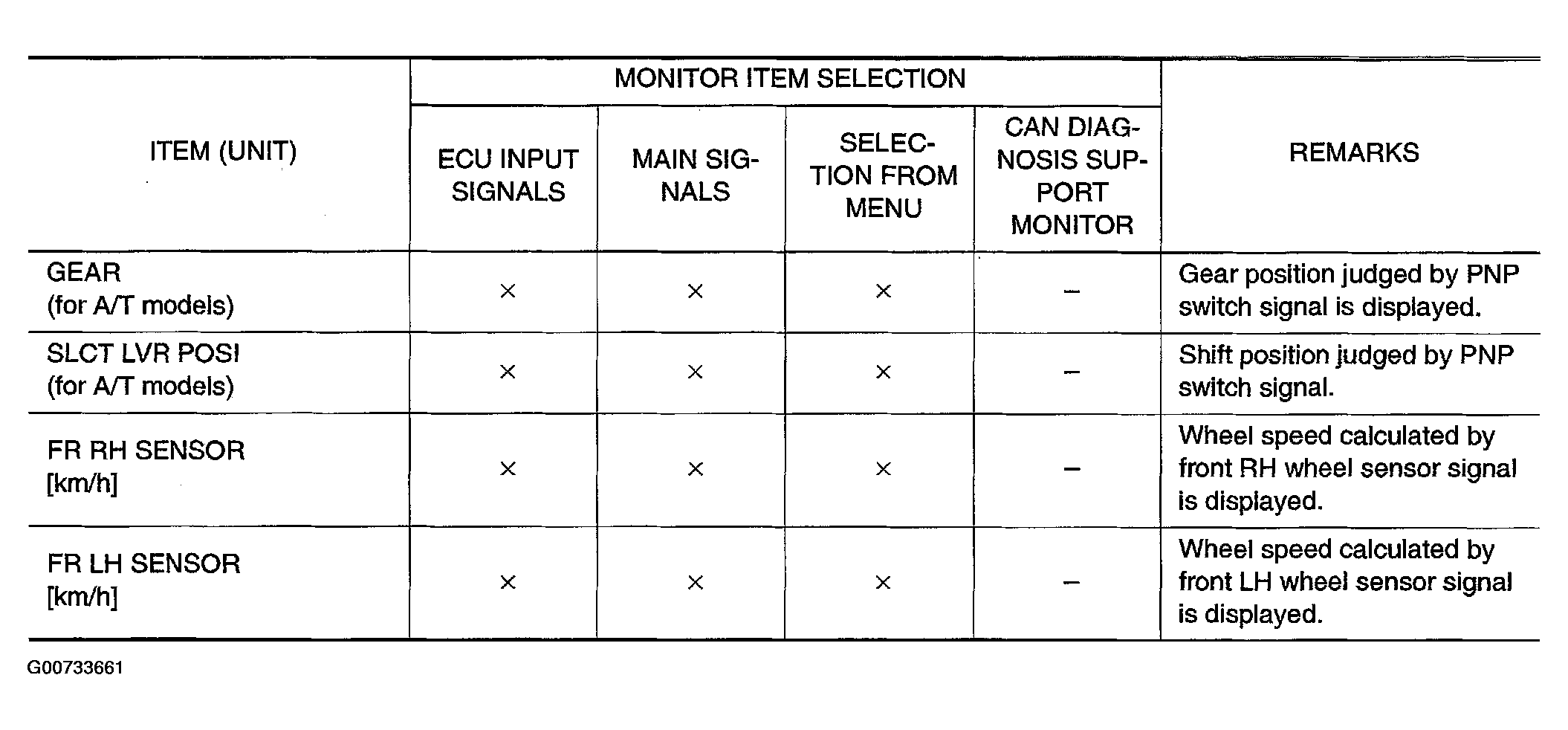

Fig 3: Display Item List (3 Of 3)

Courtesy of NISSAN MOTOR CO., U.S.A.
