Clutch And Band Chart
WARNING:
This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

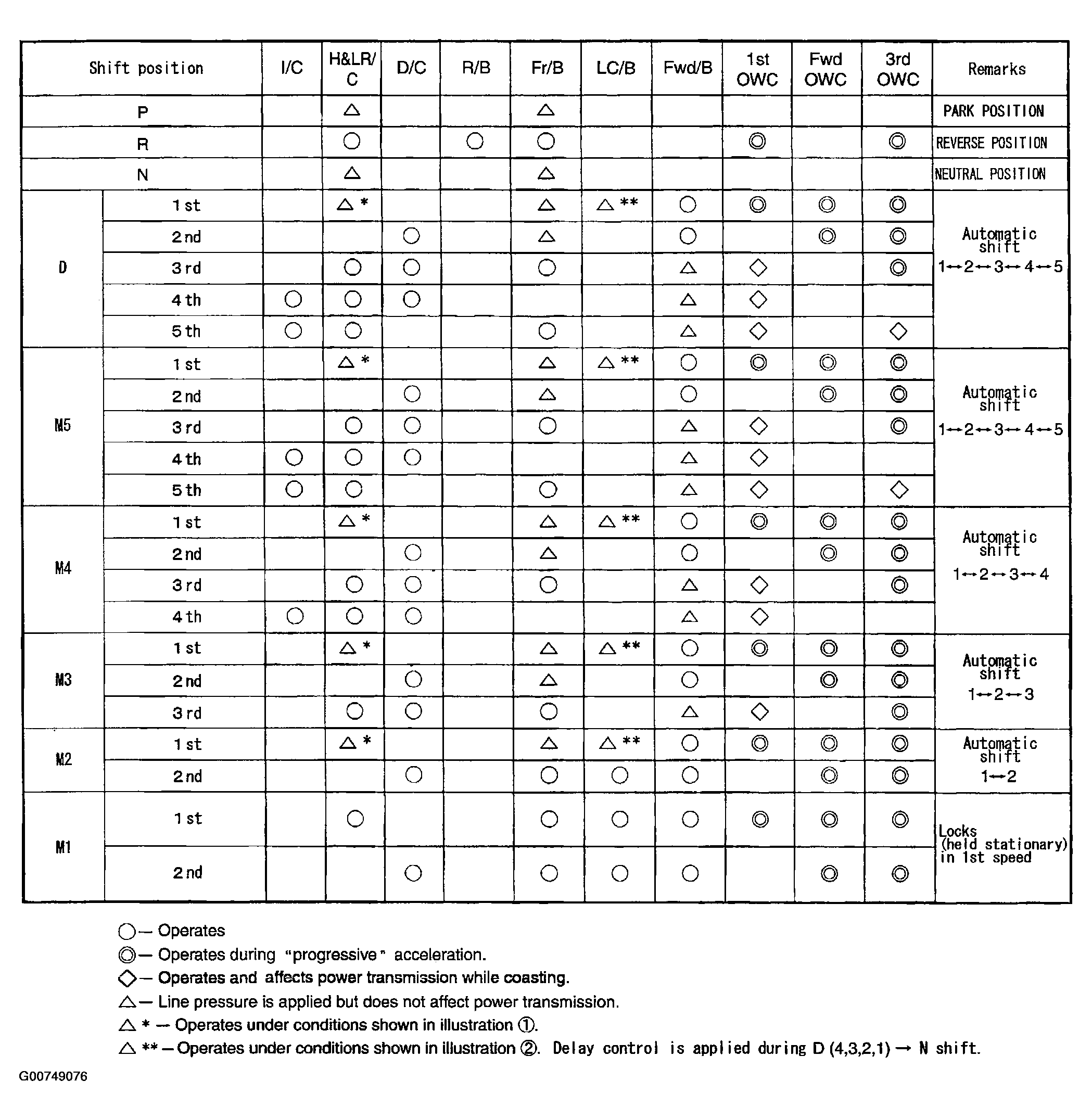

Fig 1: Clutch & Band Applications (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

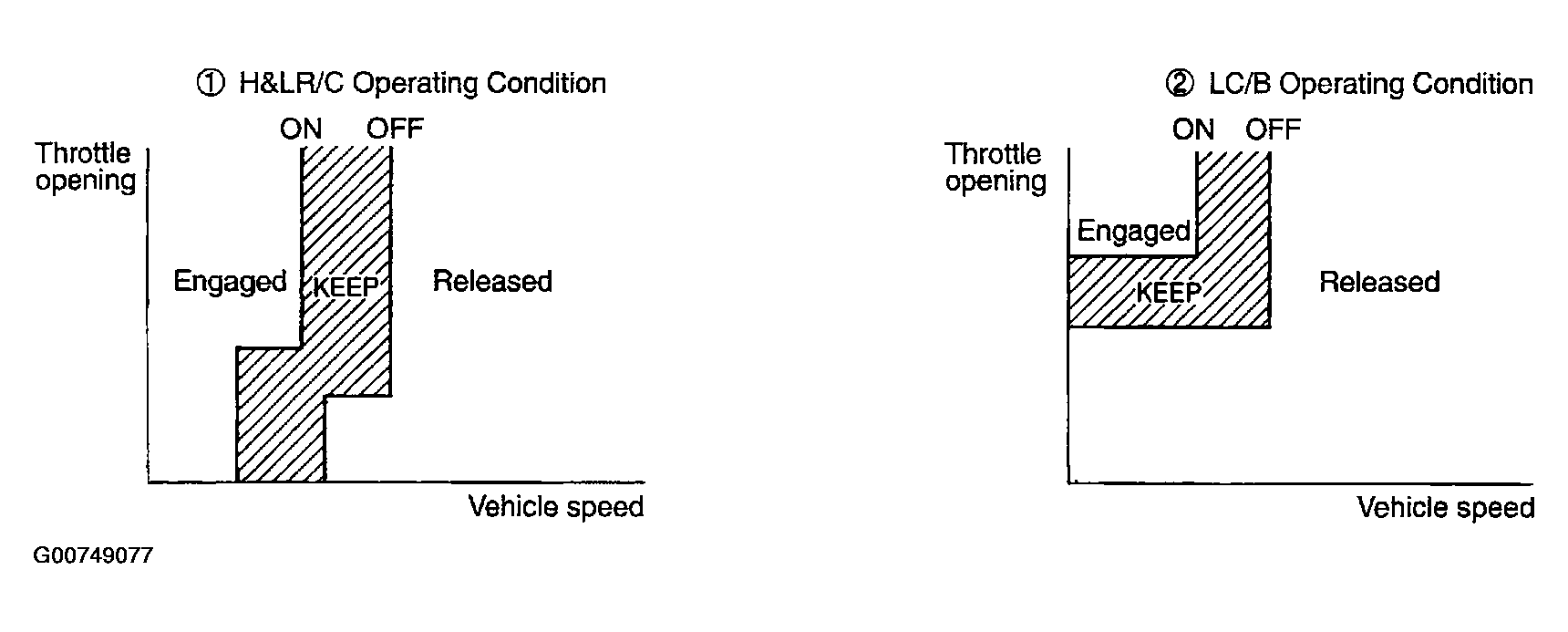

Fig 2: Clutch & Band Applications (2 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.
