Ambient Sensor

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

After disconnecting ambient sensor harness connector E58, measure resistance between terminals 2 and 1 at sensor side, using the table below.

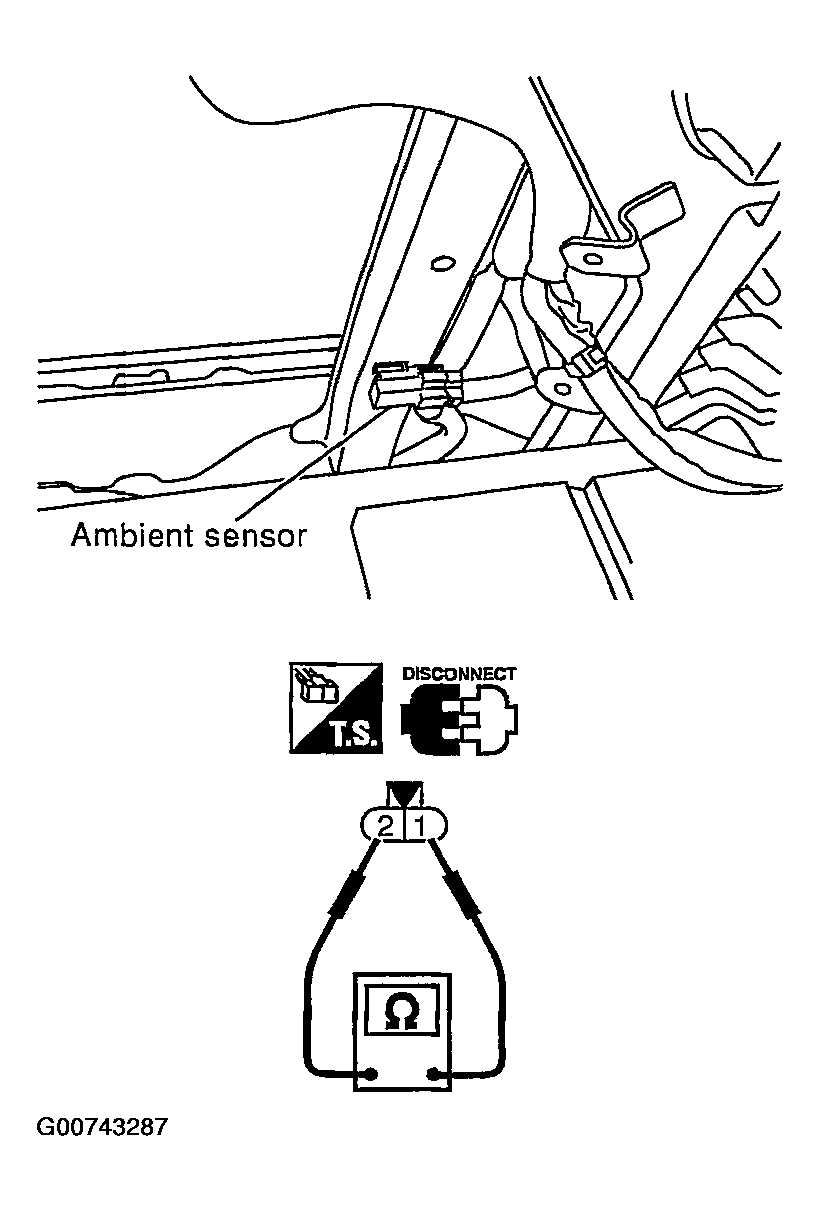

Fig 1: Measuring Resistance Between Terminals 2 & 1

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Determing Ambient Sensor Resistance Based On Temperature Reading

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace ambient sensor.
