In-Vehicle Sensor

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

After disconnecting in-vehicle sensor harness connector M68, measure resistance between terminals 1 and 2 at sensor side, using the table below.

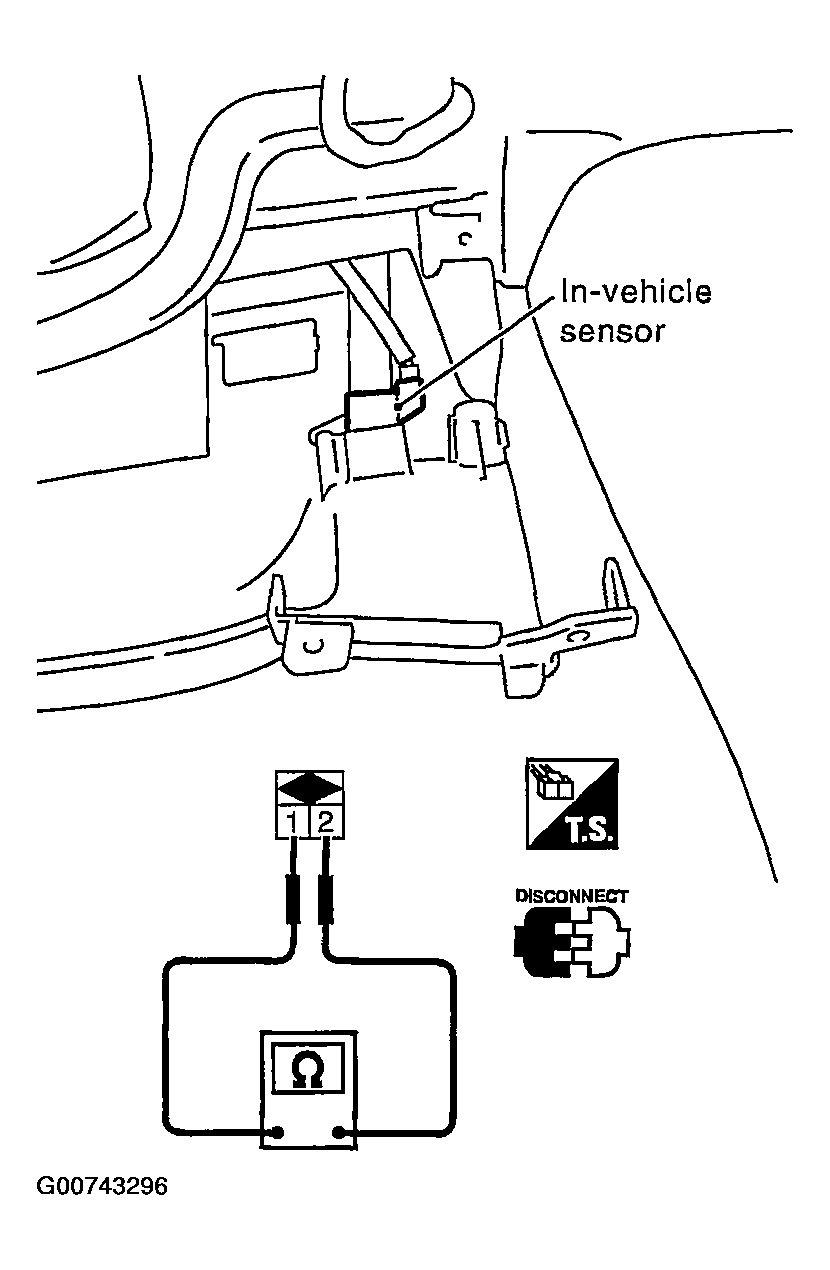

Fig 1: Measuring Resistance Between Terminals 1 & 2

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Determining In-Vehicle Sensor Resistance Based On Temperature

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, replace in-vehicle sensor.
