Disassembly And Assembly

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

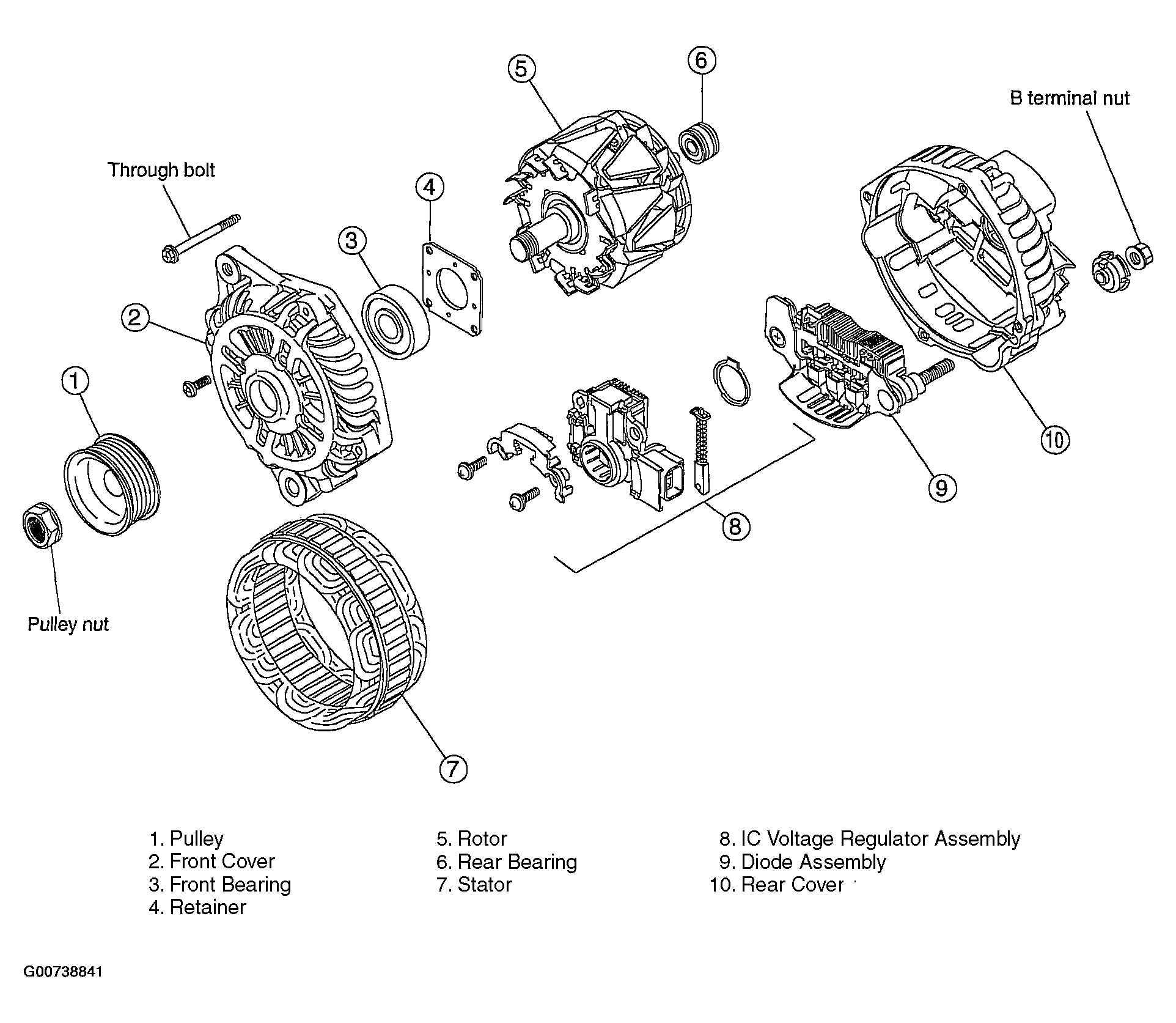

Fig 1: Disassembling & Assembling Alternator

Courtesy of NISSAN MOTOR CO., U.S.A.

Through bolt: 3.5 - 5.3 N.m (0.36 - 0.54 kg-m, 31 - 47 in-lb)

Pulley nut: 99 - 137 N.m (10.1 - 14.0 kg-m, 73 - 101 ft-lb)
