Revolution Sensor Replacement

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect electrical connector.
  2. Remove revolution sensor from A/T.
  3. Reinstall any part removed.
    • Always use new sealing parts.

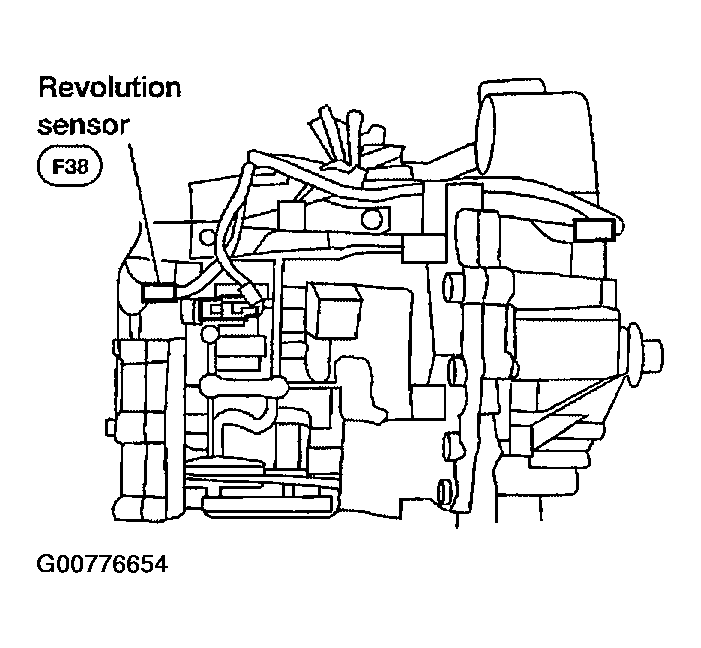

Fig 1: Revolution Sensor Replacement
G00776654Courtesy of NISSAN MOTOR CO., U.S.A.
