Control Valve Lower Body: Components

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Apply ATF to all components before installation.

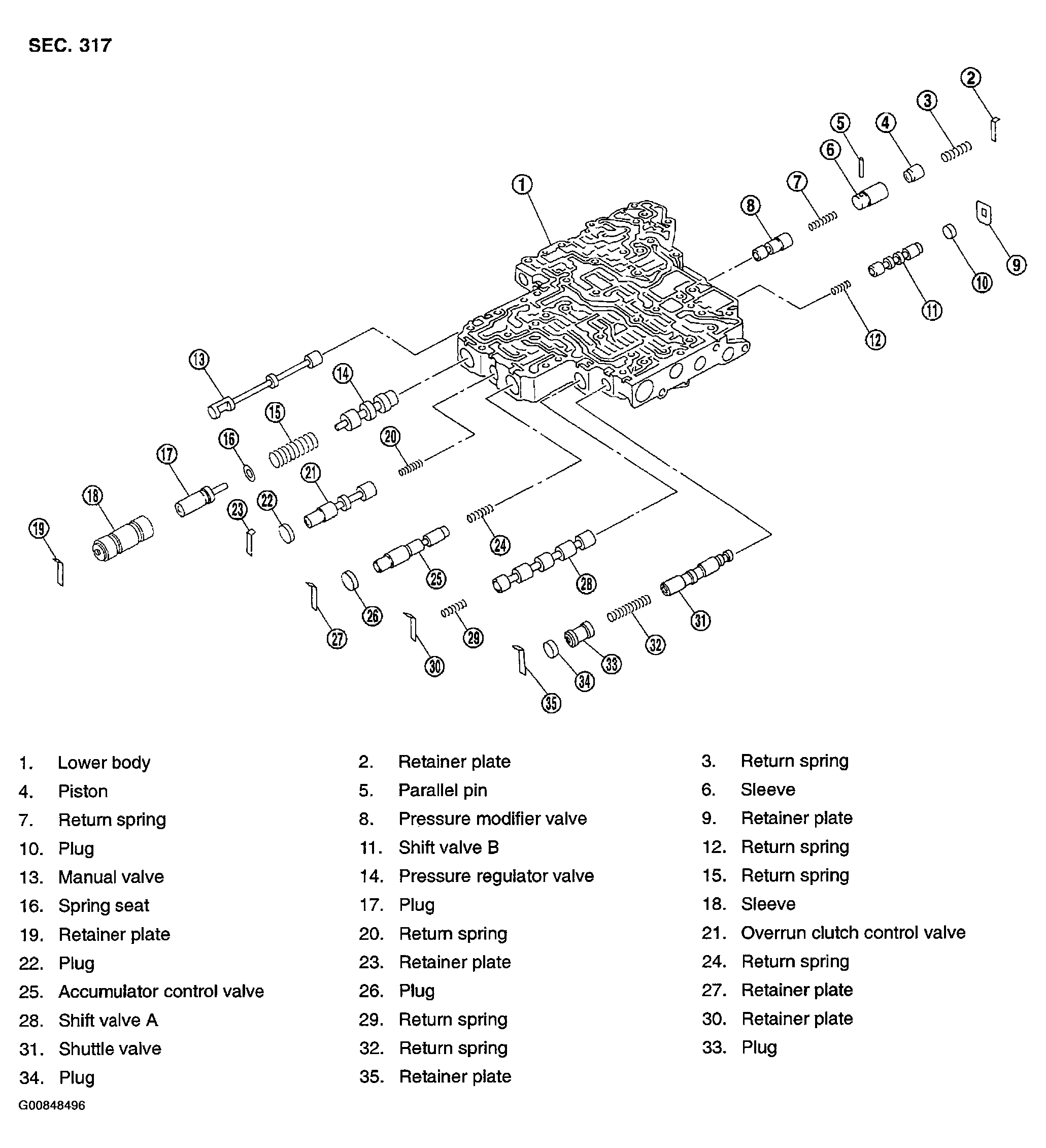

Fig 1: Control Valve Lower Body Components
G00848496Courtesy of NISSAN MOTOR CO., U.S.A.
