Shift Control: Notes

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

The clutch pressure control solenoid is controlled by the signals from the switches and sensors. Thus, the clutch pressure is adjusted to be appropriate to the engine load state and vehicle driving state. It becomes possible to finely control the clutch hydraulic pressure with high precision and a smoother shift change characteristic is attained.

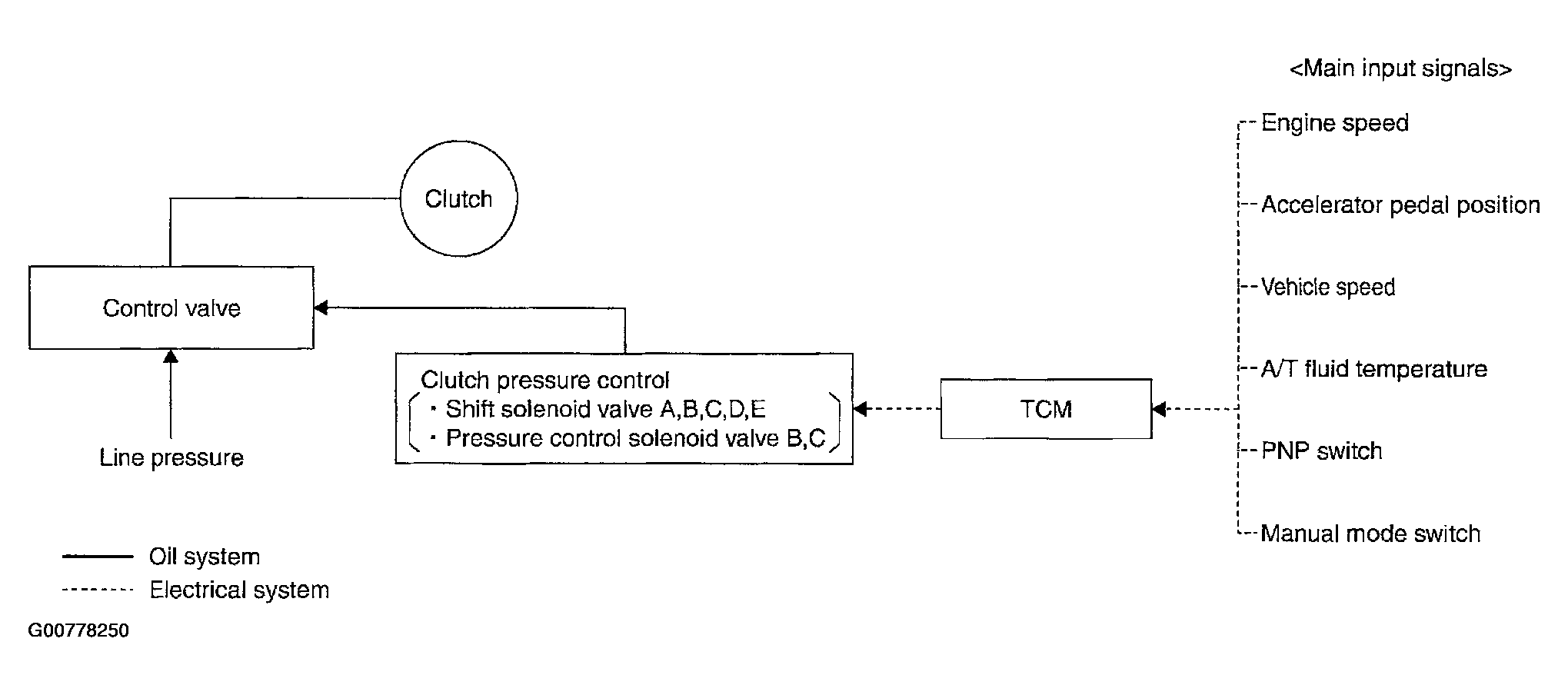

Fig 1: Shift Control
G00778250Courtesy of NISSAN MOTOR CO., U.S.A.

Basically TCM programmed for economy mode, but TCM changes to several shift schedule automatically according to specified condition.
