Control Device: Removal

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the selector knob cover downwards with fingers to reveal the selector knob clip.
  2. Remove selector knob clip outward as shown, then lift the selector knob up to remove.

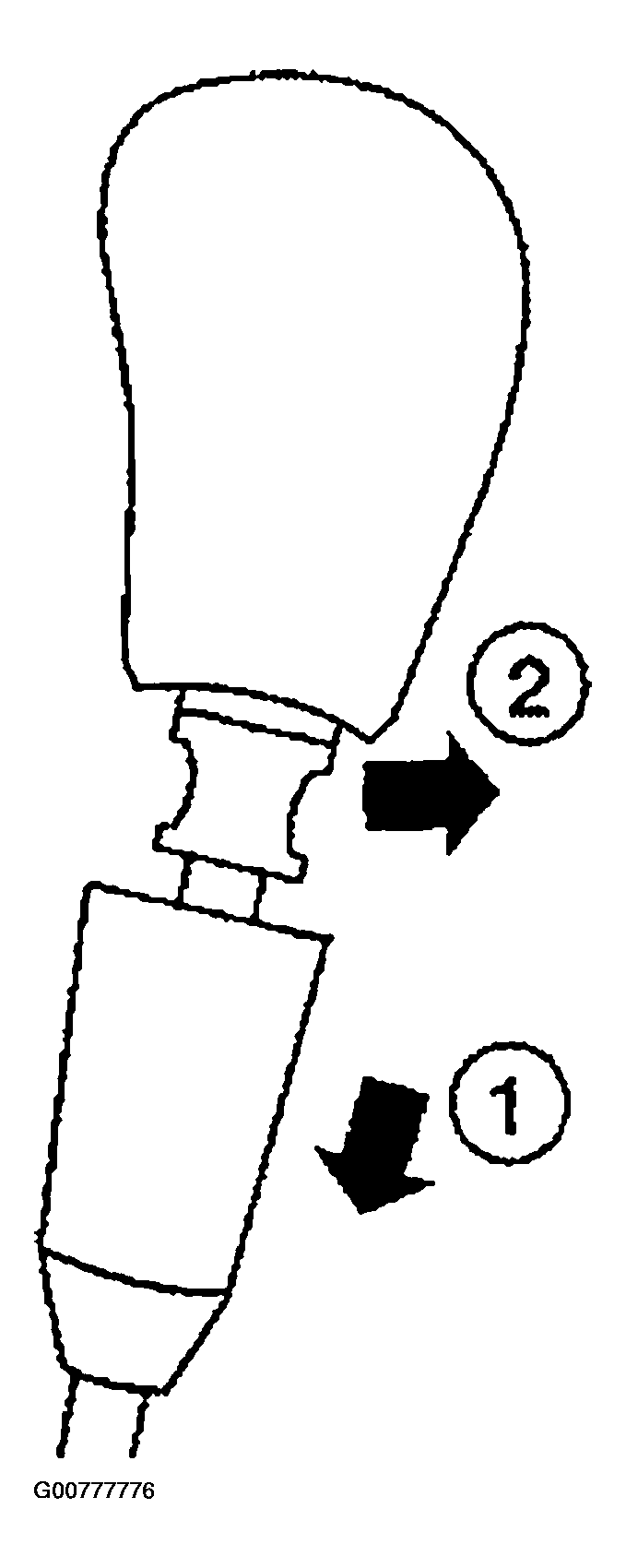

Fig 1: Selector Knob Removal
G00777776Courtesy of NISSAN MOTOR CO., U.S.A.
