ASCD Clutch Switch

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect ASCD clutch switch harness connector.

Check continuity between ASCD clutch switch terminals 1 and 2 under the following conditions.

CONDITION

Condition	Continuity
Clutch pedal: Fully released.	Should exist.
Clutch pedal: Slightly depressed.	Should not exist.

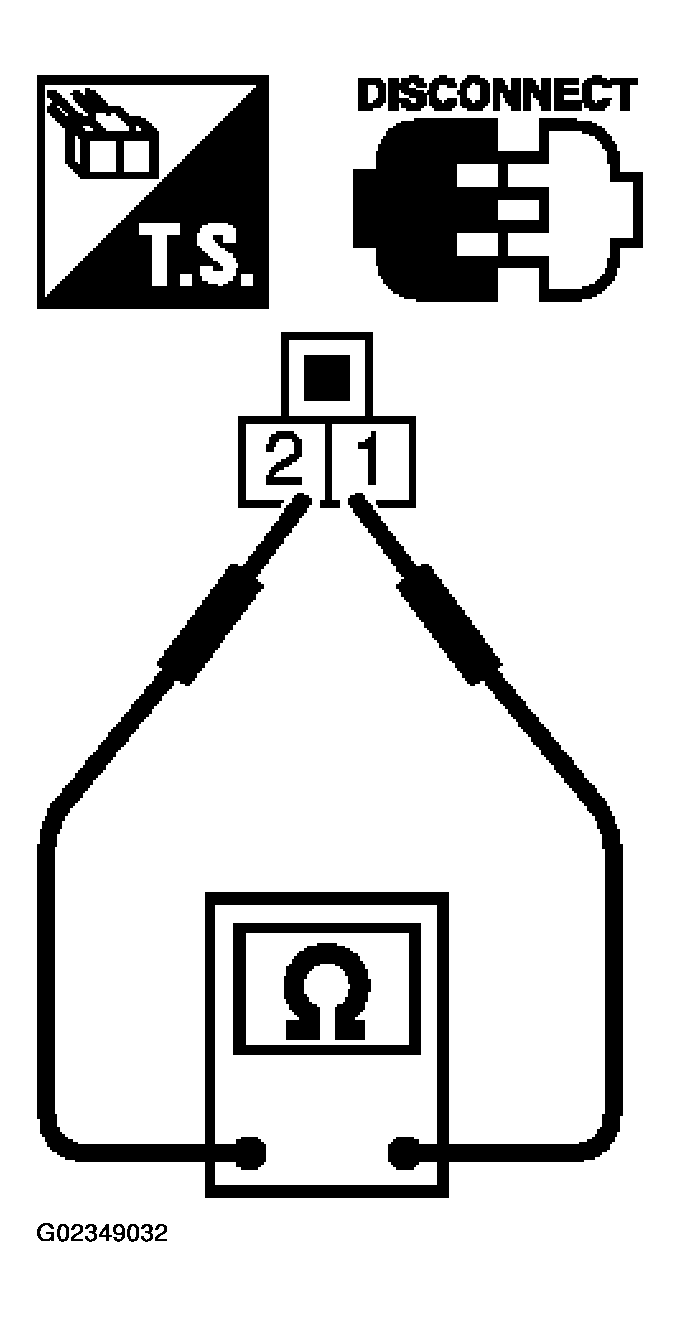

Fig 1: Checking Continuity Between ASCD Clutch Switch Terminals 1 And 2

Courtesy of NISSAN MOTOR CO., U.S.A.

If NG, adjust ASCD clutch switch installation, refer to "CLUTCH PEDAL ", and perform step 3 again.
