M/T Model

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

Remove center console. Refer to REMOVAL , "(Y) Center Console".
Disconnect harness connector.
Remove installation bolts. Remove yaw rate/side G sensor.
CAUTION:
- Do not drop or strike yaw rate/side G sensor, because it has little endurance to impact.
- Do not use power tool etc., because yaw rate/side G sensor is sensitive for the impact.

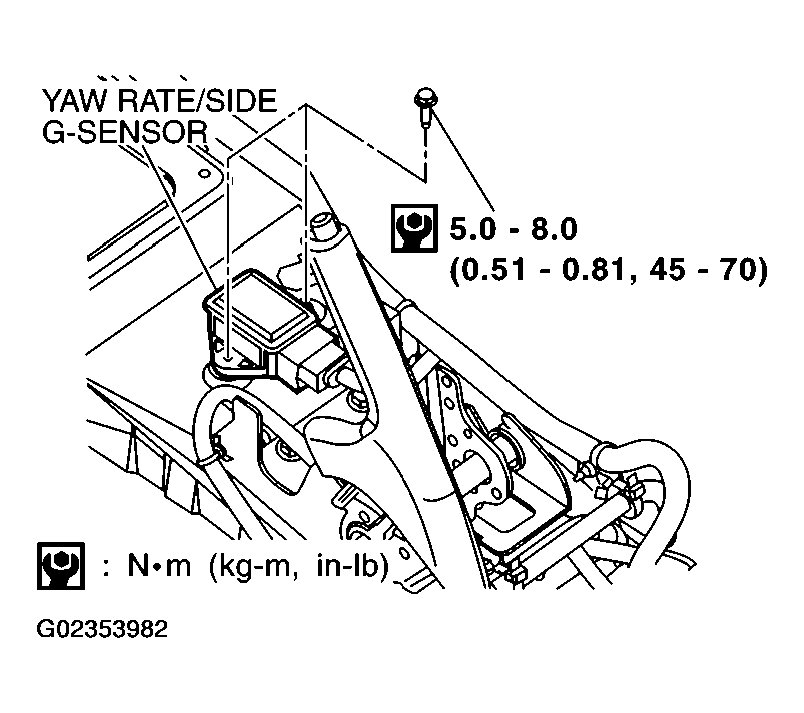

  Fig 1: G-Sensor (M/T Model) With Torque Specifications
  Courtesy of NISSAN MOTOR CO., U.S.A.
