Removal and Installation: Removal

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove instrument side panel (RH). Refer to (U) INSTRUMENT SIDE PANEL (RH/LH) , "".
  2. Remove instrument lower cover. Refer to (S) INSTRUMENT LOWER COVER , "".
  3. Remove VDC/TCS/ABS control unit.

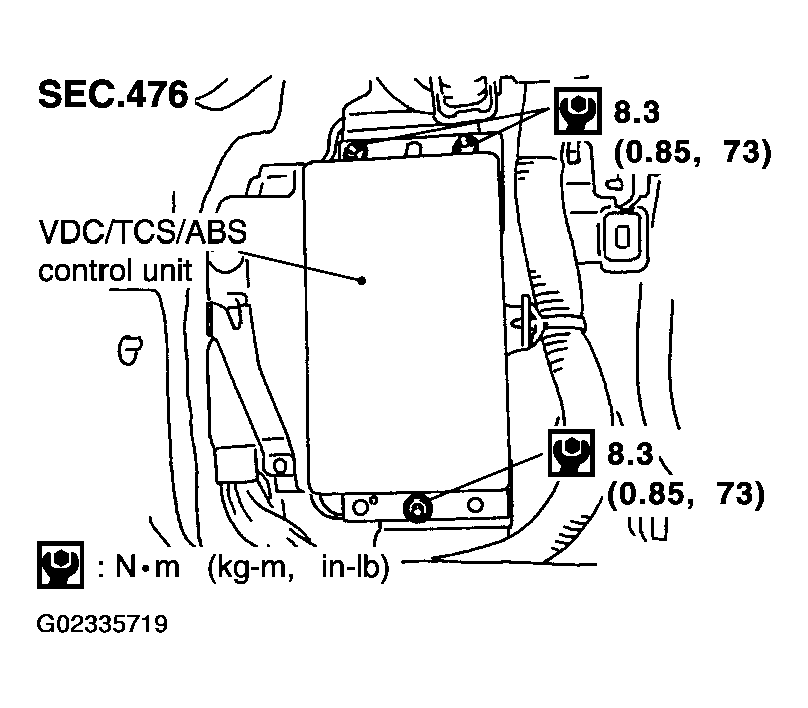

    Fig 1: Removing/Installing VDC/TCS/ABS Control Unit - With Torque Specifications
    G02335719Courtesy of NISSAN MOTOR CO., U.S.A.
