Check IPDM E/R Operation

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CHECK IPDM E/R OPERATION
With CONSULT-II

Check IPDM E/R "HORN" in "ACTIVE TEST" mode with CONSULT-II.

When "ACTIVE TEST" is performed, does horn chirp?

YES or NO
1. YES: IPDM E/R is OK.
2. NO: GO TO 2.
Fig 1: Checking IPDM E/R "HORN" In "ACTIVE TEST" Mode With CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK IPDM E/R INPUT VOLTAGE
Check voltage between IPDM E/R connector E9 terminal 51 and ground.
1. 51 (G/B) - Ground: Battery voltage
OK or NG
1. OK: Replace IPDM E/R.
2. NG: GO TO 3.

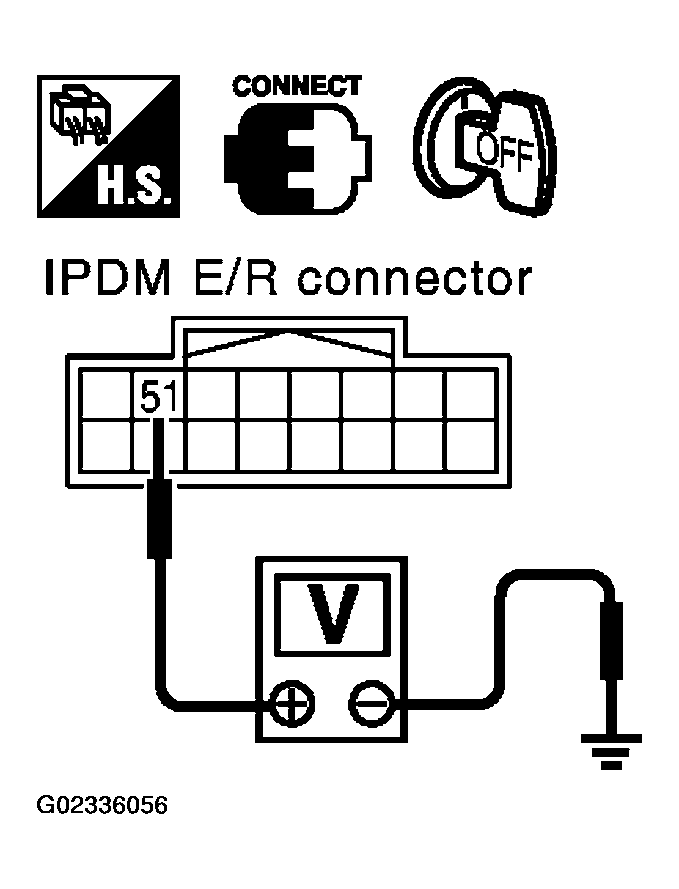

Fig 2: Checking Voltage Between IPDM E/R Connector E9 Terminal 51 And Ground
Courtesy of NISSAN MOTOR CO., U.S.A.
CHECK IPDM E/R HARNESS
1. Turn ignition switch OFF.
2. Disconnect IPDM E/R and horn relay connector.
3. Check continuity between IPDM E/R connector E9 terminal 51 and horn relay connector E20 terminal 1.
  1. 51 (G/B) - 1(G/B): Continuity should exist.
OK or NG
1. OK: Check harness connection.
2. NG: Repair or replace harness.
Fig 3: Checking Continuity Between IPDM E/R Connector E9 Terminal 51 And Horn Relay Connector E20 Terminal 1
Courtesy of NISSAN MOTOR CO., U.S.A.
