Consult-II Basic Operation

WARNING: This page is about a different car, the 2005 Infiniti G35. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector, then turn ignition switch ON.

Fig 1: Connecting CONSULT-II Converter To Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

Fig 2: Start (Nissan Based VHCL) Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, refer to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: BCM On Select System Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "HEAD LAMP" on "SELECT DIAG MODE" screen.

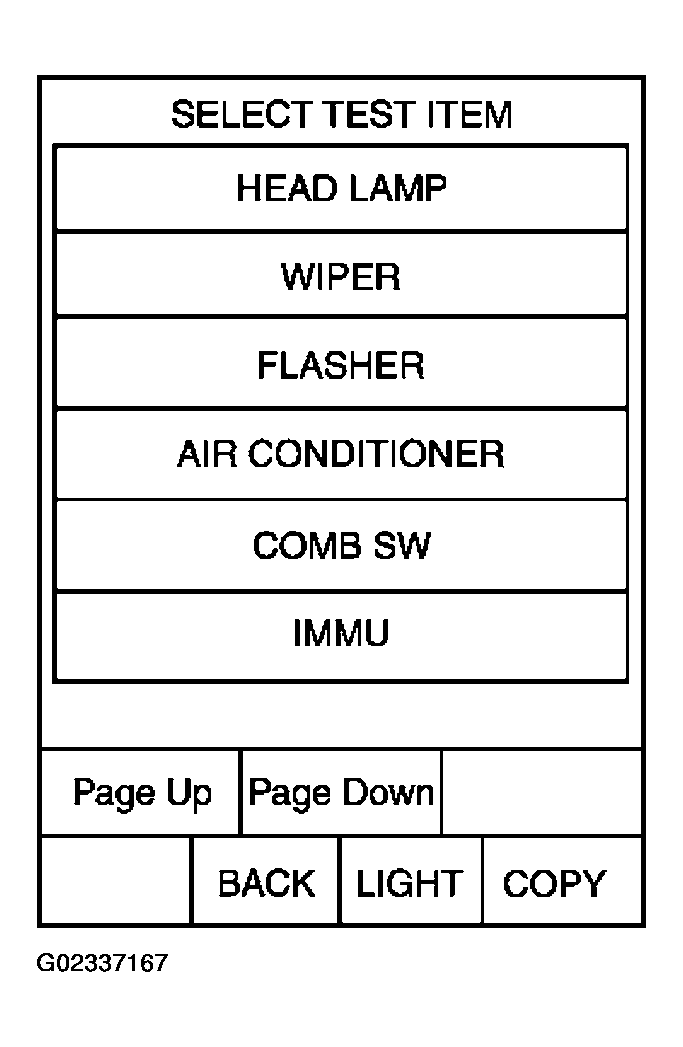

Fig 4: Head Lamp On Select Test Item Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
