CONSULT-II Basic Operation Procedure

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

With the ignition switch off, connect CONSULT-II AND CONSULT-II converter to the data link connector, and turn the ignition switch ON.

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch START (NISSAN BASED VHCL).

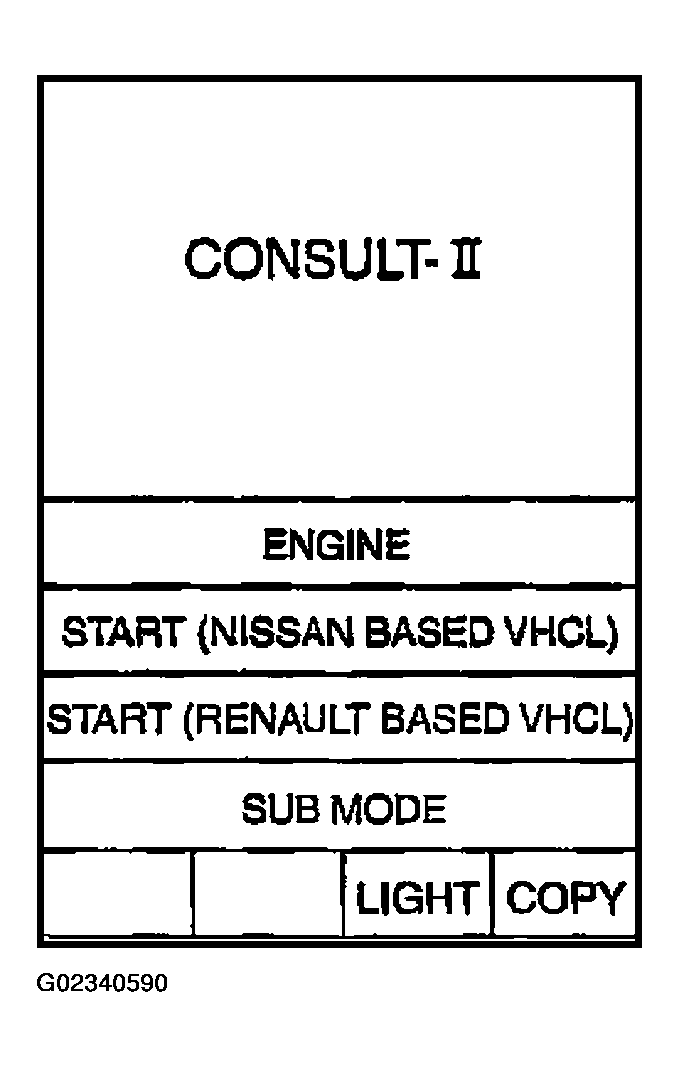

Fig 2: CONSULT-II Start (NISSAN BASED VHCL) Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch IVMS on SELECT SYSTEM screen.
If IVMS is not indicated, go to CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT .

Fig 3: CONSULT-II IVMS On Select System Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the model specification, touch either WITH SUNROOF or WITHOUT SUNROOF.
Touch OK. If the selection is wrong, touch CANCEL.

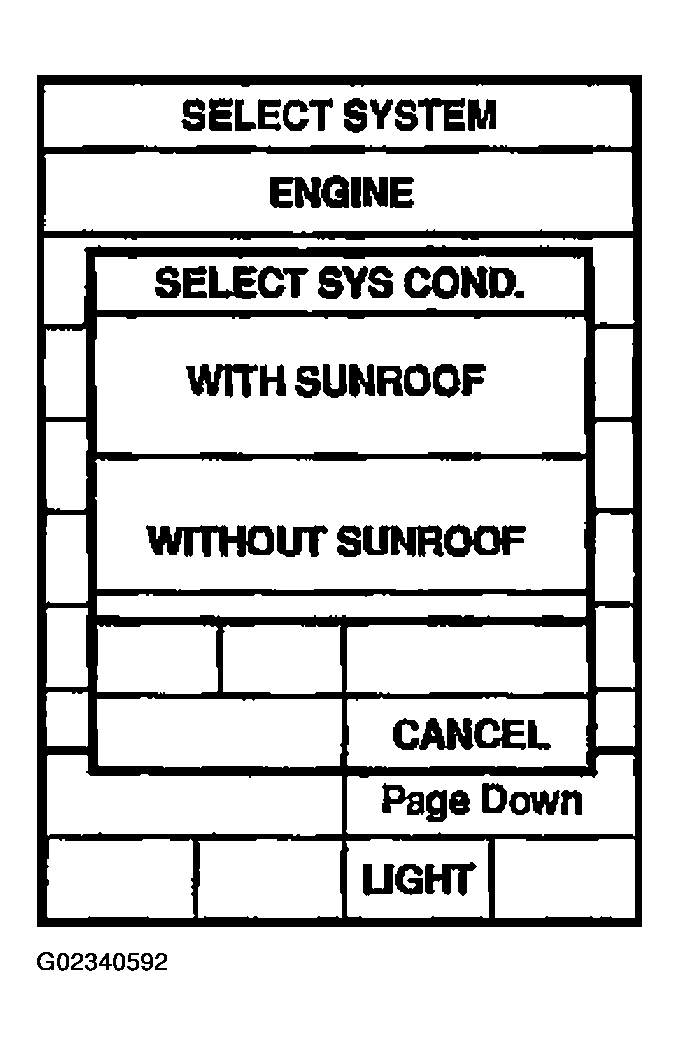

Fig 4: CONSULT-II With Sunroof Or Without Sunroof Screen Display
Courtesy of NISSAN MOTOR CO., U.S.A.
Select the desired part to be diagnosed on the SELECT TEST ITEM screen.
