Consult-II Basic Operation Procedure

WARNING: This page is about a different car, the 2004 Infiniti M45. However, it is still accessible from the selected car via links, so may be relevant.

With ignition switch OFF, connect "CONSULT-II" and "CONSULT-II CONVERTER" to data link connector, then turn ignition switch ON.

Fig 1: Identifying Hood Opener And Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

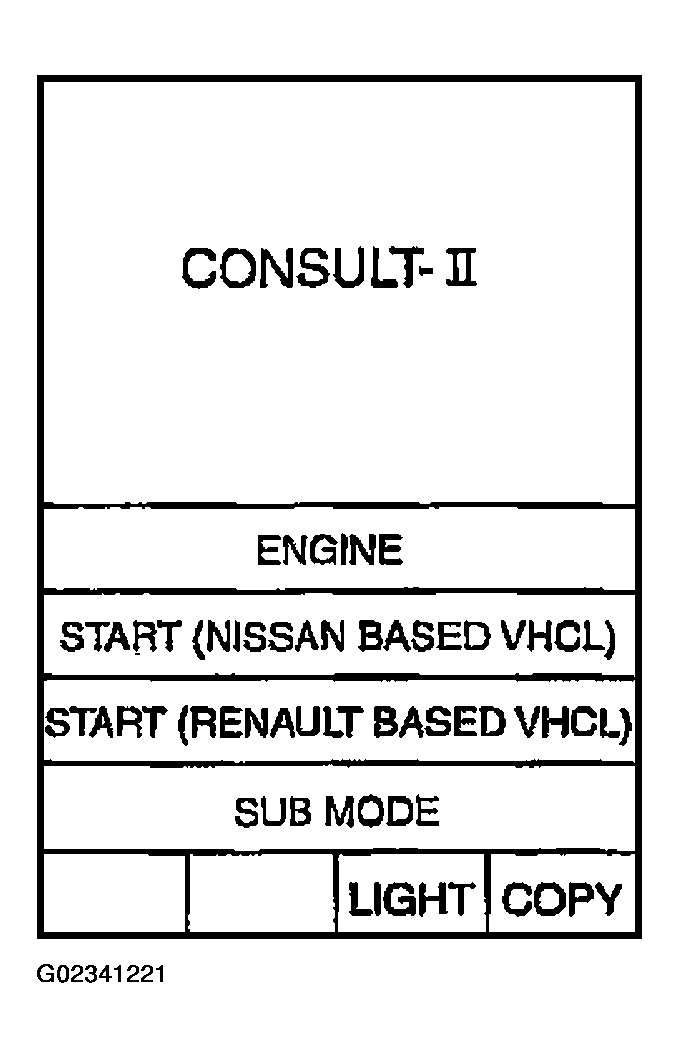

Fig 2: Consult II Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "IVMS" on "SELECT SYSTEM" screen. If "IVMS" is not indicated, refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Select System Screen
Courtesy of NISSAN MOTOR CO., U.S.A.
Check the model specification, touch either "WITH SUNROOF" or "WITHOUT SUNROOF".

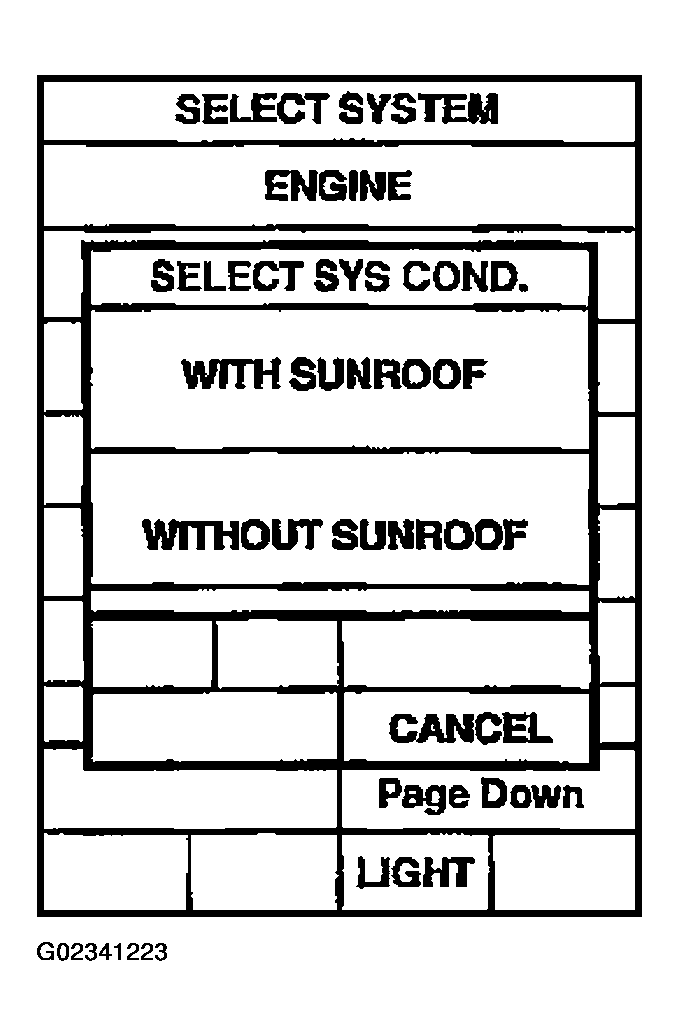

Fig 4: Select "WITH SUNROOF" Or "WITHOUT SUNROOF"
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "OK". If the selection is wrong, touch "CANCEL".
Select the desired part to be diagnosed on "SELECT TEST ITEM" screen.
